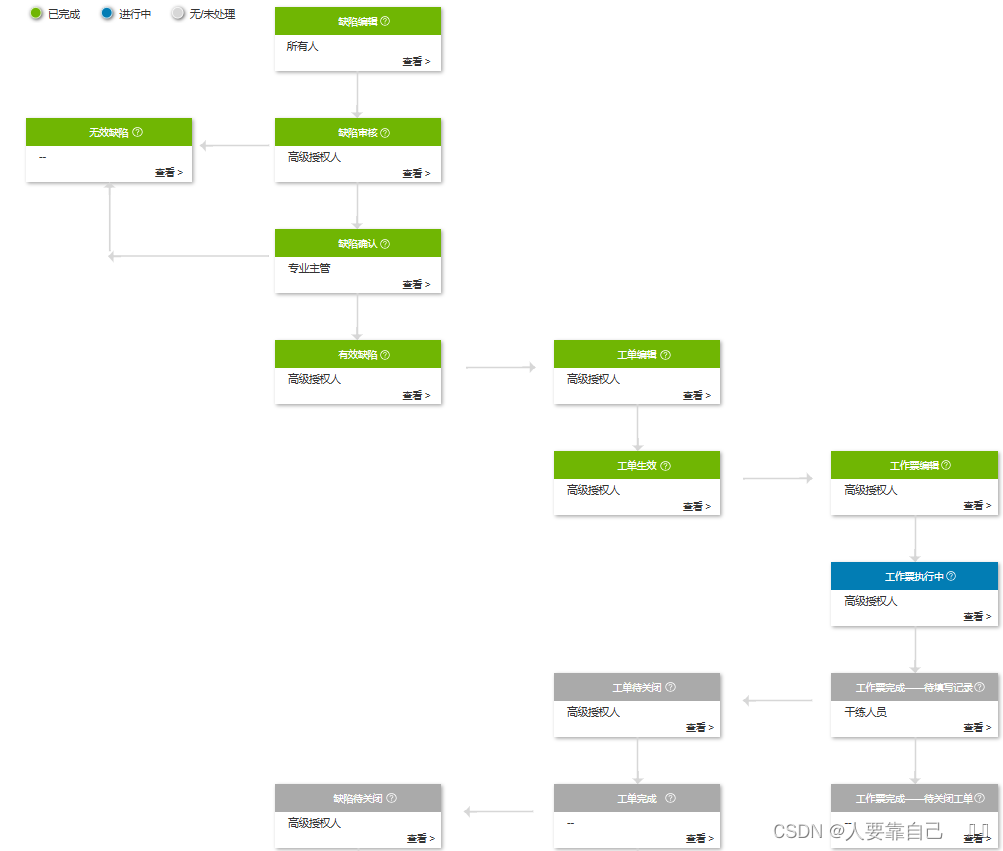

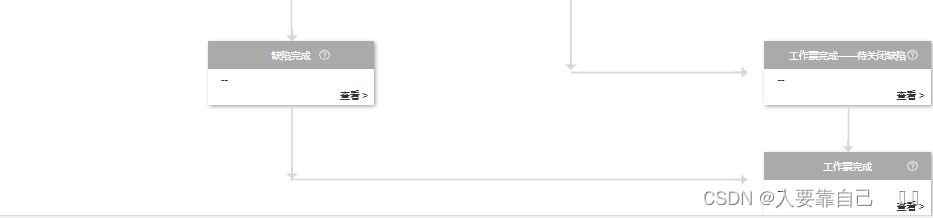

审批业务流程图如下：
文章目录
一、 enum设计
1.DefectProcessEnum 整个流程的业务逻辑Enum
/ * 整个流程的业务逻辑 */ public enum DefectProcessEnum { DEFECT_EDIT("DEFECT_EDIT", "缺陷编辑", 0), INVALID_DEFECT("INVALID_DEFECT", "无效缺陷", 1), DEFECT_REVIEW("DEFECT_REVIEW", "缺陷审核", 2), DEFECT_CONFIRM("DEFECT_CONFIRM", "缺陷确认", 3), VALID_DEFECT("VALID_DEFECT", "有效缺陷", 4), WORK_ORDER_EDIT("WORK_ORDER_EDIT", "工单编辑", 5), WORK_ORDER_ACTIVE("WORK_ORDER_ACTIVE", "工单生效", 6), JOB_TICKET_EDIT("JOB_TICKET_EDIT", "工作票编辑", 7), JOB_TICKET_IN_PROGRESS("JOB_TICKET_IN_PROGRESS", "工作票执行中", 8), JOB_TICKET_COMPLETED_RECORD_PENDING("WORK_COMPLETED_RECORD_PENDING", "工作票完成-待填写记录", 9), TICKET_COMPLETED_WAITING_CLOSE_ORDER("TICKET_COMPLETED_WAITING_CLOSE_ORDER", "工作票完成—待关闭工单", 10), WORK_ORDER_TO_BE_CLOSED("WORK_ORDER_TO_BE_CLOSED", "工单待关闭", 10), ORDER_COMPLETED("ORDER_COMPLETED", "工单完成", 11), TICKET_COMPLETED_WAITING_CLOSE_DEFECT("TICKET_COMPLETED_WAITING_CLOSE_DEFECT", "工作票完成—待关闭缺陷", 12), DEFECTS_TO_BE_CLOSED("DEFECTS_TO_BE_CLOSED", "缺陷待关闭", 12), DEFECT_COMPLETION("DEFECT_COMPLETION", "缺陷完成", 13), TICKET_COMPLETED("TICKET_COMPLETED", "工作票完成", 14); private String key;//JSON串中绑定的key值 private String value; //业务流程名称 private Integer step; //步骤 DefectProcessEnum(String key, String value, Integer step) { this.key = key; this.value = value; this.step = step; } public static String getValue(String key) { for (DefectProcessEnum stateEnum : DefectProcessEnum.values()) { if (stateEnum.key.equals(key)) { return stateEnum.value; } } return ""; } // 根据 step 获取符合条件的数据集合的方法 public static List<DefectProcessEnum> getByStep(int step) { List<DefectProcessEnum> result = new ArrayList<>(); for (DefectProcessEnum status : DefectProcessEnum.values()) { if (status.getStep() == step) { result.add(status); } } return result; } public String getKey() { return key; } public String getValue() { return value; } public Integer getStep() { return step; } } 2.TaskStatusEnum 流程状态
//流程状态 public enum TaskStatusEnum { COMPLETED(0, "已完成"), IN_PROGRESS(1, "进行中"), UNPROCESSED(2, "无/未处理"); private int code; private String description; TaskStatusEnum(int code, String description) { this.code = code; this.description = description; } public int getCode() { return code; } public String getDescription() { return description; } // 如果需要的话，可以根据code获取枚举值 public static TaskStatusEnum fromCode(int code) { for (TaskStatusEnum status : values()) { if (status.getCode() == code) { return status; } } throw new IllegalArgumentException("Invalid code: " + code); } } 3.TaskTypeEnum 以下这个是分别在创建缺陷单和工单分别使用的json，内容结构如下
/ * 两个地方可以创建流程，1，创建缺陷使用的json，2，工单创建使用的json 3.创建工作票使用的json */ public enum TaskTypeEnum { DEFECT_JSON("缺陷JSON", "{\"CURRENT_STEP\":0,\"DEFECT_EDIT\":{\"name\":\"所有人\",\"description\":\"缺陷编辑\",\"step\":0,\"status\":0},\"INVALID_DEFECT\":{\"name\":\"--\",\"description\":\"无效缺陷\",\"step\":1,\"status\":2},\"DEFECT_REVIEW\":{\"name\":\"高级授权人\",\"description\":\"缺陷审核\",\"step\":2,\"status\":2},\"DEFECT_CONFIRM\":{\"name\":\"专业主管\",\"description\":\"缺陷确认\",\"step\":3,\"status\":2},\"VALID_DEFECT\":{\"name\":\"高级授权人\",\"description\":\"有效缺陷\",\"step\":4,\"status\":2},\"WORK_ORDER_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工单编辑\",\"step\":5,\"status\":2},\"WORK_ORDER_ACTIVE\":{\"name\":\"高级授权人\",\"description\":\"工单生效\",\"step\":6,\"status\":2},\"JOB_TICKET_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工作票编辑\",\"step\":7,\"status\":2},\"JOB_TICKET_IN_PROGRESS\":{\"name\":\"高级授权人\",\"description\":\"工作票执行中\",\"step\":8,\"status\":2},\"JOB_TICKET_COMPLETED_RECORD_PENDING\":{\"name\":\"干练人员\",\"description\":\"工作票完成-待填写记录\",\"step\":9,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_ORDER\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭工单\",\"step\":10,\"status\":2},\"WORK_ORDER_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"工单待关闭\",\"step\":10,\"status\":2},\"ORDER_COMPLETED\":{\"name\":\"--\",\"description\":\"工单完成\",\"step\":11,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_DEFECT\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭缺陷\",\"step\":12,\"status\":2},\"DEFECTS_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"缺陷待关闭\",\"step\":12,\"status\":2},\"DEFECT_COMPLETION\":{\"name\":\"--\",\"description\":\"缺陷完成\",\"step\":13,\"status\":2},\"TICKET_COMPLETED\":{\"name\":\"--\",\"description\":\"工作票完成\",\"step\":14,\"status\":2}}"), WORK_ORDER_JSON("工单JSON", "{\"CURRENT_STEP\":0,\"DEFECT_EDIT\":{\"name\":\"所有人\",\"description\":\"缺陷编辑\",\"step\":0,\"status\":0},\"INVALID_DEFECT\":{\"name\":\"--\",\"description\":\"无效缺陷\",\"step\":1,\"status\":0},\"DEFECT_REVIEW\":{\"name\":\"高级授权人\",\"description\":\"缺陷审核\",\"step\":2,\"status\":0},\"DEFECT_CONFIRM\":{\"name\":\"专业主管\",\"description\":\"缺陷确认\",\"step\":3,\"status\":0},\"VALID_DEFECT\":{\"name\":\"高级授权人\",\"description\":\"有效缺陷\",\"step\":4,\"status\":0},\"WORK_ORDER_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工单编辑\",\"step\":5,\"status\":0},\"WORK_ORDER_ACTIVE\":{\"name\":\"高级授权人\",\"description\":\"工单生效\",\"step\":6,\"status\":2},\"JOB_TICKET_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工作票编辑\",\"step\":7,\"status\":2},\"JOB_TICKET_IN_PROGRESS\":{\"name\":\"高级授权人\",\"description\":\"工作票执行中\",\"step\":8,\"status\":2},\"JOB_TICKET_COMPLETED_RECORD_PENDING\":{\"name\":\"干练人员\",\"description\":\"工作票完成-待填写记录\",\"step\":9,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_ORDER\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭工单\",\"step\":10,\"status\":2},\"WORK_ORDER_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"工单待关闭\",\"step\":10,\"status\":2},\"ORDER_COMPLETED\":{\"name\":\"--\",\"description\":\"工单完成\",\"step\":11,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_DEFECT\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭缺陷\",\"step\":12,\"status\":2},\"DEFECTS_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"缺陷待关闭\",\"step\":12,\"status\":2},\"DEFECT_COMPLETION\":{\"name\":\"--\",\"description\":\"缺陷完成\",\"step\":13,\"status\":2},\"TICKET_COMPLETED\":{\"name\":\"--\",\"description\":\"工作票完成\",\"step\":14,\"status\":2}}"), WORK_TICKET_JSON("工作票JSON","{\"CURRENT_STEP\":0,\"DEFECT_EDIT\":{\"name\":\"所有人\",\"description\":\"缺陷编辑\",\"step\":0,\"status\":0},\"INVALID_DEFECT\":{\"name\":\"--\",\"description\":\"无效缺陷\",\"step\":1,\"status\":0},\"DEFECT_REVIEW\":{\"name\":\"高级授权人\",\"description\":\"缺陷审核\",\"step\":2,\"status\":0},\"DEFECT_CONFIRM\":{\"name\":\"专业主管\",\"description\":\"缺陷确认\",\"step\":3,\"status\":0},\"VALID_DEFECT\":{\"name\":\"高级授权人\",\"description\":\"有效缺陷\",\"step\":4,\"status\":0},\"WORK_ORDER_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工单编辑\",\"step\":5,\"status\":0},\"WORK_ORDER_ACTIVE\":{\"name\":\"高级授权人\",\"description\":\"工单生效\",\"step\":6,\"status\":0},\"JOB_TICKET_EDIT\":{\"name\":\"高级授权人\",\"description\":\"工作票编辑\",\"step\":7,\"status\":0},\"JOB_TICKET_IN_PROGRESS\":{\"name\":\"高级授权人\",\"description\":\"工作票执行中\",\"step\":8,\"status\":2},\"JOB_TICKET_COMPLETED_RECORD_PENDING\":{\"name\":\"干练人员\",\"description\":\"工作票完成-待填写记录\",\"step\":9,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_ORDER\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭工单\",\"step\":10,\"status\":2},\"WORK_ORDER_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"工单待关闭\",\"step\":10,\"status\":2},\"ORDER_COMPLETED\":{\"name\":\"--\",\"description\":\"工单完成\",\"step\":11,\"status\":2},\"TICKET_COMPLETED_WAITING_CLOSE_DEFECT\":{\"name\":\"--\",\"description\":\"工作票完成—待关闭缺陷\",\"step\":12,\"status\":2},\"DEFECTS_TO_BE_CLOSED\":{\"name\":\"高级授权人\",\"description\":\"缺陷待关闭\",\"step\":12,\"status\":2},\"DEFECT_COMPLETION\":{\"name\":\"--\",\"description\":\"缺陷完成\",\"step\":13,\"status\":2},\"TICKET_COMPLETED\":{\"name\":\"--\",\"description\":\"工作票完成\",\"step\":14,\"status\":2}}"); private String key; private String value; TaskTypeEnum(String key, String value) { this.key = key; this.value = value; } public String getValue() { return value; } public String getKey() { return key; } } json示例描述
{ “CURRENT_STEP”：0，//当前的步骤，每走一步则进行更新该数据 "DEFECT_EDIT": { //DEFECT_EDIT 字段是和DefectProcessEnum 中的key是匹配的 "name": "所有人", //页面展示使用 "description": "缺陷编辑", //页面展示使用 "step": 0, //当前的步骤的序号 "status": 0 //当前的状态使用TaskStatusEnum }，................ } 二、设计到的数据库表
1.wn_defect 缺陷单表 2.wn_work_order 工单表 3.wn_permit_to_work 工作票表 以上三个表分别添加一个字段flow_json
三、现有逻辑：
一个缺陷可以绑定多个工单，一个工单可以创建多个工作票
四、根据以上现有逻辑业务流程设计思路如下：
缺陷单业务逻辑：
1.在创建缺陷单时获取TaskTypeEnum 中的DEFECT_JSON 这个的value数据存入到flow_json中
2.对应缺陷单审批每审批一次都需要更新flow_json这个字段中的JSON对应流程的状态
工单业务逻辑
1.创建工单绑定缺陷，将缺陷中的json赋值到工单中，并且修改对应的状态更新到当前创建的工单数据中
2.直接创建工单不绑定缺陷则获取TaskTypeEnum 中的WORK_ORDER_JSON 这个value数据存入到flow_json中
工作票业务逻辑
1.根据工单创建工作票时，获取到TaskTypeEnum 中的WORK_TICKET_JSON参数里的json修改对应步骤的状态存入flow_json字中。
2.新增完成工作票以后更新工单，缺陷单最新状态（跑的最慢的那个状态），根据工单查询该工单绑定的所有工作票，找到json中CURRENT_STEP这个字段最小值的json赋值到工单json以及工作票 json中
如果设计到删除工作票，和删除工单，逻辑同上例如，删除工作票，取工单下绑定的工作票列表找到json中CURRENT_STEP这个字段最小值的json赋值到工单json以及工作票 json中
五、补充后续核心Utils
package wnoa.utils; import cn.hutool.core.util.ObjectUtil; import com.alibaba.fastjson.JSON; import com.alibaba.fastjson.JSONObject; import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper; import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper; import com.baomidou.mybatisplus.core.conditions.update.LambdaUpdateWrapper; import org.apache.commons.lang3.StringUtils; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; import wnoa.base.UserInfo; import wnoa.entity.WnDefectEntity; import wnoa.entity.WnPermitToWorkEntity; import wnoa.entity.WnWorkOrderEntity; import wnoa.enums.DefectProcessEnum; import wnoa.enums.WorkOrderEnum; import wnoa.exception.DataException; import wnoa.mapper.WnDefectMapper; import wnoa.mapper.WnPermitToWorkMapper; import wnoa.mapper.WnWorkOrderMapper; import wnoa.service.*; import wnoa.util.UserProvider; import java.util.*; / * 业务流程工具类 * * @author 23882 */ @Service public class WnBusinessFlowUtils {
@Autowired private WnDocumentMakeService wnDocumentMakeService; @Autowired private UserProvider userProvider; @Autowired //工作票Mapper private WnPermitToWorkMapper wnPermitToWorkMapper; @Autowired //工作票service private WnPermitToWorkService wnPermitToWorkService; @Autowired //工单service private WnWorkOrderService wnWorkOrderService; @Autowired //工单maper private WnWorkOrderMapper wnWorkOrderMapper; @Autowired //缺陷单Service private WnDefectService wnDefectService; @Autowired //缺陷单Mapper private WnDefectMapper wnDefectMapper; @Autowired private WnFlowTransferRecordsService wnFlowTransferRecordsService; / * 审批流程工具类 * * @param key DefectProcessEnum 中的key * @param id 要操作的数据id * @param status TaskTypeEnum 中的key */ public void businessFlow(String key, String id, String status) {
if (StringUtils.isEmpty(id)) {
throw new DataException("操作的id不允许为空！"); } String flowJson = StringUtils.EMPTY; //根据不同的状态获取不同的数据,如果id可以查询到数据则使用id查询回来的json进行操作，如果id查询不回来则使用初始化的json DefectProcessEnum.TaskTypeEnum taskTypeEnumValue = DefectProcessEnum.TaskTypeEnum.getTaskTypeEnumValue(status); if (null != taskTypeEnumValue) {
switch (taskTypeEnumValue) {
case DEFECT_JSON: System.out.println("缺陷JSON"); break; case WORK_ORDER_JSON: WnWorkOrderEntity wnWorkOrderEntity = wnWorkOrderMapper.selectById(id); if (null != wnWorkOrderEntity) {
flowJson = StringUtils.isNotEmpty(wnWorkOrderEntity.getFlowJson()) ? wnWorkOrderEntity.getFlowJson() : taskTypeEnumValue.getValue(); } else {
flowJson = taskTypeEnumValue.getValue(); } System.out.println("工单JSON"); break; case WORK_TICKET_JSON: WnPermitToWorkEntity wnPermitToWorkEntity = wnPermitToWorkMapper.selectById(id); if (null != wnPermitToWorkEntity) {
flowJson = StringUtils.isNotEmpty(wnPermitToWorkEntity.getFlowJson()) ? wnPermitToWorkEntity.getFlowJson() : taskTypeEnumValue.getValue(); } System.out.println("工作票JSON"); break; } } if (StringUtils.isEmpty(flowJson)) {
throw new DataException("要修改的流程id暂未查询到流程数据"); } //根据不同的key执行不同的逻辑 DefectProcessEnum defectProcessEnumValue = DefectProcessEnum.getDefectProcessEnumValue(key); if (null != defectProcessEnumValue) {
switch (defectProcessEnumValue) {
case DEFECT_EDIT: System.out.println("缺陷编辑"); break; case INVALID_DEFECT: System.out.println("无效缺陷"); break; case DEFECT_REVIEW: System.out.println("缺陷审核"); break; case DEFECT_CONFIRM: System.out.println("缺陷确认"); break; case VALID_DEFECT: System.out.println("有效缺陷"); break; case WORK_ORDER_EDIT: updateFlowJsonOrder(id, flowJson, WorkOrderEnum.WORK_ORDER_EDIT.getValue()); System.out.println("工单编辑"); break; case WORK_ORDER_ACTIVE: updateFlowJsonOrder(id, operateJSON(defectProcessEnumValue, flowJson),WorkOrderEnum.WORK_ORDER_ACTIVE.getValue()); System.out.println("工单生效"); break; case JOB_TICKET_EDIT: //工作票编辑,初始化json updateFlowJson(id, flowJson, defectProcessEnumValue.getValue()); System.out.println("工作票编辑"); break; case JOB_TICKET_IN_PROGRESS: //根据id修改json,更新工单以及缺陷单最慢的json updateFlowJson(id, operateJSON(defectProcessEnumValue, flowJson), defectProcessEnumValue.getValue()); System.out.println("工作票执行中"); break; case JOB_TICKET_COMPLETED_RECORD_PENDING: //根据id修改json,更新工单以及缺陷单最慢的json updateFlowJson(id, operateJSON(defectProcessEnumValue, flowJson), defectProcessEnumValue.getValue()); System.out.println("工作票完成-待填写记录"); break; case TICKET_COMPLETED_WAITING_CLOSE_ORDER: case WORK_ORDER_TO_BE_CLOSED: updateFlowJson(id, operateJSON(defectProcessEnumValue, flowJson), defectProcessEnumValue.getValue()); System.out.println("工作票完成—待关闭工单"); break; case ORDER_COMPLETED: System.out.println("工单完成"); break; case TICKET_COMPLETED_WAITING_CLOSE_DEFECT: case DEFECTS_TO_BE_CLOSED: System.out.println("工作票完成—待关闭缺陷"); break; case DEFECT_COMPLETION: System.out.println("缺陷完成"); break; case TICKET_COMPLETED: System.out.println("工作票完成"); break; default: throw new IllegalArgumentException("Unknown task status: " + status); } } } / * 以下为状态流转核心方法 * @param defectProcessEnumValue 当前要操作的业务Enum * @param flowJson 上一步的json * @return */ private String operateJSON(DefectProcessEnum defectProcessEnumValue, String flowJson) {
JSONObject flowJsonO = JSON.parseObject(flowJson); //根据json中的CURRENT_STEP这个字段判断当前这一步，将他修改成已完成 Integer currentStep = flowJsonO.getInteger("CURRENT_STEP"); List<DefectProcessEnum> currentNyStep = DefectProcessEnum.getByStep(currentStep); if (!currentNyStep.isEmpty()) {
currentNyStep.forEach(defectProcessEnum -> {
JSONObject jsonObject = flowJsonO.getJSONObject(defectProcessEnum.getKey()); jsonObject.put("status", DefectProcessEnum.TaskStatusEnum.COMPLETED.getCode()); }); } //解析到当要修改的这一步json List<DefectProcessEnum> lowerByStep = DefectProcessEnum.getByStep(defectProcessEnumValue.getStep()); if (!lowerByStep.isEmpty()) {
lowerByStep.forEach(defectProcessEnum -> {
JSONObject jsonObject = flowJsonO.getJSONObject(defectProcessEnum.getKey()); jsonObject.put("status", DefectProcessEnum.TaskStatusEnum.IN_PROGRESS.getCode()); }); flowJsonO.put("CURRENT_STEP", defectProcessEnumValue.getStep()); } return flowJsonO.toJSONString(); } / * 工作票修改json * * @param id 要修改的工作票数据id * @param flowJson 要修改的json */ private void updateFlowJson(String id, String flowJson, String nodeName) {
//缺陷单编号 String defectNumber = StringUtils.EMPTY; //工单id String workOrderId = StringUtils.EMPTY; //0缺陷单1工单2工作票 Integer type = 2; //执行逻辑 UserInfo userInfo = userProvider.get(); LambdaUpdateWrapper<WnPermitToWorkEntity> wnPermitToWorkEntityUpdateWrapper = new LambdaUpdateWrapper<>(); wnPermitToWorkEntityUpdateWrapper.eq(WnPermitToWorkEntity::getId, id); wnPermitToWorkEntityUpdateWrapper.set(WnPermitToWorkEntity::getFlowJson, flowJson); wnPermitToWorkEntityUpdateWrapper.set(WnPermitToWorkEntity::getLastModifyTime, new Date()); wnPermitToWorkEntityUpdateWrapper.set(WnPermitToWorkEntity::getLastModifyUserId, userInfo.getUserId()); wnPermitToWorkService.update(wnPermitToWorkEntityUpdateWrapper); //将最慢的工作票json复制到工单和缺陷单中 LambdaQueryWrapper<WnPermitToWorkEntity> wnPermitToWorkEntityQueryWrapper = new LambdaQueryWrapper<>(); wnPermitToWorkEntityQueryWrapper.eq(WnPermitToWorkEntity::getId, id); WnPermitToWorkEntity wnPermitToWorkEntity = wnPermitToWorkMapper.selectOne(wnPermitToWorkEntityQueryWrapper); if (null != wnPermitToWorkEntity) {
//赋值工单id workOrderId = wnPermitToWorkEntity.getWorkOrderId(); LambdaQueryWrapper<WnWorkOrderEntity> wnWorkOrderEntityQueryWrapper = new LambdaQueryWrapper<>(); wnWorkOrderEntityQueryWrapper.eq(WnWorkOrderEntity::getId, wnPermitToWorkEntity.getWorkOrderId()); //根据工单id查询该工单下绑定的所有工作票 List<WnWorkOrderEntity> wnWorkOrderEntities = wnWorkOrderMapper.selectList(wnWorkOrderEntityQueryWrapper); if (!wnWorkOrderEntities.isEmpty()) {
//查找最慢的工作票json HashMap<Integer, String> Map = new HashMap<>(); wnWorkOrderEntities.forEach(wnPermitToWorkEntity1 -> {
JSONObject jsonObject = JSON.parseObject(wnPermitToWorkEntity1.getFlowJson()); if (null != jsonObject) {
Integer step = jsonObject.getInteger("CURRENT_STEP"); if (null != step) {
Map.put(step, wnPermitToWorkEntity1.getFlowJson()); } } }); //根据map中的key排序找到key最小的哪一个 List<Integer> list = new ArrayList<>(Map.keySet()); Collections.sort(list); if (!list.isEmpty()) {
Integer min = list.get(0); String flowJson1 = Map.get(min); //更新工单json LambdaUpdateWrapper<WnWorkOrderEntity> wnWorkOrderEntityUpdateWrapper = new LambdaUpdateWrapper<>(); wnWorkOrderEntityUpdateWrapper.eq(WnWorkOrderEntity::getId, wnPermitToWorkEntity.getWorkOrderId()); wnWorkOrderEntityUpdateWrapper.set(WnWorkOrderEntity::getFlowJson, flowJson1); wnWorkOrderEntityUpdateWrapper.set(WnWorkOrderEntity::getLastmodifytime, new Date()); wnWorkOrderEntityUpdateWrapper.set(WnWorkOrderEntity::getLastmodifyuserid, userInfo.getUserId()); wnWorkOrderService.update(wnWorkOrderEntityUpdateWrapper); //根据工单找到缺陷单编号 LambdaQueryWrapper<WnWorkOrderEntity> wnDefectEntityQueryWrapper = new LambdaQueryWrapper<>(); wnDefectEntityQueryWrapper.eq(WnWorkOrderEntity::getId, wnPermitToWorkEntity.getWorkOrderId()); WnWorkOrderEntity wnWorkOrderEntity = wnWorkOrderMapper.selectOne(wnDefectEntityQueryWrapper); if (wnWorkOrderEntity != null) {
//缺陷单编号不为空则更新缺陷单json String defectOrderNumber = wnWorkOrderEntity.getDefectOrderNumber(); if (StringUtils.isNotEmpty(defectOrderNumber)) {
//赋值缺陷单编号 defectNumber = defectOrderNumber; //更新缺陷单json LambdaUpdateWrapper<WnDefectEntity> wnDefectEntityUpdateWrapper = new LambdaUpdateWrapper<>(); wnDefectEntityUpdateWrapper.eq(WnDefectEntity::getDefectNumber, wnPermitToWorkEntity.getDefectOrderNumber()); wnDefectEntityUpdateWrapper.set(WnDefectEntity::getFlowJson, flowJson1); wnDefectEntityUpdateWrapper.set(WnDefectEntity::getLastmodifytime, new Date()); wnDefectEntityUpdateWrapper.set(WnDefectEntity::getLastmodifyuserid, userInfo.getUserId()); wnDefectService.update(wnDefectEntityUpdateWrapper); } } } } //记录流程状态 wnFlowTransferRecordsService.saveTransfer(defectNumber, workOrderId, id, nodeName, type); } } } 1.核心util方法入参示例

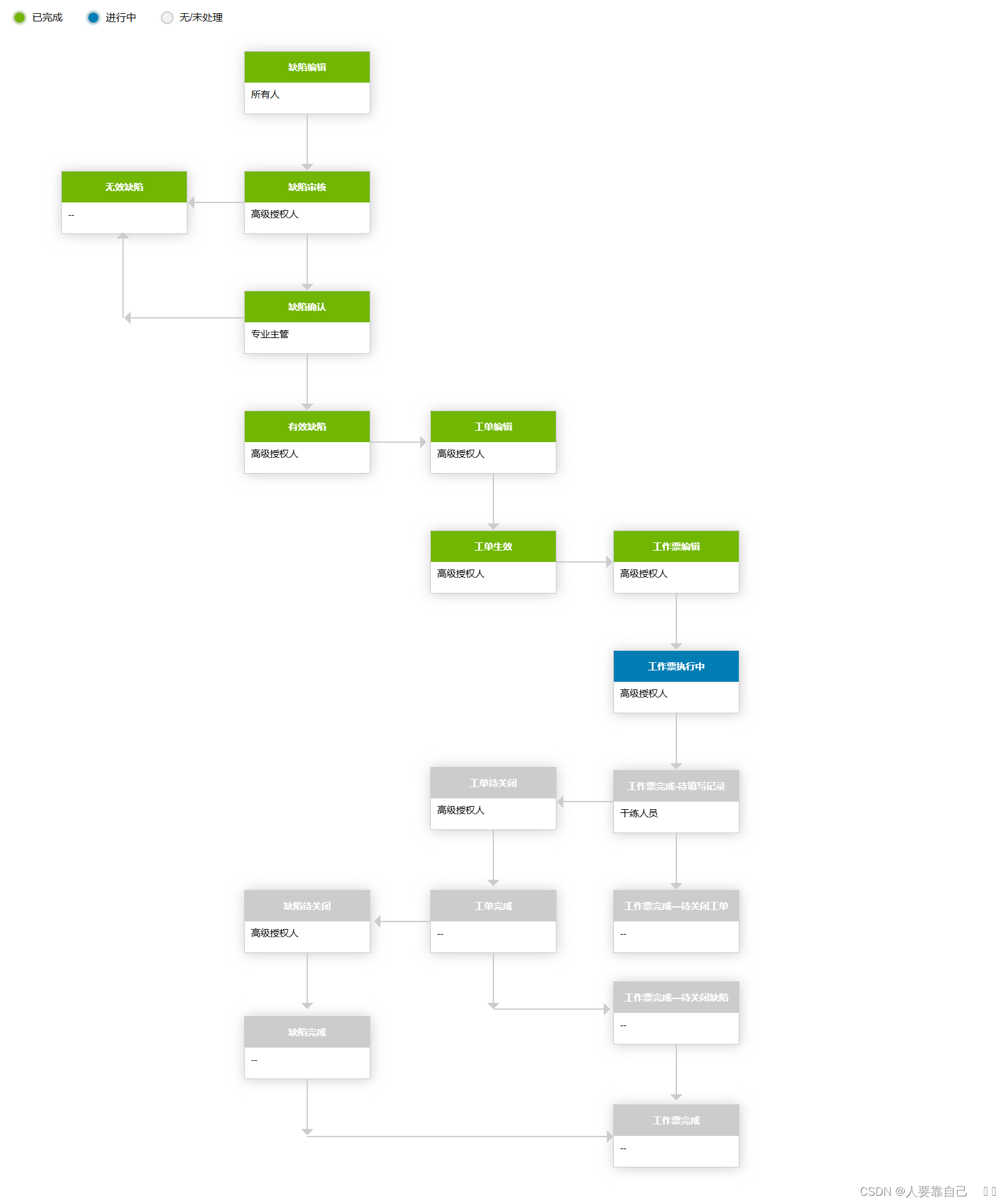

businessFlow(DefectProcessEnum.JOB_TICKET_IN_PROGRESS.getKey(),"123",DefectProcessEnum.TaskTypeEnum.WORK_TICKET_JSON.getKey()); 六、前端代码如下
<template> <div class="box"> <div class="list"> <div><p class="green"></p><p>已完成</p></div> <div><p class="blue"></p><p>进行中</p></div> <div><p class="grey"></p><p>无/未处理</p></div> </div> <div class="confirmToVoidLeft"></div> <div class="confirmToVoidTop"></div> <div class="finishTobeClosed"></div> <div class="finishToFinish"></div> <!-- 缺陷编辑--> <flowChart style="transform: translateY(20px) translateX(400px)" :cont="flowData.DEFECT_EDIT" :is-show="{bottom:true}"></flowChart> <!-- 缺陷审核--> <flowChart style="transform: translateY(110px) translateX(400px)" :cont="flowData.DEFECT_REVIEW" :is-show="{left:true,bottom:true}"></flowChart> <!-- 无效缺陷--> <flowChart style="transform: translateY(10px) translateX(110px)" :cont="flowData.INVALID_DEFECT" :is-show="{}"></flowChart> <!-- 缺陷确认--> <flowChart style="transform: translateY(100px) translateX(400px)" :cont="flowData.DEFECT_CONFIRM" :is-show="{bottom:true}"></flowChart> <!-- 有效缺陷--> <flowChart style="transform: translateY(190px) translateX(400px)" :cont="flowData.VALID_DEFECT" :is-show="{right:true}"></flowChart> <!-- 工单编辑--> <flowChart style="transform: translateY(90px) translateX(695px)" :cont="flowData.WORK_ORDER_EDIT" :is-show="{bottom:true}"></flowChart> <!-- 工单生效--> <flowChart style="transform: translateY(180px) translateX(695px)" :cont="flowData.WORK_ORDER_ACTIVE" :is-show="{right:true}"></flowChart> <!-- 工作票编辑--> <flowChart style="transform: translateY(80px) translateX(985px)" :cont="flowData.JOB_TICKET_EDIT" :is-show="{bottom:true}"></flowChart> <!-- 工作票执行中--> <flowChart style="transform: translateY(170px) translateX(985px)" :cont="flowData.JOB_TICKET_IN_PROGRESS" :is-show="{bottom:true}"></flowChart> <!-- 工作票完成-待填写记录--> <flowChart style="transform: translateY(260px) translateX(985px)" :cont="flowData.JOB_TICKET_COMPLETED_RECORD_PENDING" :is-show="{bottom:true,left:true}"></flowChart> <!-- 工作票完成-待关闭工单--> <flowChart style="transform: translateY(350px) translateX(985px)" :cont="flowData.TICKET_COMPLETED_WAITING_CLOSE_ORDER" :is-show="{}"></flowChart> <!-- 工作票完成-待关闭缺陷--> <flowChart style="transform: translateY(395px) translateX(985px)" :cont="flowData.TICKET_COMPLETED_WAITING_CLOSE_DEFECT" :is-show="{bottom:true}"></flowChart> <!-- 工作票完成--> <flowChart style="transform: translateY(490px) translateX(985px)" :cont="flowData.TICKET_COMPLETED" :is-show="{}"></flowChart> <!-- 工单待关闭--> <flowChart style="transform: translateY(-145px) translateX(695px)" :cont="flowData.WORK_ORDER_TO_BE_CLOSED" :is-show="{bottom:true}"></flowChart> <!-- 工单完成--> <flowChart style="transform: translateY(-50px) translateX(695px)" :cont="flowData.ORDER_COMPLETED" :is-show="{bottom:true,left:true}"></flowChart> <!-- 缺陷待关闭--> <flowChart style="transform: translateY(-150px) translateX(400px)" :cont="flowData.DEFECTS_TO_BE_CLOSED" :is-show="{bottom:true}"></flowChart> <!-- 缺陷完成--> <flowChart style="transform: translateY(-50px) translateX(400px)" :cont="flowData.DEFECT_COMPLETION" :is-show="{bottom:true}"></flowChart> <div style="height: 200px"></div> </div> </template> <script> import flowChart from './item.vue' export default { props:['flowData'], components:{ flowChart }, data(){ return { } }, mounted() { } } </script> <style scoped lang="scss"> .box{ height: 100%; width: 100%; background: #fff; overflow: auto; .confirmToVoidLeft{ width: 180px; height: 2px; position: relative; background-color: #ccc; transform: translateY(450px) translateX(220px); } .confirmToVoidLeft::after{ content: ''; display: block; position: absolute; left: -10px; /* 箭头位置 */ top: -9px; /* 箭头位置 */ border-width: 10px 10px 10px 0; border-style: solid; border-color: transparent #ccc transparent transparent; //transform: rotateY(180deg); } .confirmToVoidTop{ width: 126px; height: 2px; position: relative; background-color: #ccc; transform: translateY(385px) translateX(145px) rotateZ(90deg); } .confirmToVoidTop::after{ content: ''; display: block; position: absolute; left: -10px; /* 箭头位置 */ top: -9px; /* 箭头位置 */ border-width: 10px 10px 10px 0; border-style: solid; border-color: transparent #ccc transparent transparent; } .finishTobeClosed{ width: 175px; height: 2px; position: relative; background-color: #ccc; transform: translateX(795px) translateY(1542px); } .finishTobeClosed::after{ content: ''; display: block; position: absolute; right: -10px; /* 箭头位置 */ top: -9px; /* 箭头位置 */ border-width: 10px 10px 10px 0; transform: rotateY(180deg) ; border-style: solid; border-color: transparent #ccc transparent transparent; } .finishToFinish{ width: 475px; height: 2px; position: relative; background-color: #ccc; transform: translateX(500px) translateY(1742px); } .finishToFinish::after{ content: ''; display: block; position: absolute; right: -10px; /* 箭头位置 */ top: -9px; /* 箭头位置 */ border-width: 10px 10px 10px 0; transform: rotateY(180deg) ; border-style: solid; border-color: transparent #ccc transparent transparent; } .list{ height: 50px; display: flex; width: 400px; justify-content: space-evenly; div{ height: 100%; display: flex; align-items: center; p{ margin: 0 5px; } .green{ height: 20px; width: 20px; border-radius: 50%; background: #70b603; border: 2px solid #cccccc; box-shadow: 0 0 4px #70b603; } .blue{ height: 20px; width: 20px; border-radius: 50%; background: #027db4; border: 2px solid #cccccc; box-shadow: 0 0 4px #027db4; } .grey{ height: 20px; width: 20px; border-radius: 50%; background: #f1f1f1; border: 2px solid #cccccc; box-shadow: 0 0 4px #f1f1f1; } } } } .box::after{ content: ""; display: block; clear: both; } </style> 以上是具体到每一个流程
<script> export default { props: ["cont","isShow","width"], data(){ return { } }, mounted() { } } </script> <template> <div id="box" class="boxContent"> <div class="line top-line top-arrow" :style="{display:(isShow.top?'block':'none')}"></div> <div class="line bottom-line bottom-arrow" :style="{display:(isShow.bottom?'block':'none')}"></div> <div class="line left-line left-arrow" :style="{display:(isShow.left?'block':'none')}"></div> <div class="line right-line right-arrow" :style="{display:(isShow.right?'block':'none')}"></div> <div class="title" :style="{height:'50%',background:(cont.status =='0' ? '#70b603':cont.status =='1'?'#027db4':'#ccc')}"> {
{cont.description}} </div> <div class="content"> {
{cont.name}} </div> </div> </template> <style scoped lang="scss"> //顶部的箭头 $_width: 80px; .boxContent { position: relative; width: 200px; height: 100px; border: 1px solid #ccc; box-shadow: 1px 1px 20px #ccc; :hover{ box-shadow: 1px 1px 12px #ccc; } } .title{ display: flex; justify-content: center; align-items: center; color: #fff; font-weight: bold; font-size: 15px; } .content{ font-size: 15px; padding: 10px; height: 50px; } .line { position: absolute; background-color: #ccc; } /* Top line with arrow */ .top-line { top: -$_width; left: 50%; width: 2px; height: $_width; transform: translateX(-50%) ; } .top-arrow::after { content: ''; position: absolute; top: -10px; left: 50%; transform: translateX(-50%) rotateX(180deg); border-width: 10px 10px 0 10px; border-style: solid; border-color: #ccc transparent transparent transparent; } /* Bottom line with arrow */ .bottom-line { bottom: -$_width; left: 50%; width: 2px; height: $_width; transform: translateX(-50%); } .bottom-arrow::after { content: ''; position: absolute; bottom: -10px; left: 50%; transform: translateX(-50%) rotateX(180deg); border-width: 0 10px 10px 10px; border-style: solid; border-color: transparent transparent #ccc transparent; } /* Left line with arrow */ .left-line { top: 50%; left: -$_width; width: $_width; height: 2px; transform: translateY(-50%); } .left-arrow::after { content: ''; position: absolute; top: 50%; left: -10px; transform: translateY(-50%) rotateX(180deg); border-width: 10px 10px 10px 0; border-style: solid; border-color: transparent #ccc transparent transparent; } /* Right line with arrow */ .right-line { top: 50%; right: -$_width; width: $_width; height: 2px; transform: translateY(-50%); } .right-arrow::after { content: ''; position: absolute; top: 50%; right: -10px; transform: translateY(-50%) rotate(0deg); border-width: 10px 0 10px 10px; border-style: solid; border-color: transparent transparent transparent #ccc; } </style> 将以上进行封装 七、最终效果图
