转座子插入序列分析1-GENE-IS分析管道

大家好，欢迎来到IT知识分享网。

如果你使用 GENE-IS: Saira Afzal et al。，2016请引用这篇研究文章。GENE-IS: time-efficient and accurate analysis of viral integration events in large-scale gene therapy data. Molecular Therapy – Nucleic Acids 2016, vol. 6:133-139. DOI:https://doi.org/10.1016/j.omtn.2016.12.001

GENE-IS 是从临床和临床前基因治疗研究的下一代测序数据中提取整合位点的管道。它是专门为了接受来自不同方案如 LAM (线性扩增介导) PCR 和靶向测序(SureSelect/AGILENT)方法的测序读数而设计的。

我该怎么办？

Installation

获取和运行GENE-IS最简单的方法是克隆目前的存储库

mkdir path_to_location cd path_to_location git clone https://github.com/G100DKFZ/gene-is.git cd gene-is

Testing

cd /path_to_location/gene-is/scripts # export the location of gene-is export GENIS=/path_to_location/gene-is # Run test suite by following command ./testGenis.sh

终端上会出现这些选项;

1) Targeted Sequencing Pair BWA 4) All 2) Targeted Sequencing Single 5) Clear 3) LAM-PCR 6) Quit

在终端1运行目标测序配对终端模式类型的测试并按回车键。如果安装成功，以下信息将出现在终端“Targeted Sequencing Pair worked as expected!目标测序对工作正常!”

要在终端2运行目标测序单端模式类型的测试并按回车键。如果安装成功，以下信息将出现在终端“Targeted Sequencing Single end worked as expected!目标测序单端工作正常!”

在终端3运行 LAM-PCR 配对终端模式类型测试并按回车键。如果安装成功，下面的消息将出现在终端“ LAM-PCR Pair worked as expected!LAM-PCR 对工作正常!”

为了测试用于 GENE-IS 基准测试的 Manuscript 中使用的数据集，请参见“/path _ to _ location/GENE-IS/testFiles”目录中的“ README”文件

但是我目前的结果出现了以下报错

解决办法，这是因为.sh结尾的脚本文件需要用bash运行，

bash testGenis.sh

成功出现以下结果：

1) Targeted Sequencing Pair BWA 2) Targeted Sequencing Single 3) LAM-PCR 4) All 5) Clear 6) Quit

依赖

第三方工具

GENE-IS 依赖于几个第三方工具，这些工具是开源的，可以免费使用。所有这些工具都已经在 $GENIS/tools/bin 目录的 GENE-IS 包中提供。此文件夹被称为配置文件中第三方工具的默认位置

  Third-party tools #Provide path to these third-party tools  #Provide path to the BWA aligner aligner = $GENIS/tools/bin/bwa #Path to the secondary aligner. (BLAT) blatAligner = $GENIS/tools/bin/blat #Path to the trimming and filtering tool (Skewer) skewer = $GENIS/tools/bin/skewer #Path to the Samtools samtools= $GENIS/tools/bin/samtools #Path to the bedtools bedTools= $GENIS/tools/bin/bedtools

对于用户信息，这里提供了工具名称和相关链接; 工具版本 URL

BWA 0.7.4 http://sourceforge.net/projects/bio-bwa/files/?source=navbar Bedtools 2.17.0 https://code.google.com/p/bedtools/downloads/detail?name=BEDTools.v2.17.0.tar.gz&can=2&q= Samtools 0.1.19 http://samtools.sourceforge.net/ BLAT v.35 http://users.soe.ucsc.edu/~kent/src/blatSrc35.zip Skewer 0.1.117 http://sourceforge.net/projects/skewer/files/Binaries/

这里我选择了2，运行单端数据的运算，出现以下结果：

...................................................... Tue 19 Mar 2024 06:25:20 PM CST  Pre-proceesing (Quality Filtering and Adapter Trimming) in progress... perl /home/mdisk/****/00.software/path_to_location/gene-is/scripts/filteringTrimming.pl -f /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/testData.TS.pair1.fastq.gz -qual 20 -adaptF GATCGGAAGAGCACACGTCTGAACTCCAGTCAC -sOut filtTrim -o /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -sk /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/skewer Quality value is 20. Results will be stored in /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/skewer -x GATCGGAAGAGCACACGTCTGAACTCCAGTCAC -q 20 -l 50 -o /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/testData.TS.pair1.fastq.gz Parameters used: -- 3' end adapter sequence (-x): GATCGGAAGAGCACACGTCTGAACTCCAGTCAC -- maximum error ratio allowed (-r): 0.100 -- maximum indel error ratio allowed (-d): 0.030 -- end quality threshold (-q): 20 -- minimum read length allowed after trimming (-l): 20 -- file format (-f): Sanger/Illumina 1.8+ FASTQ (auto detected) -- minimum overlap length for adapter detection (-k): 3 Tue Mar 19 18:25:20 2024 >> started |> | (0.66%) Tue Mar 19 18:25:21 2024 >> done (0.541s) 50000 reads processed; of these: 4541 ( 9.08%) short reads filtered out after trimming by size control 6447 (12.89%) empty reads filtered out after trimming by size control 39012 (78.02%) reads available; of these: 33385 (85.58%) trimmed reads available after processing 5627 (14.42%) untrimmed reads available after processing log has been saved to "/home/mdisk//00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.log". Alignment in process... =======>>>>>>>>>>>> 0 perl -I /home/mdisk//00.software/path_to_location/gene-is/lib /home/mdisk//00.software/path_to_location/gene-is/scripts/alignment.pl -p 8 -f filtTrim.fastq -gv /home/mdisk//00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa -a /home/mdisk//00.software/path_to_location/gene-is/tools/bin/bwa -aOut completAlignment -o /home/mdisk//00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -t AGILENT -sam /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/samtools Alignemnt type AGILENT BWA is used as Aligner /home/mdisk//00.software/path_to_location/gene-is/tools/bin/bwa mem -M -t 8 /home/mdisk//00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa /home/mdisk//00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk//00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment.sam [M::main_mem] read 39012 sequences ( bp)... [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk//00.software/path_to_location/gene-is/tools/bin/bwa mem -M -t 8 /home/mdisk//00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa /home/mdisk//00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq [main] Real time: 0.902 sec; CPU: 5.069 sec /home/mdisk//00.software/path_to_location/gene-is/tools/bin/samtools: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/samtools: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory IS extraction and post-processing in progress... perl -I /home/mdisk/*/00.software/path_to_location/gene-is/lib /home/mdisk/*/00.software/path_to_location/gene-is/scripts/extractIS.pl -aIn completAlignment.sam -o /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -s /home/mdisk/*/00.software/path_to_location/gene-is/scripts -v VECTOR -vecFile /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa -genFile /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa -fOut filtTrim.fastq -aBWA /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa -t AGILENT -i /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa.2bit -bla /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat -minIden 95 -range 10 Results will be stored in /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ sed -i /@SQb/d /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment.sam awk '/home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa ~ /S/' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS.sam sed -i '/^$/d' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS.sam CountLines=8981 echo 8981 > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_Correction_Oct2014.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_Correction_Oct2014.py", line 19 print i ^^^^^^^ SyntaxError: Missing parentheses in call to 'print'. Did you mean print(...)? sort -u -k1,1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted.sam cut -f 1,2,3,4,5,6,7,8,9,10,11,12 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1.sam awk '{
    sub(/0$/, +, /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/) }1' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1.sam | awk '{
    sub(/256$/, +, /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/) }1' | awk '{
    sub(/16$/, -, /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/) }1' | awk '{
    sub(/272$/, -, /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/) }1' | awk '{
    sub(/0$/, +, filtTrim.fastq) }1' | awk '{
    sub(/256$/, +, filtTrim.fastq) }1' | awk '{
    sub(/16$/, -, filtTrim.fastq) }1' | awk '{
    sub(/272$/, -, filtTrim.fastq) }1' > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1_strand.sam awk -v OFS=t 'completAlignment.sam=completAlignment.sam' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1_strand.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1_strand1.sam python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SeprateSM_Oct2014.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1_strand1.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SeprateSM_Oct2014.py", line 21 print i ^^^^^^^ SyntaxError: Missing parentheses in call to 'print'. Did you mean print(...)? sed -i '/^$/d' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM.sam python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SeprateMS_Oct2014.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_corrected_sorted1_strand1.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SeprateMS_Oct2014.py", line 21 print i ^^^^^^^ SyntaxError: Missing parentheses in call to 'print'. Did you mean print(...)? sed -i '/^$/d' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS.sam python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SM_Sextraction.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_SM_Sextraction.py", line 23 span=cig1[:S1] TabError: inconsistent use of tabs and spaces in indentation python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_Sextraction.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_Sextraction.py", line 23 span=cig1[M1+1:S1] TabError: inconsistent use of tabs and spaces in indentation awk -v OFS=t 'completAlignment.sam=completAlignment.sam' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1.sam awk -v OFS=t 'completAlignment.sam=completAlignment.sam' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1.sam awk '(completAlignment.sam3 >= 20 )' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1aa.sam awk '(completAlignment.sam3 >= 20 )' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1aa.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1aa.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact-ids.txt awk -vExact=/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact-ids.txt 'BEGIN{
   while((getline<Exact)>0)l[@completAlignment.sam]=1}NR%2==1{
   f=l[completAlignment.sam]?1:0}f' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq [main] Real time: 0.009 sec; CPU: 0.002 sec sort /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam | uniq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly1.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly1.sam | sort | uniq -u > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam.ids awk -vExactVecOnly=/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam.ids 'BEGIN{
   while((getline<ExactVecOnly)>0)l[@completAlignment.sam]=1}NR%2==1{
   f=l[completAlignment.sam]?1:0}f' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq [main] Real time: 0.109 sec; CPU: 0.004 sec sort /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam | uniq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly1.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly1.sam | sort | uniq -u > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam.ids awk 'NR==FNR{
   tgts[completAlignment.sam]; next} completAlignment.sam in tgts' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam.ids /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1aa.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1aa.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact-ids.txt awk -vExact=/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact-ids.txt 'BEGIN{
   while((getline<Exact)>0)l[@completAlignment.sam]=1}NR%4==1{
   f=l[completAlignment.sam]?1:0}f' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact.fastq [main] Real time: 0.006 sec; CPU: 0.002 sec sort /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam | uniq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly1.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly1.sam | sort | uniq -u > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam.ids awk -vExactVecOnly=/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactVecOnly.sam.ids 'BEGIN{
   while((getline<ExactVecOnly)>0)l[@completAlignment.sam]=1}NR%4==1{
   f=l[completAlignment.sam]?1:0}f' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa mem -M /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Exact1.fastq [main] Real time: 0.007 sec; CPU: 0.003 sec sort /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam | uniq > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly1.sam cut -f1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly1.sam | sort | uniq -u > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam.ids awk 'NR==FNR{
   tgts[completAlignment.sam]; next} completAlignment.sam in tgts' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ExactGenOnly.sam.ids /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1aa.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1a.sam python /home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_MPosCorrectionOct2014.py /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//Lines.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a_correctedMpos0.sam File "/home/mdisk/*/00.software/path_to_location/gene-is/scripts/CIGAR_MS_MPosCorrectionOct2014.py", line 24 spanM1=cig1[:M1] TabError: inconsistent use of tabs and spaces in indentation sed -e s/ /t/g /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a_correctedMpos0.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a_correctedMpos.sam awk -Ft 'BEGIN {
    OFS = t } {
   completAlignment.sam6=1; print}' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_MS_Sextracted1a_correctedMpos.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//MS_MS.sam awk -Ft 'BEGIN {
    OFS = t } {
   completAlignment.sam5=0; print}' /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1a.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_SM.sam cut -f 15 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_SM.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_SM.txt paste /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_idChrIS.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_strand.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_Sspan.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_read.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_SM.txt | sed 's/\t/@/g' > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_header.txt cut -f 14 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_onlyS_SM_Sextracted1a.sam > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_Sseq.txt paste /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_header.txt /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//SM_Sseq.txt | sed -e 's/^/>/' | sed 's/\t/\n/g' > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S_SM.fa cat /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S_MS.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S_SM.fa > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.fa /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa.2bit /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.fa -out=blast8 -minIdentity=95 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.bst /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat: error while loading shared libraries: libpng12.so.0: cannot open shared object file: No such file or directory echo VECTOR VECTOR awk -Ft -v vectorStr=VECTOR -f /home/mdisk/*/00.software/path_to_location/gene-is/scripts/extractIS.awk /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.bst | grep VECTOR > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv awk: /home/mdisk/*/00.software/path_to_location/gene-is/scripts/extractIS.awk:64: fatal: cannot open file `/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.bst' for reading (No such file or directory) mv: cannot stat '/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment_S.bst': No such file or directory sort: cannot read: /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtered.bst: No such file or directory sort -k2,2 -k3,3 -k4,4 -k5,5 -k6,6 -k7,7 -k8,8 -k9,9 -k10,10 -u /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDupSingle0.csv sort -k1,1 -u /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDupSingle0.csv > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDupSingle.csv cut -d -f 1,2,3,4,5,6,7 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDupSingle.csv | awk -v vectorName=VECTOR -f /home/mdisk/*/00.software/path_to_location/gene-is/scripts/formatIS.awk | sort -k4nr > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv.total sort -k1,1 -k2,2n /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv.total | awk -v range=10 -f /home/mdisk/*/00.software/path_to_location/gene-is/scripts/solveIS.awk > /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv.total.results bash /home/mdisk/*/00.software/path_to_location/gene-is/scripts/extractSingleEndIS.sh completAlignment.sam /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ /home/mdisk/*/00.software/path_to_location/gene-is/scripts VECTOR /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/VECTOR.fa /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testOnlyGenome.fa filtTrim.fastq /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bwa /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa.2bit 95 10 No extra filtering...  Multiple aligned reads processing TS ... bash /home/mdisk/*/00.software/path_to_location/gene-is/scripts/repeatsExtractTS.sh VECTOR /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ /home/mdisk/*/00.software/path_to_location/gene-is/scripts 0.9 /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa.2bit 95 10 awk: fatal: cannot open file `/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtered.bst' for reading (No such file or directory) cut: /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtered.bst: No such file or directory /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/blat: error while loading shared libraries: libpng12.so.0: cannot open shared object file: No such file or directory awk: fatal: cannot open file `/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtered.temp.bst' for reading (No such file or directory)  IS annotation TS... perl -I /home/mdisk/*/00.software/path_to_location/gene-is/lib /home/mdisk/*/00.software/path_to_location/gene-is/scripts/annotation.pl -o /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -s /home/mdisk/*/00.software/path_to_location/gene-is/scripts -t /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bedtools -a1 /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/UCSC.anno.table_hg38.txt -r1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//resultsNoDup.csv.total.results perl -I /home/mdisk/*/00.software/path_to_location/gene-is/lib /home/mdisk/*/00.software/path_to_location/gene-is/scripts/annotation.pl -o /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -s /home/mdisk/*/00.software/path_to_location/gene-is/scripts -t /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/bedtools -a1 /home/mdisk/*/00.software/path_to_location/gene-is/test/datasets/UCSC.anno.table_hg38.txt -r1 /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//repeats.resultsNoDup.csv.total.results Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ISFileMod1.bed) could not be opened. Exiting! /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//anno9.bed) could not be opened. Exiting! Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//anno9.bed) could not be opened. Exiting! Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//ISFileMod1.bed) could not be opened. Exiting! /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//anno9.bed) could not be opened. Exiting! Error: The requested bed file (/home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//anno9.bed) could not be opened. Exiting!   Generating General Statistics ... /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/samtools: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory Finished.   Testing Single-end Output  Generated Output File /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/testDataTS.single.csv Template Output File /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/testDataTS.ResultsClusteredAnnotated.csv !!! Assertion failed !!! Output File /home/mdisk/*/00.software/path_to_location/gene-is/test/targetedSequencing/results/testDataTS.single.csv is not the same as expected

可以看到，该脚本也是分步处理的数据，下面我们将脚本的每一大步骤进行拆分，以熟悉针对单端测序数据的转座子插入序列分析的全流程。

第一步，进行数据预处理

 perl /home/mdisk/****/00.software/path_to_location/gene-is/scripts/filteringTrimming.pl -f /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/testData.TS.pair1.fastq.gz -qual 20 -adaptF GATCGGAAGAGCACACGTCTGAACTCCAGTCAC -sOut filtTrim -o /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -sk /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/skewer

调用了filteringTrimming.pl的功能，基本功能如下

Please provide a forward file! Usage: filterTrimming.pl <-f forward file> <required> <-skewer full path is required> <required>. [options] Options: -h, --help Displays this infrOutmation. -f, --forward Forward FASTQ file <required>. -sk, --skewer Full path of skewer tool is needed <required>. -r, --reverse Reverse FASTQ file. -qual, --quality Quality value for filteration <0-40>.Default is 20 -adaptF, --adapterForward Adapter for forward file.Default is GATCGGAAGAGCACACGTCTGAACTCCAGTCAC -adaptR, --adapterReverse Adapter for reverse file.Default is AGATCGGAAGAGCGTCGTGTAGGGAAAGAGTGTAGATCTCGGTGGTCGCCGTATCATT -sOut, --suffOut Name for suffix output file. Default is filtTrim -o, --output Full path of a directory to store results.Default is current working directory. This program quality filter and trim adapters of the provided FASTQ files

可见，该程序的主要功能是修剪指定接头的序列以及测序数据的质控。
有几个必须项和默认项，
必须项：
-f提供的5’端测序文件
-sk skewer工具的决定引用地址
默认项：
-qual，用于序列总体质量过滤的阈值，默认是20，可选范围是0-40.
-adaptF，5’测序文件的接头，默认是GATCGGAAGAGCACACGTCTGAACTCCAGTCAC。
-sOut 输出文件的前缀，默认是filtTrim。
-o 输出文件的地址，默认是当前工作路径。

代码中可以看到，同时调用了skewer程序，我们查看一下skewer的功能，定位到上述程序的位置后输入./skewer --h即可查看，程序介绍如下：

Skewer (A fast and accurate adapter trimmer for paired-end reads)一个快速且准确的双端数据接头修剪器 Version 0.1.117 (updated in July 12, 2014), Author: Hongshan Jiang USAGE: skewer [options] <reads.fastq> [paired-reads.fastq] or skewer [options] - (for input from STDIN) OPTIONS (ranges in brackets, defaults in parentheses): Adapter: -x <str> Adapter sequence/file (AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC)指定 -y <str> Adapter sequence/file for pair-end reads (AGATCGGAAGAGCGTCGTGTAGGGAAAGAGTGTA), implied by -x if -x is the only one specified explicitly.双端读取的适配器序列/文件(AGATCGGAAGAGCGTCGTGTAGGGAAAGAGTGTA)，如果-x是唯一显式指定的适配器序列/文件，则由-x指定。 -j <str> Junction adapter sequence/file for Nextera Mater Pair reads (CTGTCTCTTATACACATCTAGATGTGTATAAGAGACAG) -m, --mode <str> trimming mode; 1) single-end -- head: 5' end; tail: 3' end; any: anywhere (tail) 2) paired-end -- pe: paired-end; mp: mate-pair (pe)指定修剪模式 Tolerance: -r <num> Maximum allowed error rate (normalized #errors / length of aligned region) [0, 0.5], (0.1)最大允许的错误率 -d <num> Maximum allowed indel error rate [0, r], (0.03)最大允许的插入缺失的错误率 reciprocal is used for -r and -d when num > or = 2 -k <int> Minimum overlap length for adapter detection [1, inf); (max(1, int(4-10*r)) for single-end; (<junction length>/2) for mate-pair) Filtering & Post-trimming: -q, --end-quality <int> Trim 3' end until specified or higher quality reached; (0) -Q, --mean-quality <int> The lowest mean quality value allowed before trimming; (0) -l, --min <int> The minimum read length allowed after trimming; (18) -L, --max <int> The maximum read length allowed after trimming; (no limit) -n Whether to filter out highly degerative (many Ns) reads; (no) -u Whether to filter out undetermined mate-pair reads; (no) Input/Output: -f, --format <str> Format of FASTQ quality value: sanger|solexa|auto; (auto) -b, --barcode Use adapters to demultiplex reads to trimmed file(s) and an untrimmed file (no) -o, --output <str> Base name of output file; ('<reads>.trimmed-Q<int>L<int>') -z, --compress Compress output in GZIP format (no)压缩文件为GZIP格式 -1, --stdout Redirect output to STDOUT, suppressing -b, -o, and -z options (no) --quiet No progress update (not quiet) Miscellaneous: -t, --threads <int> Number of concurrent threads [1, 16]; (1)指定线程数 EXAMPLES: skewer -Q 9 -t 2 -x adapters.fa sample.fastq -o trimmed skewer -x AGATCGGAAGAGC -q 3 sample-pair1.fq.gz sample-pair2.fq.gz skewer -x TCGTATGCCGTCTTCTGCTTGT -l 16 -L 30 -d 0 srna.fastq skewer -m mp lmp-pair1.fastq lmp-pair2.fastq

我们可以看到，

#system "(fastq_quality_fiilter -q $qual_value -p $perc_value -i $f_file -o $output_dir/filt11.fastq -Q33)"; system "(echo \"$skewer_dir -x $adaptF_value -y $adaptR_value -q $qual_value -l 50 -o $output_dir/$Out_value $f_file $r_file\")"; system "($skewer_dir -x $adaptF_value -y $adaptR_value -q $qual_value -l 20 -o $output_dir/$Out_value $f_file $r_file)"; #system "(fastq_quality_filter -q $qual_value -p $perc_value -i $r_file -o $output_dir/filt22.fastq -Q33)"; }else{
    system "(echo \"$skewer_dir -x $adaptF_value -q $qual_value -l 50 -o $output_dir/$Out_value $f_file\")"; system "($skewer_dir -x $adaptF_value -q $qual_value -l 20 -o $output_dir/$Out_value $f_file)";

前面给出的代码与默认基本一致，我们先看一下输入的文件的基本信息

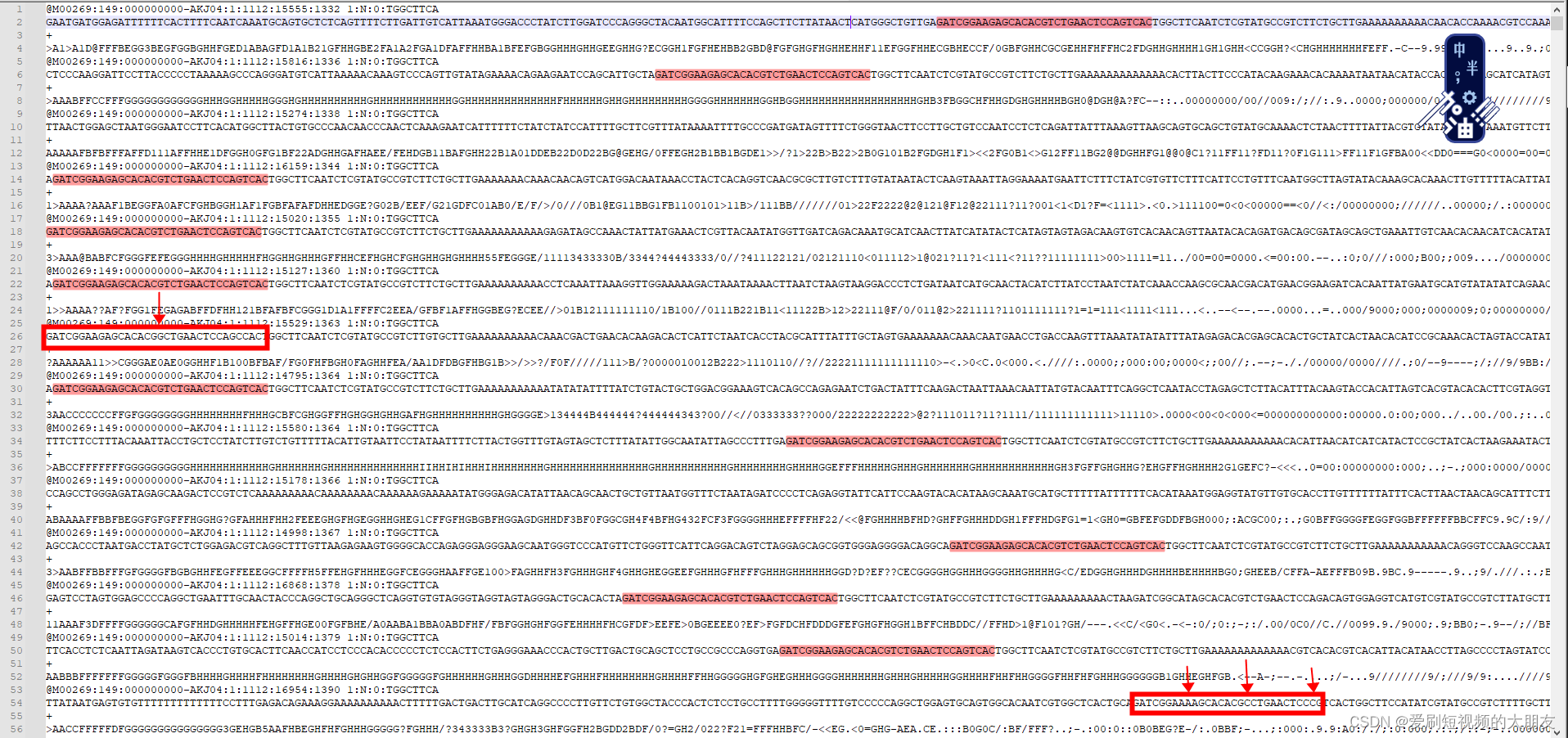

通过检索，可以看到很多序列都包含adapter序列，运行程序之后，可以看到生成了以下文件：

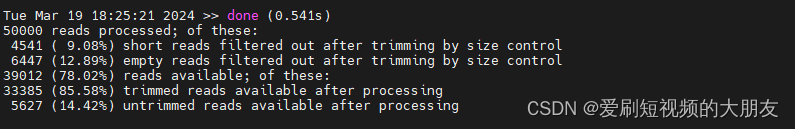

我们先查看一下运行日志filtTrim.log

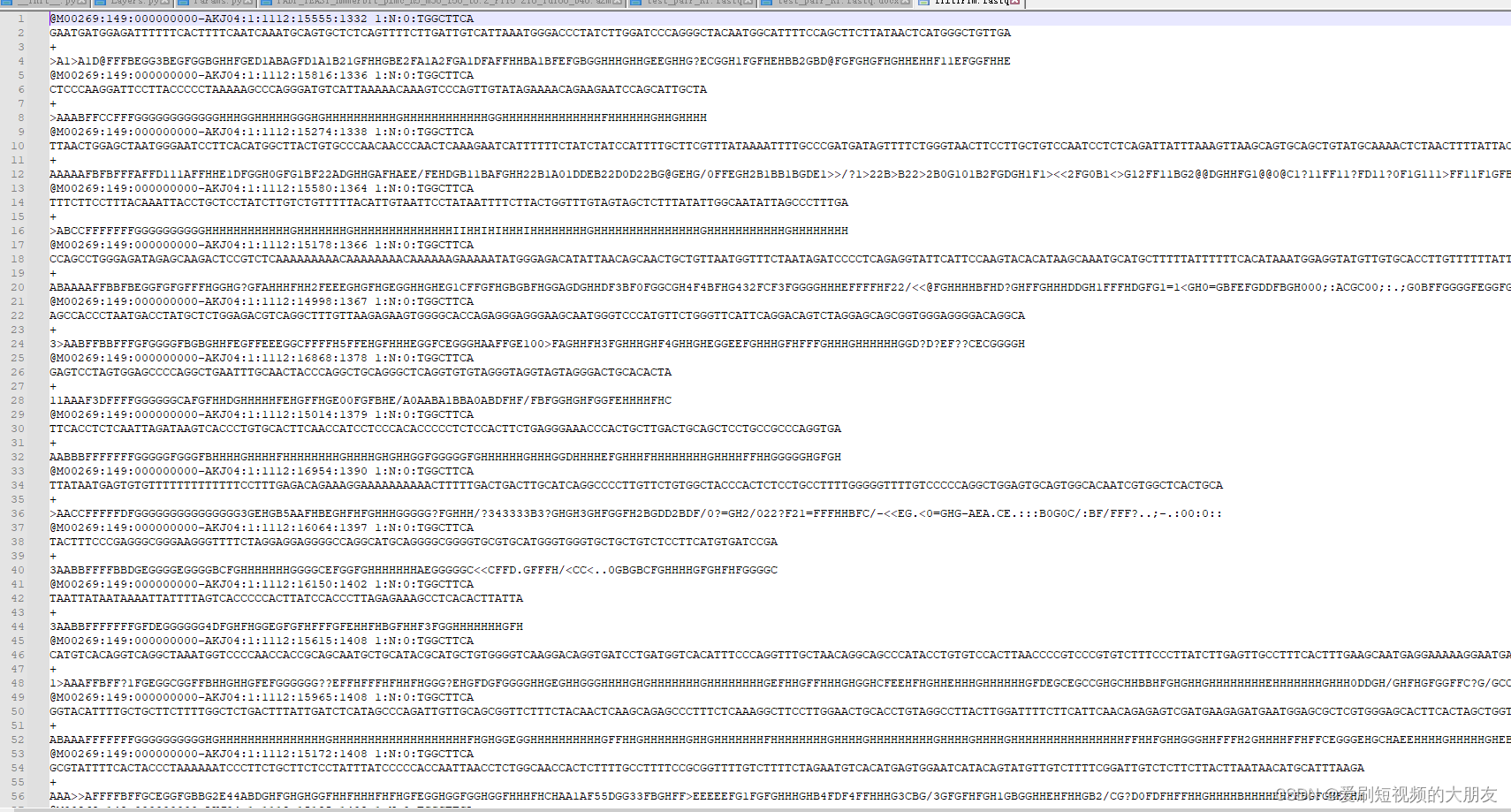

再查看一下filtTrim.fastq文件

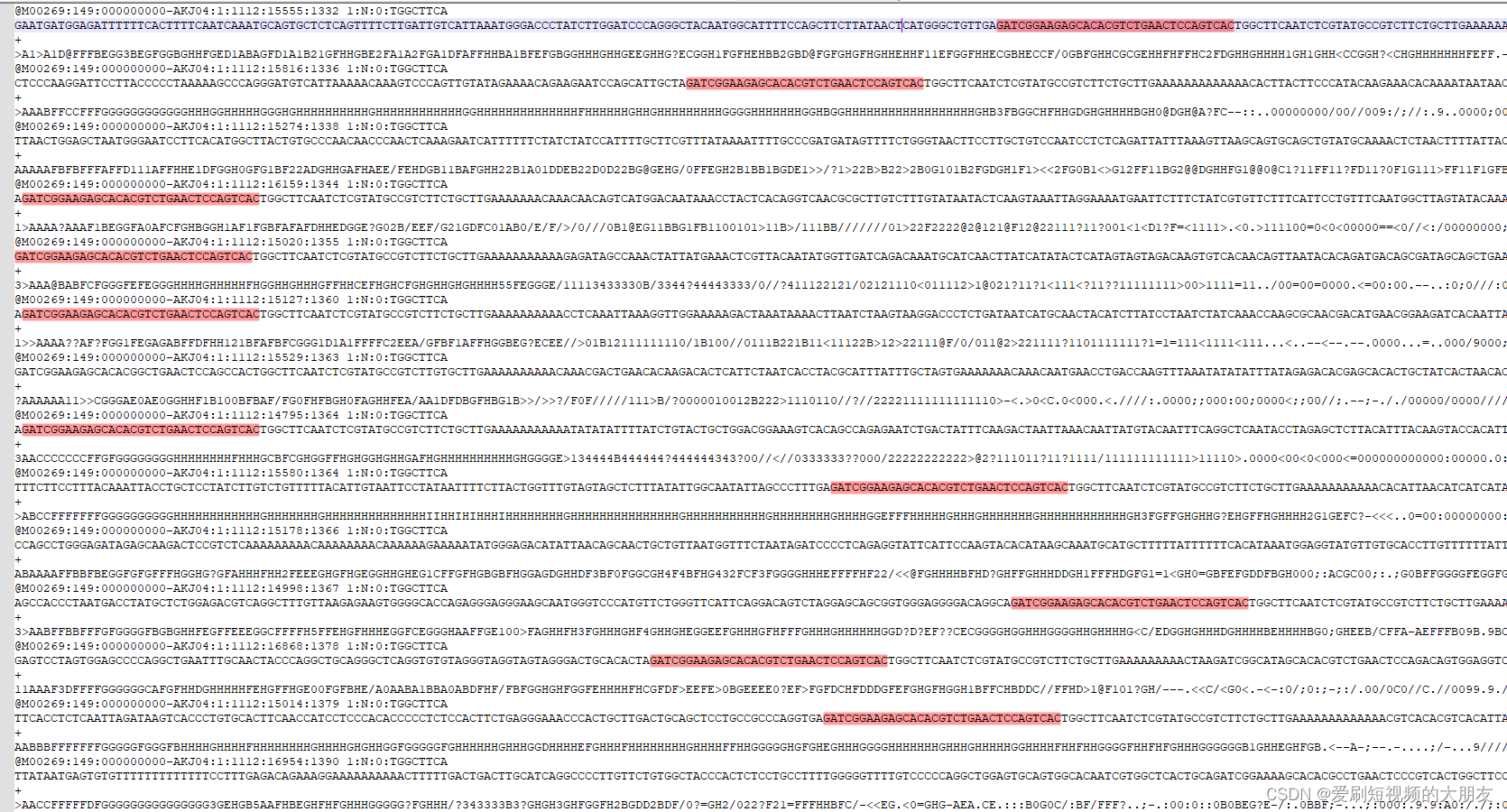

结合之前的接头序列的标记图，可以看到，很多序列在识别到adapter后，其下游序列均被修剪掉了，同时删除了修剪后过短的序列，继续观察可以发现，部分序列未识别到接头序列的完全匹配序列，但仍经历了修剪过程，这是因为程序对于接头序列的识别较为灵敏，因为测序过程中存在一定的错误率，较为宽容的识别可提高识别的灵敏度。

因为这个脚本的基本功能是调用上面提到的那些工具（exp：samtools，bedtools等）我们还可以看一下他的脚本，具体使用了那些参数

system "(echo \"$skewer_dir -x $adaptF_value -q $qual_value -l 50 -o $output_dir/$Out_value $f_file\")"; system "($skewer_dir -x $adaptF_value -q $qual_value -l 20 -o $output_dir/$Out_value $f_file)"

可以看到，脚本主要使用了skewer的-x，-q，-l和-o参数
-x 是指定需要修剪的序列，如果没有指定则默认AGATCGGAAGAGCACACGTCTGAACTCCAGTCAC序列，脚本中更换为了GATCGGAAGAGCACACGTCTGAACTCCAGTCAC 序列；
-q是对末端（3’ end）进行修剪，直到达到指定的质量阈值或获得更高质量的序列。
-l
在数据修剪（质控）之后，开始运行比对程序，使用的是BWA

 Alignment in process... =======>>>>>>>>>>>> 0 perl -I /home/mdisk/****/00.software/path_to_location/gene-is/lib /home/mdisk/****/00.software/path_to_location/gene-is/scripts/alignment.pl -p 8 -f filtTrim.fastq -gv /home/mdisk/****/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa -a /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/bwa -aOut completAlignment -o /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd/ -t AGILENT -sam /home/mdisk/*****/00.software/path_to_location/gene-is/tools/bin/samtools Alignemnt type AGILENT BWA is used as Aligner /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/bwa mem -M -t 8 /home/mdisk/****/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq > /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//completAlignment.sam [M::main_mem] read 39012 sequences ( bp)... [main] Version: 0.7.4-r385 [main] CMD: /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/bwa mem -M -t 8 /home/mdisk/****/00.software/path_to_location/gene-is/test/datasets/testGenomeVector.fa /home/mdisk/****/00.software/path_to_location/gene-is/test/targetedSequencing/results/singleEnd//filtTrim.fastq [main] Real time: 0.902 sec; CPU: 5.069 sec /home/mdisk/****/00.software/path_to_location/gene-is/tools/bin/samtools: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory /home/mdisk/*/00.software/path_to_location/gene-is/tools/bin/samtools: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory

Perl 模块

所需的 Perl 库被预先打包在工具中(GENE-IS 中的“ lib”dir)。

配置文件

GENE-IS 拥有针对每种分析模式的特定配置文件; LAM-PCR、 TES 配对和 TES 单端配置文件。只有相关的配置文件应该为特定的分析进行修改。为了测试 GENE-IS 安装，用户不需要更改配置文件中的任何参数。模板位于基因路径中，即。

$GENIS/configFile_targetedSequencing_pairedEnd.txt

Contacts

Contact:  Contact:
