什么是k3s

k3s 是一个轻量级的 Kubernetes 发行版，它针对边缘计算、物联网等场景进行了高度优化。专为无人值守、资源受限、远程位置或物联网设备内部的生产工作负载而设计。

k3s 有以下增强功能：

• 打包为单个二进制文件。
• 使用基于 sqlite3 的轻量级存储后端作为默认存储机制。同时支持使用 etcd3、MySQL 和 PostgreSQL 作为存储机制。
• 封装在简单的启动程序中，通过该启动程序处理很多复杂的 TLS 和选项。
• 默认情况下是安全的，对轻量级环境有合理的默认值。
• 添加了简单但功能强大的batteries-included功能，例如：本地存储提供程序，服务负载均衡器，Helm controller 和 Traefik Ingress controller。
• 所有 Kubernetes control-plane 组件的操作都封装在单个二进制文件和进程中，使 k3s 具有自动化和管理包括证书分发在内的复杂集群操作的能力。
• 最大程度减轻了外部依赖性，k3s 仅需要 kernel 和 cgroup 挂载。 k3s 软件包需要的依赖项包括：
  • containerd
  • Flannel
  • CoreDNS
  • CNI
  • 主机实用程序（iptables、socat 等）
  • Ingress controller（Traefik）
  • 嵌入式服务负载均衡器（service load balancer）
  • 嵌入式网络策略控制器（network policy controller）
• 紧跟K8s发行版本
• 提供证书轮换策略

适用场景

k3s 适用于以下场景：

• 边缘计算-Edge
• 物联网-IoT
• CI
• Development
• ARM
• 嵌入 K8s

为什么用k3s

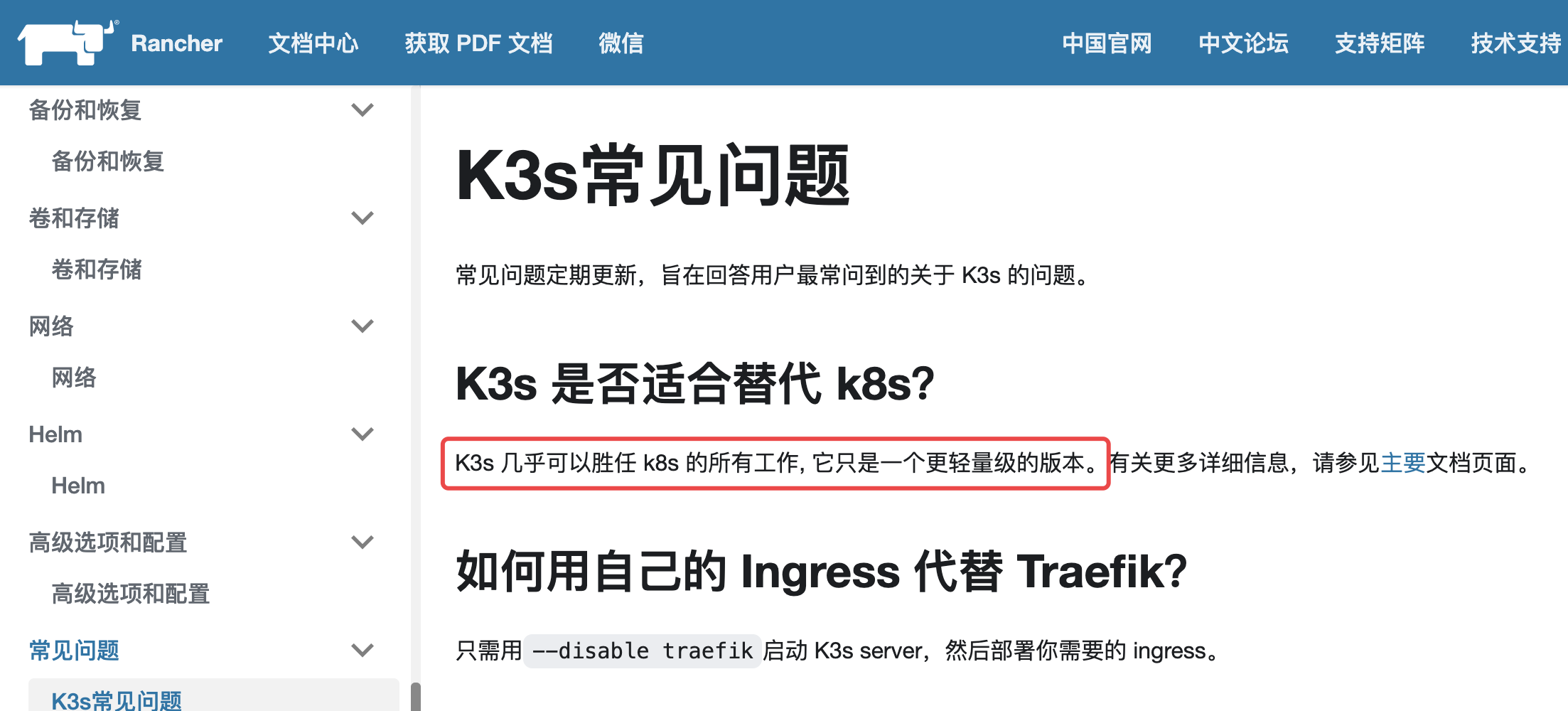

k3s 几乎可以胜任 k8s 的所有工作, 它只是一个更轻量级的版本。

支持使用 etcd3、MySQL 和 PostgreSQL 作为存储机制。

50MB左右二进制包，500MB左右内存消耗。

同时支持x86_64, Arm64, Amd64, Arm

支持容器内部署 如可以在k8s中部署k3s 方便后续二次开发和多租户管理

官方评价

k3s相对k8s的精简部分:

1. 内置的storage驱动 内置Local Path Provider。
2. k3s可执行文件包含了Kubernetes control-plane 组件，如 API server, controller-manager, 和 scheduler。
3. 内置的cloud provider (公有云使用) 仍可通过手动安装的外部插件。它是 Kubernetes 中开放给云厂商的通用接口，便于 Kubernetes 自动管理和利用云服务商提供的资源，这些资源包括虚拟机资源、负载均衡服务、弹性公网 IP、存储服务等。
4. 过时的API，k3s不包括任何默认禁用的Alpha功能或者过时的功能，原有的API组件目前仍运行于标准部署当中。
5. 非核心的feature
6. 将在工作节点上运行的kubelet、kubeproxy和flannel代理进程组合成一个进程。默认情况下，k3s 将以 flannel 作为 CNI 运行，使用 VXLAN 作为默认后端。
7. 除了 etcd 之外，引入 SQLite 作为可选的数据存储：在k3s中添加了SQLite作为可选的数据存储，从而为etcd提供了一个轻量级的替代方案。该方案不仅占用了较少的内存，而且大幅简化了操作。
8. 使用containerd代替Docker作为运行时的容器引擎：通过用containderd替换Docker，k3s能够显著减少运行时占用空间，删除libnetwork、swarm、Docker存储驱动程序和其他插件等功能。你可以使用Docker，只是说contained是默认选项。Containerd可以直接通过编译方式内置到k3s里，Docker则不能。Containerd占用资源小，Docker本身有额外的组件，那些组件k8s完全不需要。

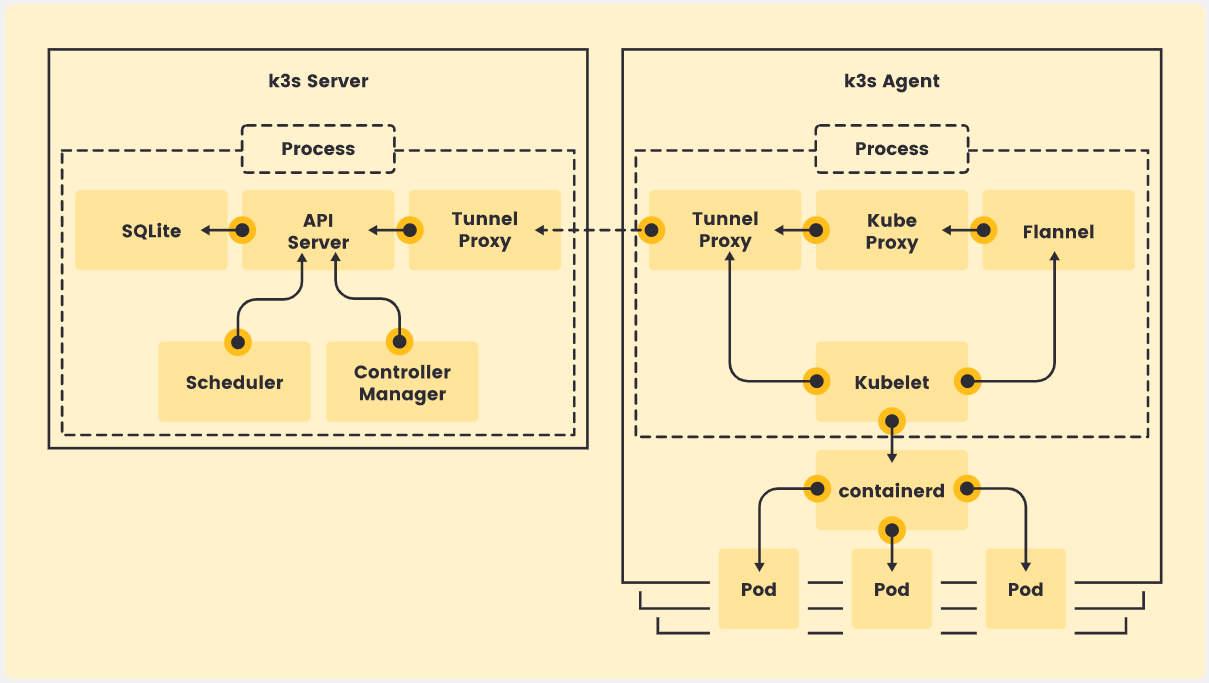

k3s单节点架构

默认情况下，k3s 启动 master 节点也同时具有 worker 角色，是可调度的，因此可以在它们上启动工作 # 如果不需要master被调度可以通过安装时加入参数INSTALL_k3s_EXEC="--node-taint k3s-controlplane=true:NoExecute" # 去除标签修改标签 # kubectl label node ubuntu node-role.kubernetes.io/master- # kubectl label node ubuntu node-role.kubernetes.io/master=""

安装docker

 # wget https://download.docker.com/linux/static/stable/x86_64/docker-20.10.2.tgz cd /data1/k3s/airgap tar -xvf docker-20.10.2.tgz cp -f docker/* /usr/bin/ cat >/etc/systemd/system/docker.service <<EOF [Unit] Description=Docker Application Container Engine Documentation=https://docs.docker.com After=network-online.target firewalld.service Wants=network-online.target [Service] Type=notify ExecStart=/usr/bin/dockerd ExecReload=/bin/kill -s HUP \$MAINPID LimitNOFILE=infinity LimitNPROC=infinity LimitCORE=infinity #asksMax=infinity TimeoutStartSec=0 Delegate=yes KillMode=process Restart=on-failure StartLimitBurst=3 StartLimitInterval=60s [Install] WantedBy=multi-user.target EOF systemctl daemon-reload systemctl restart docker systemctl status docker systemctl enable docker.service systemctl status docker.service --no-pager

安装apt依赖gcc Nvidia-docker2 cmake

cat <<-EOF > /etc/apt/sources.list deb [trusted=yes] file:///var/ debs/ EOF mkdir -p /var/debs cp *.deb /var/debs/ touch /var/debs/Packages.gz cd /var/debs apt-ftparchive packages /var/debs > /var/debs/Packages apt-get update # 这一步安装就没必要搞上面花里胡哨的 # apt install /var/debs/*deb -y cp *.deb /var/debs/ echo Y| apt install /var/debs/*.deb -y --no-install-recommends # 安装完成配置default-runtime后重启 cat > /etc/docker/daemon.json <<EOF { "default-runtime": "nvidia", "runtimes": { "nvidia": { "path": "/usr/bin/nvidia-container-runtime", "runtimeArgs": [] } }, "default-shm-size": "2G" } EOF sudo systemctl daemon-reload sudo systemctl restart docker

如需在线安装参考注释

# curl -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add - && distribution=$(. /etc/os-release;echo $ID$VERSION_ID) && # curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.list | sudo tee /etc/apt/sources.list.d/nvidia-docker.list && # sudo apt-get update && # sudo apt-get install -y nvidia-docker2 && # 修改docker配置文件，以让其将nvidia的runtime设置为默认的runtime cat > /etc/docker/daemon.json <<EOF { "default-runtime": "nvidia", "runtimes": { "nvidia": { "path": "/usr/bin/nvidia-container-runtime", "runtimeArgs": [] } }, "default-shm-size": "2G" } EOF systemctl daemon-reload sudo systemctl restart docker # nvidia-docker2不支持nvidia-docker-compose，目前只能用docker-compose取代，通过配置daemon.json：default-runtime=nvidia

安装NVIDIA GPU驱动安装

cd /data1/k3s/airgap ./nvidia_cuda/NVIDIA-Linux-x86_64-470.63.01.run -silent --no-x-check --no-nouveau-check --install-libglvnd [ $? -eq 0 ] && echo "nvidia驱动安装成功"||echo "nvidia驱动安装异常，请检查nvidia-smi命令是否可用！！！" cat >/etc/modprobe.d/blacklist-nouveau.conf <<EOF blacklist nouveau options nouveau modeset=0 EOF modprobe nvidia-uvm 1>/dev/null modprobe nvidia-drm 1>/dev/null # 开启驱动持久模式 nvidia-smi -pm 1

导入所需镜像

cd /data1/k3s/airgap for i in `ls |grep tar.gz`;do docker load < $i;done

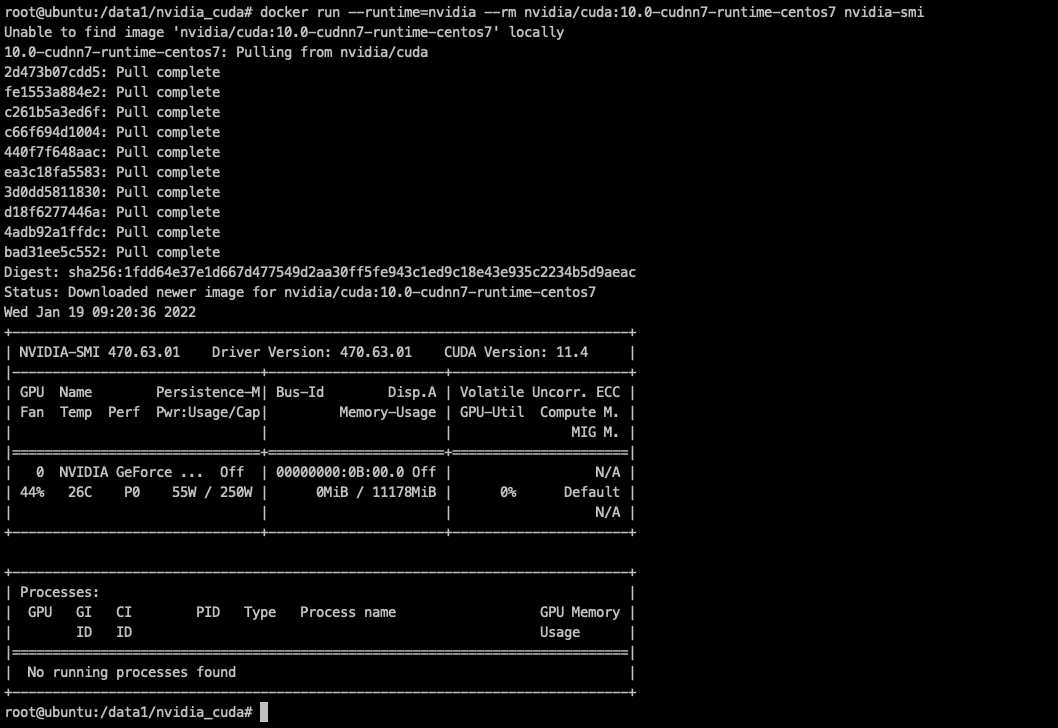

测试nvidia驱动

# docker run --runtime=nvidia --rm nvidia/cuda:10.0-cudnn7-runtime-centos7 nvidia-smi

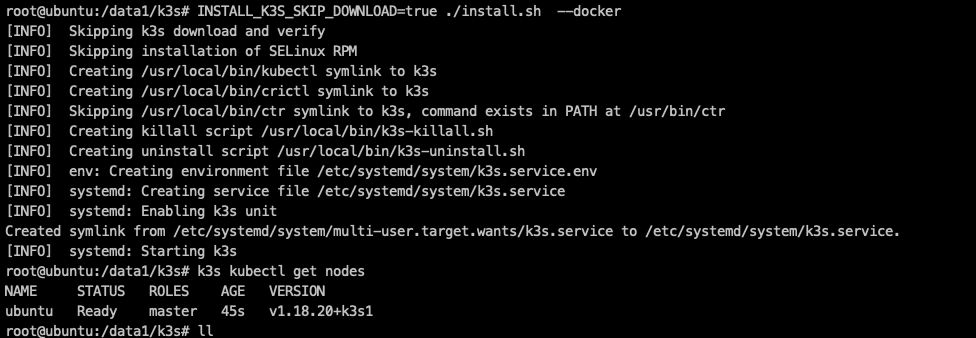

安装k3s

考虑nginx配置应用到traefik,以及前端转发，暂时先不用traefik，采用原来的部署方式nginx + HostPort方式部署服务

选择参数安装

sudo mkdir -p /var/lib/rancher/k3s/agent/images/ sudo cp ./k3s-airgap-images-amd64.tar /var/lib/rancher/k3s/agent/images/ # sudo cp ./k3s-airgap-images-arm64.tar /var/lib/rancher/k3s/agent/images/ # 上面这两步可以通过docker load < k3s-airgap-images-amd64.tar 代替 # sudo chmod +x /usr/local/bin/k3s # sudo chmod +x install.sh sudo cp ./k3s /usr/local/bin/ # service-node-port-range默认是3000-32767 # export INSTALL_K3S_SKIP_DOWNLOAD="--datastore-endpoint=mysql://root:root@tcp(172.17.0.150:3306)/k3s --docker --kube-apiserver-arg service-node-port-range=1-65000 --no-deploy traefik --write-kubeconfig ~/.kube/config --write-kubeconfig-mode 666" # 启用docker代替containerd 默认会部署traefik sudo INSTALL_K3S_SKIP_DOWNLOAD=true ./install.sh --docker --no-deploy traefik --no-deploy local-storage

查看k3s状态

alias kubectl='k3s kubectl' # 查看flannel ip -o -d link show flannel.1 k3s kubectl get nodes

k3s镜像版本

测试

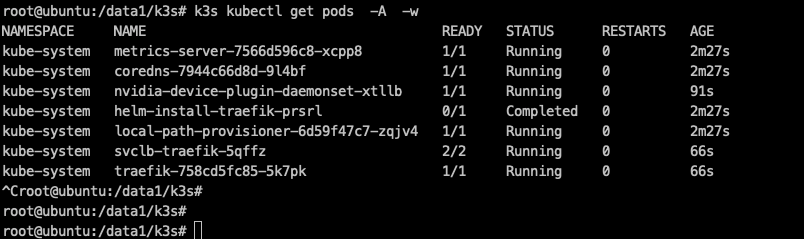

k3s kubectl run --image=nginx nginx-app --port=80 k3s kubectl get pods -A -w

安装DaemonSet的nvidia-device-plugin插件(指定GPU个数)

nvidia-device-plugin.yml

 # Copyright (c) 2019, NVIDIA CORPORATION. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. apiVersion: apps/v1 kind: DaemonSet metadata: name: nvidia-device-plugin-daemonset namespace: kube-system spec: selector: matchLabels: name: nvidia-device-plugin-ds updateStrategy: type: RollingUpdate template: metadata: # This annotation is deprecated. Kept here for backward compatibility # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ annotations: scheduler.alpha.kubernetes.io/critical-pod: "" labels: name: nvidia-device-plugin-ds spec: tolerations: # This toleration is deprecated. Kept here for backward compatibility # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ - key: CriticalAddonsOnly operator: Exists - key: nvidia.com/gpu operator: Exists effect: NoSchedule # Mark this pod as a critical add-on; when enabled, the critical add-on # scheduler reserves resources for critical add-on pods so that they can # be rescheduled after a failure. # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ priorityClassName: "system-node-critical" containers: - image: nvcr.io/nvidia/k8s-device-plugin:v0.10.0 name: nvidia-device-plugin-ctr args: ["--fail-on-init-error=false"] securityContext: allowPrivilegeEscalation: false capabilities: drop: ["ALL"] volumeMounts: - name: device-plugin mountPath: /var/lib/kubelet/device-plugins volumes: - name: device-plugin hostPath: path: /var/lib/kubelet/device-plugins

WARNING: if you don’t request GPUs when using the device plugin with NVIDIA images all the GPUs on the machine will be exposed inside your container.

kubectl apply -f nvidia-device-plugin.yml

通过如下指令检查node的gpu资源

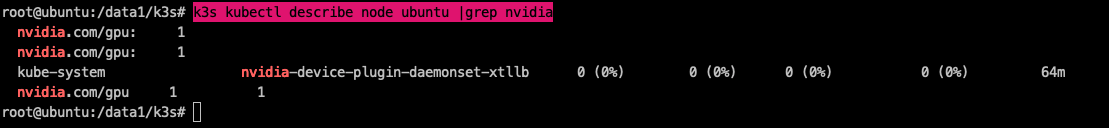

k3s kubectl describe node ubuntu |grep nvidia # 可能有几秒的延迟 如果看到的结果不理想可以通过命令查看日志 # kubectl logs -f nvidia-device-plugin-daemonset-xtllb -n kube-system

安装一个gpu的应用tensorflow测试

NodePort + SVC

tensorflow-gpu-deploy.yaml

apiVersion: apps/v1 kind: Deployment metadata: name: tensorflow-gpu spec: replicas: 1 selector: matchLabels: name: tensorflow-gpu template: metadata: labels: name: tensorflow-gpu spec: containers: - name: tensorflow-gpu image: tensorflow/tensorflow:1.15.0-py3-jupyter imagePullPolicy: Always resources: limits: # 这个必带，否则不会使用GPU 后续需要获取GPU个数再分配GPU nvidia.com/gpu: 1 ports: - containerPort: 8888

tensorflow-gpu-svc.yaml

apiVersion: v1 kind: Service metadata: name: tensorflow-gpu spec: ports: - port: 8888 targetPort: 8888 nodePort: 30888 name: jupyter selector: name: tensorflow-gpu type: NodePort

kubectl apply -f tensorflow-gpu-deploy.yaml kubectl apply -f tensorflow-gpu-svc.yaml

HostPort + HostPath

apiVersion: apps/v1 kind: Deployment metadata: name: tensorflow-gpu spec: replicas: 1 selector: matchLabels: name: tensorflow-gpu template: metadata: labels: name: tensorflow-gpu spec: containers: - name: tensorflow-gpu image: tensorflow/tensorflow:1.15.0-py3-jupyter imagePullPolicy: Always volumeMounts: - name: hostpath-tensorflow mountPath: /data2 resources: limits: # 这个必带，否则不会使用GPU 后续需要获取GPU个数再分配GPU nvidia.com/gpu: 1 ports: - containerPort: 8888 hostPort: 88 name: tensorflow protocol: TCP volumes: - name: hostpath-tensorflow hostPath: path: /data2

登录tensorflow 地址为IP:30888 token通过pod的log获取

kubectl logs -f tensorflow-gpu-67769c9f4-7vhrc

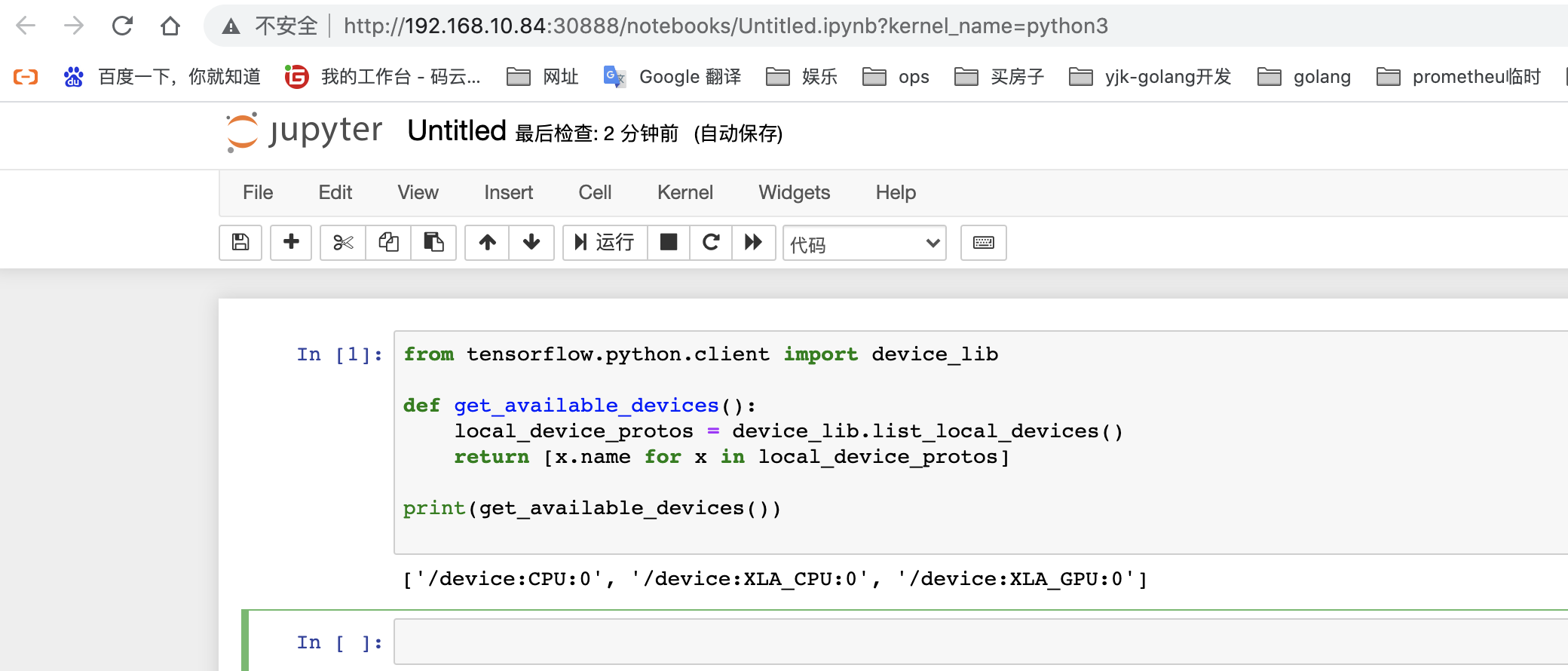

登录之后创建简单的python3任务

from tensorflow.python.client import device_lib def get_available_devices(): local_device_protos = device_lib.list_local_devices() return [x.name for x in local_device_protos] print(get_available_devices())

前后对比

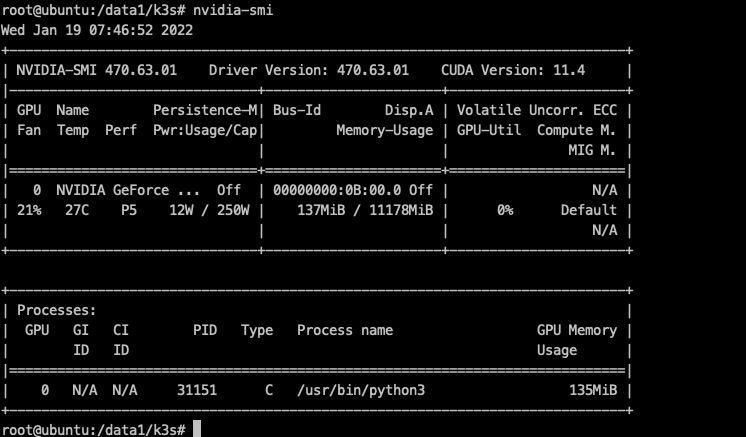

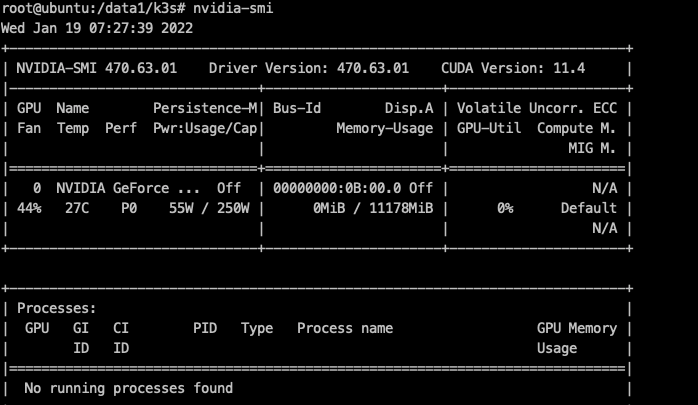

通过查看节点上的gpu运行状态看到gpu是否被正常调用

安装VGPU插件

1 首选4paradigm/k8s-device-plugin

支持k3s 虚拟GPU

k8s支持虚拟化vGPU的显存及算力

2 k8s集群可以考虑阿里开源AliyunContainerService/gpushare-scheduler-extender

暂时不支持k3s，仅支持k8s

# 检查文件 自行判断是否需要更改daemon.json 并重启docker cat > /etc/docker/daemon.json <<EOF { "default-runtime": "nvidia", "runtimes": { "nvidia": { "path": "/usr/bin/nvidia-container-runtime", "runtimeArgs": [] } }, "default-shm-size": "2G" } EOF systemctl daemon-reload systemctl restart docker

显卡虚拟化DaemonSet插件

4pdosc-nvidia-device-plugin.yml

# Copyright (c) 2019, NVIDIA CORPORATION. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. apiVersion: apps/v1 kind: DaemonSet metadata: name: nvidia-device-plugin-daemonset namespace: kube-system spec: selector: matchLabels: name: nvidia-device-plugin-ds updateStrategy: type: RollingUpdate template: metadata: # This annotation is deprecated. Kept here for backward compatibility # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ annotations: scheduler.alpha.kubernetes.io/critical-pod: "" labels: name: nvidia-device-plugin-ds spec: tolerations: # This toleration is deprecated. Kept here for backward compatibility # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ - key: CriticalAddonsOnly operator: Exists - key: nvidia.com/gpu operator: Exists effect: NoSchedule # Mark this pod as a critical add-on; when enabled, the critical add-on # scheduler reserves resources for critical add-on pods so that they can # be rescheduled after a failure. # See https://kubernetes.io/docs/tasks/administer-cluster/guaranteed-scheduling-critical-addon-pods/ priorityClassName: "system-node-critical" containers: - image: 4pdosc/k8s-device-plugin:latest # - image: m7-ieg-pico-test01:5000/k8s-device-plugin-test:v0.9.0-ubuntu20.04 imagePullPolicy: Always name: nvidia-device-plugin-ctr args: ["--fail-on-init-error=false", "--device-split-count=3", "--device-memory-scaling=3", "--device-cores-scaling=3"] env: - name: PCIBUSFILE value: "/usr/local/vgpu/pciinfo.vgpu" securityContext: allowPrivilegeEscalation: false capabilities: drop: ["ALL"] volumeMounts: - name: device-plugin mountPath: /var/lib/kubelet/device-plugins - name: vgpu-dir mountPath: /usr/local/vgpu volumes: - name: device-plugin hostPath: path: /var/lib/kubelet/device-plugins - name: vgpu-dir hostPath: path: /usr/local/vgpu

在这个DaemonSet文件中, 你能发现nvidia-device-plugin-ctr容器有一共4个vGPU的客制化参数：

• fail-on-init-error: 布尔类型, 预设值是true。当这个参数被设置为true时，如果装置插件在初始化过程遇到错误时程序会返回失败，当这个参数被设置为false时，遇到错误它会打印信息并且持续阻塞插件。持续阻塞插件能让装置插件即使部署在没有GPU的节点（也不应该有GPU）也不会抛出错误。这样你在部署装置插件在你的集群时就不需要考虑节点是否有GPU，不会遇到报错的问题。然而，这么做的缺点是如果GPU节点的装置插件因为一些原因执行失败，将不容易察觉。现在预设值为当初始化遇到错误时程序返回失败，这个做法应该被所有全新的部署采纳。
• device-split-count: 整数类型，预设值是2。NVIDIA装置的分割数。对于一个总共包含N张NVIDIA GPU的Kubernetes集群，如果我们将device-split-count参数配置为K，这个Kubernetes集群将有K * N个可分配的vGPU资源。注意，我们不建议将NVIDIA 1080 ti/NVIDIA 2080 ti device-split-count参数配置超过5，将NVIDIA T4配置超过7，将NVIDIA A100配置超过15。
• device-memory-scaling: 浮点数类型，预设值是1。NVIDIA装置显存使用比例，可以大于1（启用虚拟显存，实验功能）。对于有M显存大小的NVIDIA GPU，如果我们配置device-memory-scaling参数为S，在部署了我们装置插件的Kubenetes集群中，这张GPU分出的vGPU将总共包含 S * M显存。每张vGPU的显存大小也受device-split-count参数影响。在先前的例子中，如果device-split-count参数配置为K，那每一张vGPU最后会取得 S * M / K 大小的显存。
• device-cores-scaling: 浮点数类型，预设值与device-split-count数值相同。NVIDIA装置算力使用比例，可以大于1。如果device-cores-scaling参数配置为S device-split-count参数配置为K，那每一张vGPU对应的一段时间内 sm 利用率平均上限为S / K。属于同一张物理GPU上的所有vGPU sm利用率总和不超过1。
• enable-legacy-preferred: 布尔类型，预设值是false。对于不支持 PreferredAllocation 的kublet（<1.19）可以设置为true，更好的选择合适的device，开启时，本插件需要有对pod的读取权限，可参看 legacy-preferred-nvidia-device-plugin.yml。对于 kubelet >= 1.9 时，建议关闭。

用于测试的deployment文件

vgpu-deploy.yaml

注意: 如果你使用插件装置时，如果没有请求vGPU资源，那容器所在机器的所有vGPU都将暴露给容器。

apiVersion: apps/v1 kind: Deployment metadata: name: tensorflow-gpu spec: replicas: 1 selector: matchLabels: name: tensorflow-gpu template: metadata: labels: name: tensorflow-gpu spec: containers: - name: ubuntu-container image: ubuntu:18.04 command: ["bash", "-c", "sleep 86400"] resources: limits: nvidia.com/gpu: 1 # 请求1个vGPUs 默认一张卡只能拆为2个，如需要修改需要修改ds中device-split-count参数，device-split-count: 整数类型，预设值是2。NVIDIA装置的分割数。对于一个总共包含N张NVIDIA GPU的Kubernetes集群，如果我们将device-split-count参数配置为K，这个Kubernetes集群将有K * N个可分配的vGPU资源。注意，我们不建议将NVIDIA 1080 ti/NVIDIA 2080 ti device-split-count参数配置超过5，将NVIDIA T4配置超过7，将NVIDIA A100配置超过15。 - name: tensorflow-gpu image: tensorflow/tensorflow:1.15.0-py3-jupyter imagePullPolicy: Always resources: limits: nvidia.com/gpu: 1 # 请求1个vGPUs ports: - containerPort: 8888 --- apiVersion: v1 kind: Service metadata: name: tensorflow-gpu spec: ports: - port: 8888 targetPort: 8888 nodePort: 30888 name: jupyter selector: name: tensorflow-gpu type: NodePort

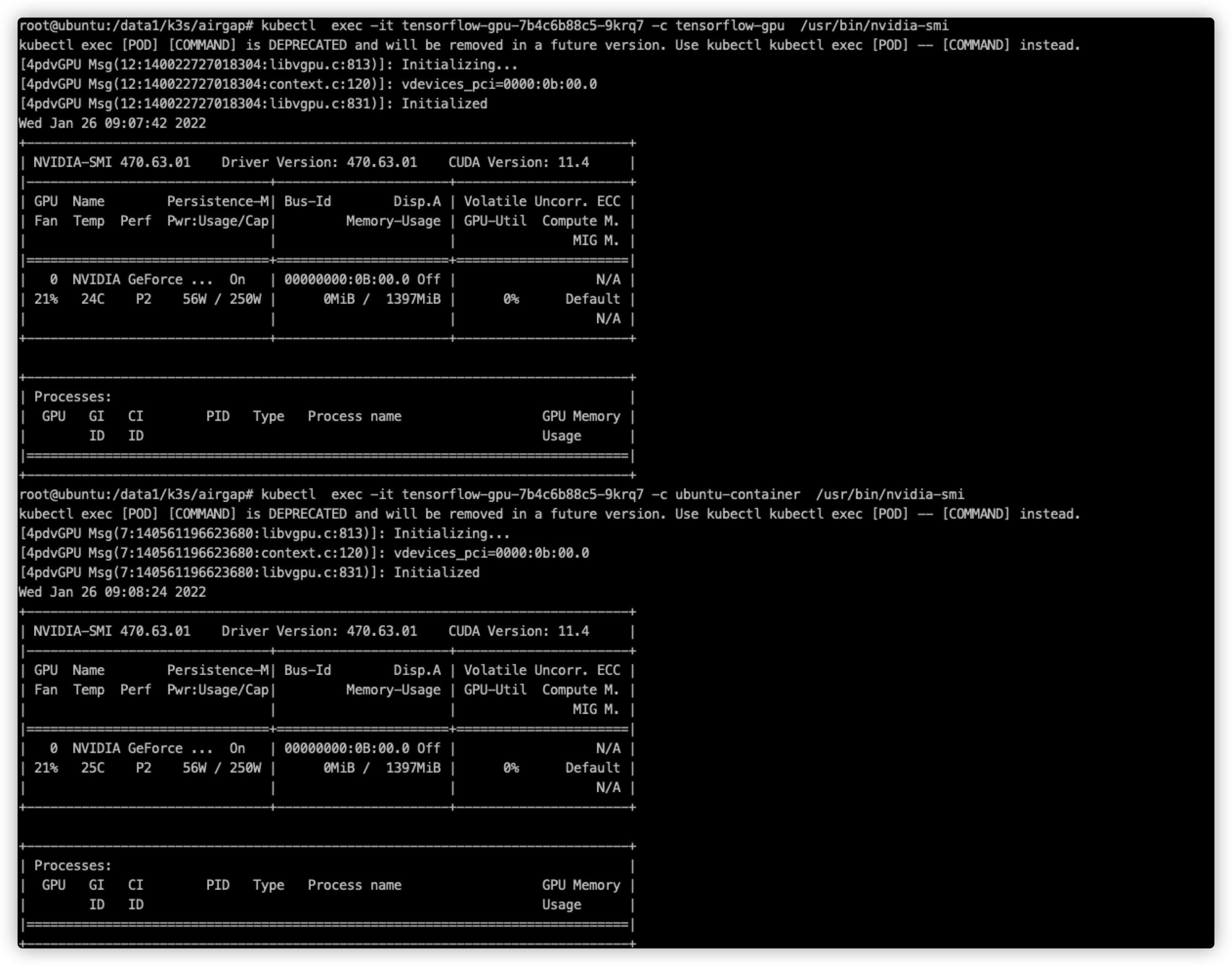

2个container都能看到nvidia-smi

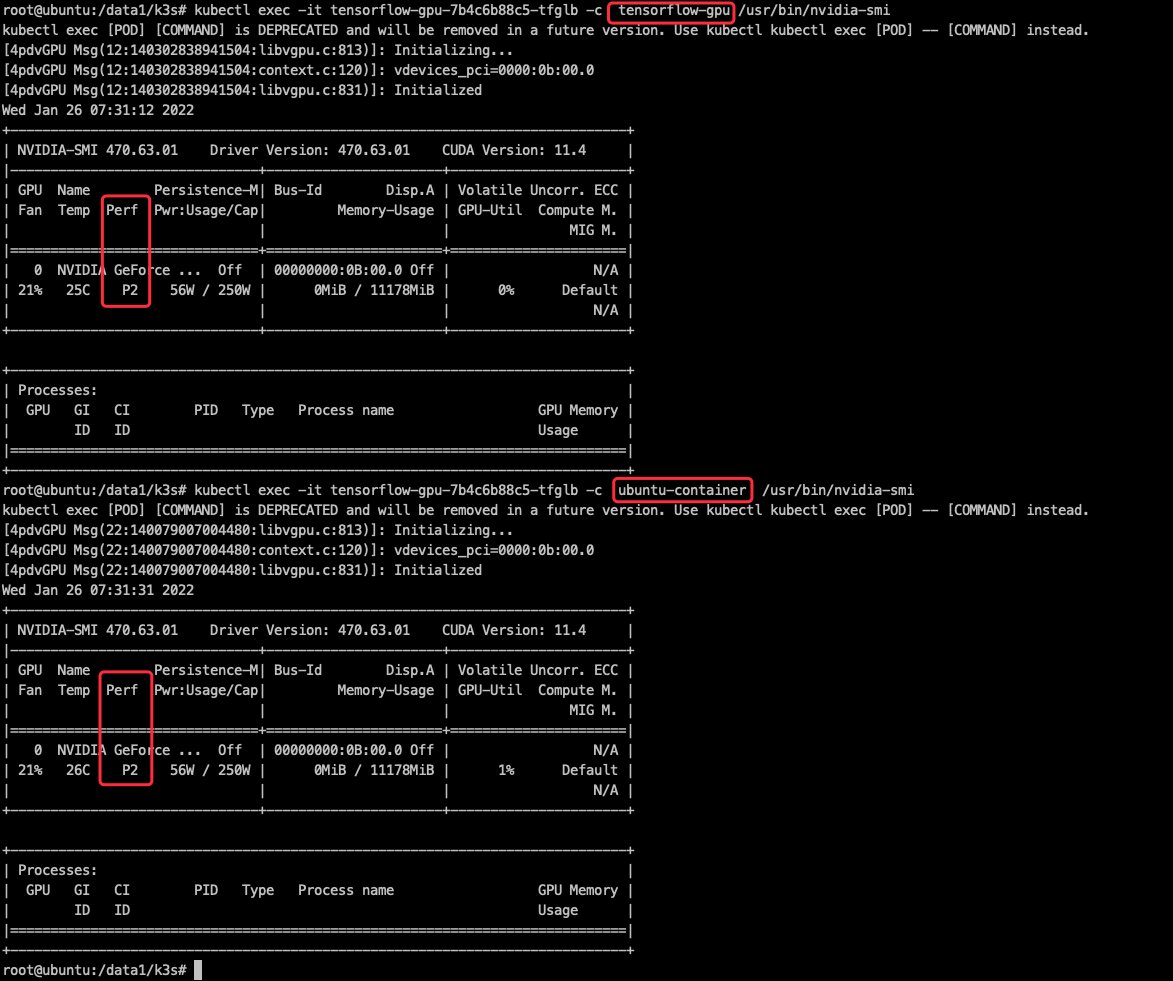

这里可以考虑将每个vgpu的perf调到p12 最小性能

pwr需开启

设置daemonset参数如下

分配显存算力GPU为1/8

args: ["--fail-on-init-error=false", "--device-split-count=8", "--device-memory-scaling=1", "--device-cores-scaling=1"]

卸载k3s

/usr/local/bin/k3s-uninstall.sh

网络转发

Ingress controller hostport + nginx

补充

更新镜像

# deployment更新会新起pod 因为端口和GPU资源等问题会无法启动新的pod 需要先把deploy的replicas缩容为0 kubectl scale deploy tensorflow-gpu --replicas=0 # 确认deployment对应pod剔除之后再应用新的yaml kubectl get pods kubectl apply -f tensorflow-gpu-deploy.yaml

k3s日志路径

/var/log/syslog

查看k3s服务状态

# 会根据系统是否支持systemctl创建对应服务 systemctl status k3s

设置 Local Storage Provider

创建一个由 hostPath 支持的持久卷声明和一个使用它的 pod：

默认存储在/var/lib/rancher/k3s/storage/ 需要注意accessModes

pvc.yaml

apiVersion: v1 kind: PersistentVolumeClaim metadata: name: local-path-pvc namespace: default spec: accessModes: - ReadWriteOnce storageClassName: local-path resources: requests: storage: 2Gi

pod.yaml

apiVersion: v1 kind: Pod metadata: name: volume-test namespace: default spec: containers: - name: volume-test image: nginx:stable-alpine imagePullPolicy: IfNotPresent volumeMounts: - name: volv mountPath: /data ports: - containerPort: 80 volumes: - name: volv persistentVolumeClaim: claimName: local-path-pvc

使用 crictl 清理未使用的镜像

k3s crictl rmi --prune

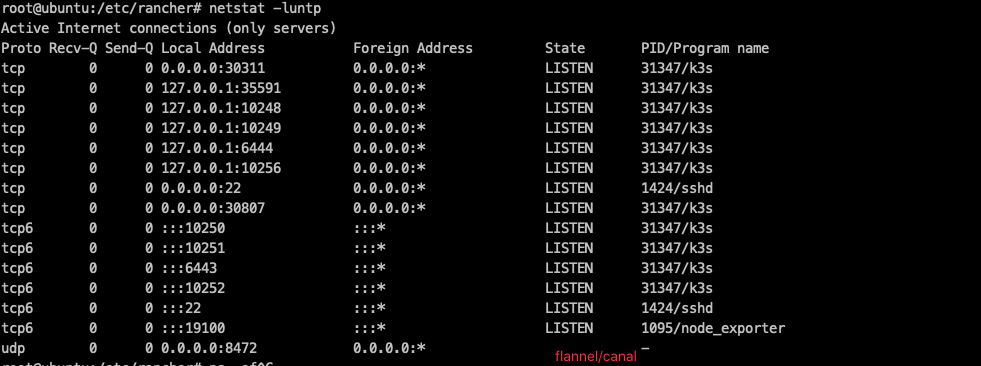

端口

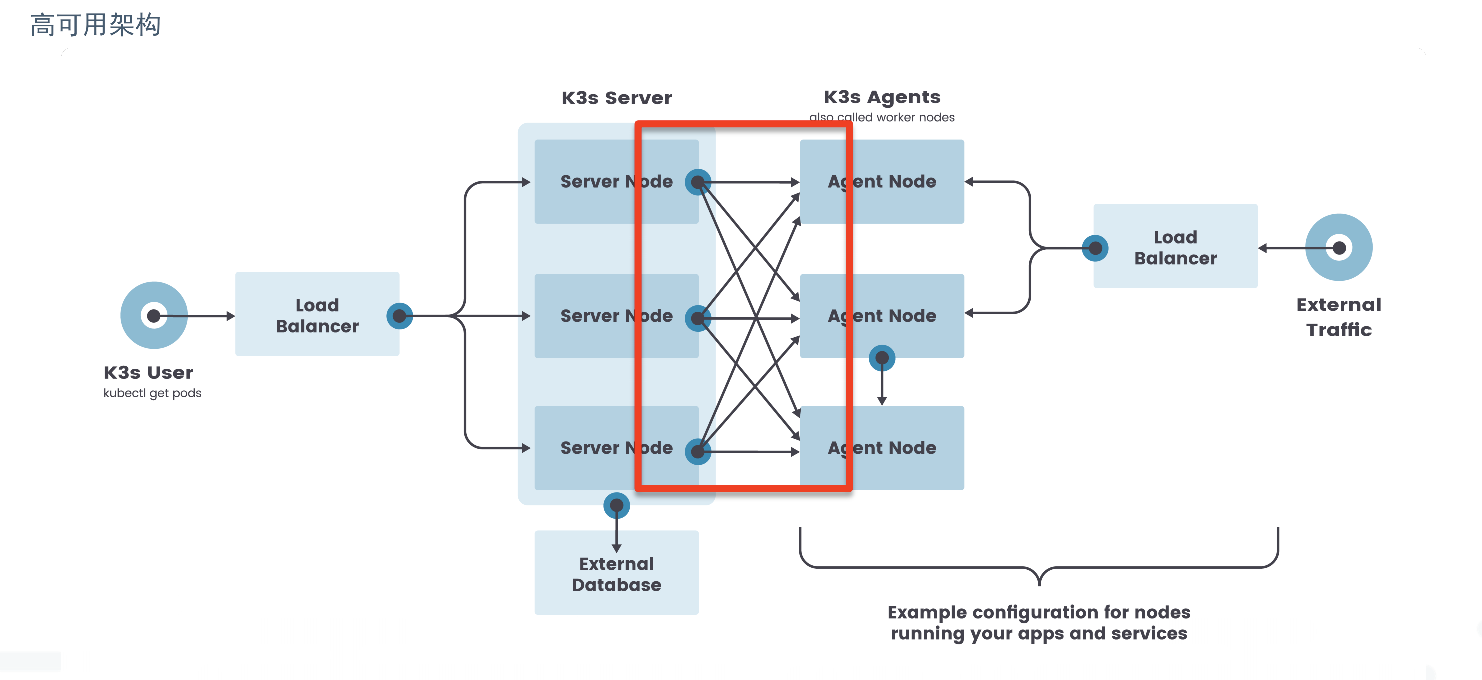

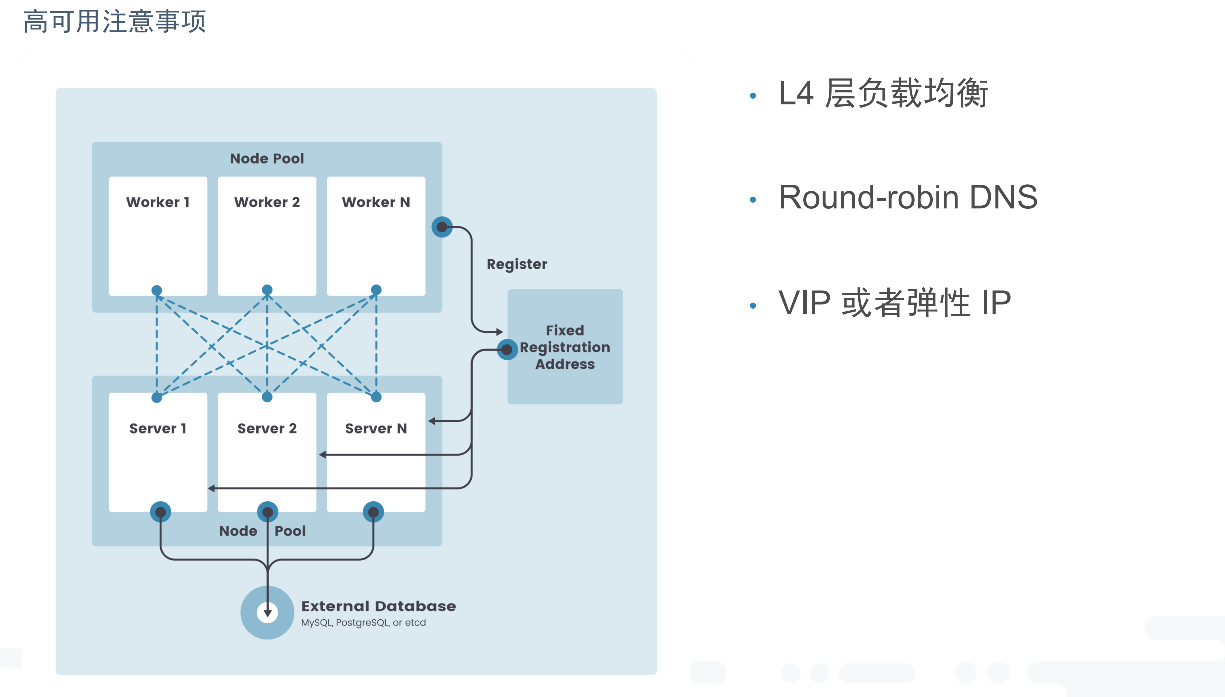

（拓展）k3s高可用

需要vip或弹性ip

使用mysql

docker run --name mysql5.7 --net host --restart=always -e MYSQL_ROOT_PASSWORD=root -d mysql:5.7--lower_case_table_names=1 #创建数据库

# "mysql://username:password@tcp(hostname:3306)/database-name" export INSTALL_K3S_EXEC="--datastore-endpoint=mysql://root:root@tcp(172.17.0.150:3306)/k3s --docker --kube-apiserver-arg service-node-port-range=1-65000 --no-deploy traefik --write-kubeconfig ~/.kube/config --write-kubeconfig-mode 666"

nginx配置

stream { upstream k3sList { server 172.17.0.151:6443; server 172.17.0.152:6443; } server { listen 6443; proxy_pass k3sList; } }

rancherUI管理

docker run -d -v /data/docker/rancher-server/var/lib/rancher/:/var/lib/rancher/ --restart=unless-stopped --name rancher-server -p 9443:443 rancher/rancher:v2.3.10

docker配置优化

exec-opts": ["native.cgroupdriver=systemd"] # Kubernetes 推荐使用 systemd 来代替 cgroupfs因为systemd是Kubernetes自带的cgroup管理器, 负责为每个进程分配cgroups, 但docker的cgroup driver默认是cgroupfs,这样就同时运行有两个cgroup控制管理器, 当资源有压力的情况时,有可能出现不稳定的情况
