人脸识别业务（基于腾讯人脸识别接口）

大家好，欢迎来到IT知识分享网。

使用腾讯云人脸识别接口，基于优图祖母模型。

一、准备工作

人脸识别账号

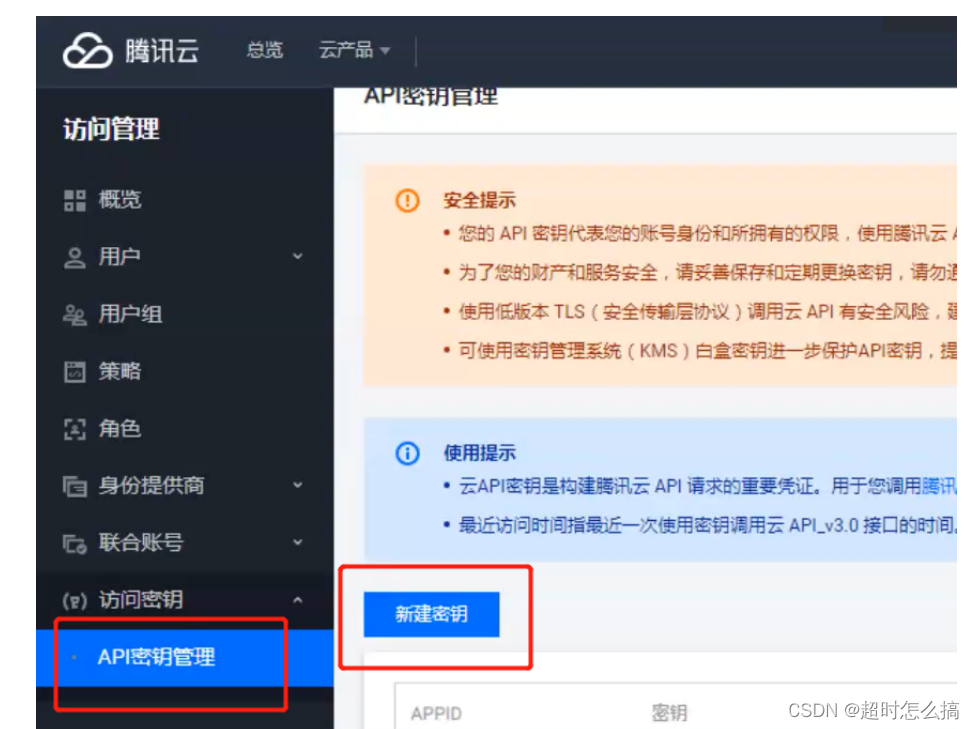

申请腾讯云服务器账号，生成自己的秘钥。记录秘钥和秘钥ID。

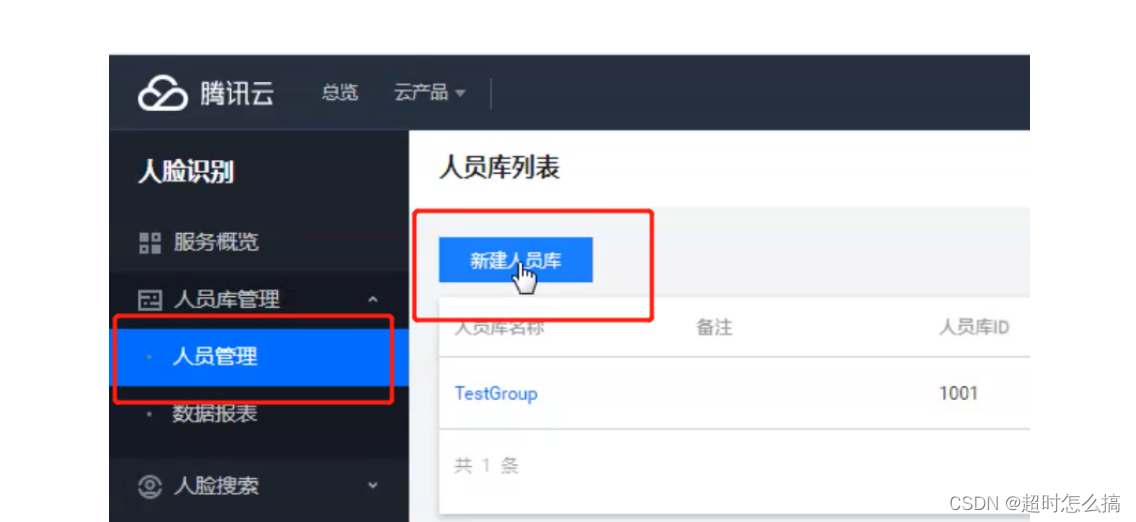

创建人员库

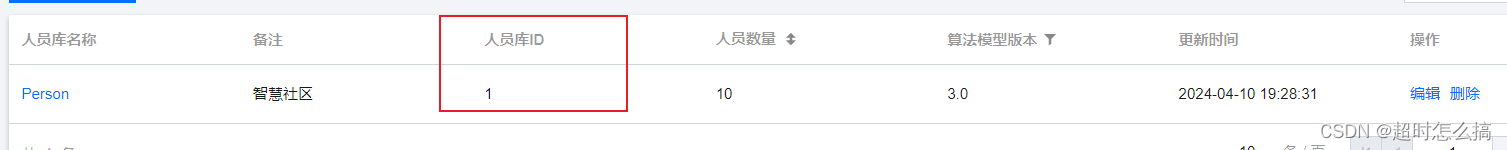

记下人员库id

在配置文件application.yml中添加配置。

plateocr: SecretId: 秘钥ID SecretKey: 秘钥 serverIp: iai.tencentcloudapi.com area: ap-guangzhou #人脸识别服务器所在区域，官方推荐就近 groupId: 1 #刚才创建的人脸库ID used: true #表示人脸识别是否开启 passPercent: 80 #通过率，相似率到达多少算通过 nonceStr:  #随机数

二、录入人脸的类

需要用到的类：

1.Base64Util ：自己写的base64工具类，用于将base64解码写到本地磁盘。

package com.qcby.mycommunity_003.util; import org.apache.commons.codec.binary.Base64; import java.io.*; import java.net.HttpURLConnection; import java.net.URL; public class Base64Util { / * 将二进制数据编码为BASE64字符串 * * @param binaryData * @return */ public static String encode(byte[] binaryData) { try { return new String(Base64.encodeBase64(binaryData), "UTF-8"); } catch (UnsupportedEncodingException e) { return null; } } / * 将BASE64字符串恢复为二进制数据 * * @param base64String * @return */ public static byte[] decode(String base64String) { try { return Base64.decodeBase64(base64String.getBytes("UTF-8")); } catch (UnsupportedEncodingException e) { return null; } } / * 将文件转成base64 字符串 * * path文件路径 * @return * * @throws Exception */ public static String encodeBase64File(String path) throws Exception { File file = new File(path); FileInputStream inputFile = new FileInputStream(file); byte[] buffer = new byte[(int) file.length()]; inputFile.read(buffer); inputFile.close(); return encode(buffer); } //读取网络图片 public static String encodeBase64URLFile(String path) throws Exception { URL url = new URL(path); HttpURLConnection conn = (HttpURLConnection)url.openConnection(); conn.setRequestMethod("GET"); conn.setConnectTimeout(5*1000); InputStream is = conn.getInputStream(); byte[] data = readInputStream(is); is.close(); conn.disconnect(); return encode(data); } public static byte[] readInputStream(InputStream inStream) throws Exception{ ByteArrayOutputStream outStream = new ByteArrayOutputStream(); //创建一个Buffer字符串 byte[] buffer = new byte[1024]; //每次读取的字符串长度，如果为-1，代表全部读取完毕 int len = 0; //使用一个输入流从buffer里把数据读取出来 while( (len=inStream.read(buffer)) != -1 ){ //用输出流往buffer里写入数据，中间参数代表从哪个位置开始读，len代表读取的长度 outStream.write(buffer, 0, len); } //关闭输入流 inStream.close(); //把outStream里的数据写入内存 return outStream.toByteArray(); } / * 将base64字符解码保存文件 * * @param base64Code * @param targetPath * @throws Exception */ public static void decoderBase64File(String base64Code, String targetPath) throws Exception { byte[] buffer = decode(base64Code); FileOutputStream out = new FileOutputStream(targetPath); out.write(buffer); out.close(); } / * 将base64字符保存文本文件 * * @param base64Code * @param targetPath * @throws Exception */ public static void toFile(String base64Code, String targetPath) throws Exception { byte[] buffer = base64Code.getBytes(); FileOutputStream out = new FileOutputStream(targetPath); out.write(buffer); out.close(); } }

2.RootResp 类，封装腾讯人脸识别返回的信息。

 import com.alibaba.fastjson.JSON; public class RootResp { //腾讯api返回的状态码，如果是0代表添加成功，否则会有异常码 private int ret = 0; public int getRet() { return this.ret; } public void setRet(int ret) { this.ret = ret; } private String msg; public String getMsg() { return this.msg; } public void setMsg(String msg) { this.msg = msg; } private Object data; public Object getData() { return this.data; } public void setData(Object data) { this.data = data; } @Override public String toString() { return JSON.toJSONString(this); } }

 3.FaceApi ：调用api接口

import com.alibaba.fastjson.JSONArray; import com.alibaba.fastjson.JSONObject; import com.qcby.mycommunity_003.configuration.ApiConfiguration; import com.tencentcloudapi.common.Credential; import com.tencentcloudapi.common.exception.TencentCloudSDKException; import com.tencentcloudapi.common.profile.ClientProfile; import com.tencentcloudapi.common.profile.HttpProfile; import com.tencentcloudapi.iai.v.IaiClient; import com.tencentcloudapi.iai.v.models.*; import org.apache.log4j.Logger; public class FaceApi { private Logger logger = Logger.getLogger(FaceApi.class); //人脸分析 public RootResp detectFace(ApiConfiguration config, String url) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); paramObj.put("Url", url); paramObj.put("MaxFaceNum",1); paramObj.put("MinFaceSize",34); paramObj.put("NeedFaceAttributes",0); paramObj.put("NeedQualityDetection",1); DetectFaceRequest req = DetectFaceRequest.fromJsonString(paramObj.toJSONString(),DetectFaceRequest.class); DetectFaceResponse resp = client.DetectFace(req); result.setData(DetectFaceResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //添加个体 public RootResp newperson(ApiConfiguration config, String personId, String personName, String image) { RootResp result = new RootResp(); try{ //访问腾讯云服务所需要的秘钥信息，进行身份验证和授权凭证 Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); //设置与腾讯云服务通信的http配置 HttpProfile httpProfile = new HttpProfile(); //配置接口请求域名 httpProfile.setEndpoint(config.getServerIp()); //配置客户端相关参数，包括http配置 ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); //和腾讯云人脸服务进行通信 IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); paramObj.put("GroupId", config.getGroupId()); paramObj.put("PersonId", config.getPersonIdPre() + personId); paramObj.put("PersonName", personName); paramObj.put("Image", image); //调取创建person的请求 CreatePersonRequest req = CreatePersonRequest.fromJsonString(paramObj.toJSONString(), CreatePersonRequest.class); //响应回来的数据转成json CreatePersonResponse resp = client.CreatePerson(req); result.setData(CreatePersonResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //删除个体 public RootResp delperson(ApiConfiguration config, String personId) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); paramObj.put("PersonId", config.getPersonIdPre() + personId); DeletePersonRequest req = DeletePersonRequest.fromJsonString(paramObj.toJSONString(), DeletePersonRequest.class); DeletePersonResponse resp = client.DeletePerson(req); result.setData(DeletePersonResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //增加人脸 public RootResp addface(ApiConfiguration config, String personId, String image) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); JSONArray images = new JSONArray(); images.add(image); paramObj.put("PersonId", config.getPersonIdPre() + personId); paramObj.put("Images", images); CreateFaceRequest req = CreateFaceRequest.fromJsonString(paramObj.toJSONString(), CreateFaceRequest.class); CreateFaceResponse resp = client.CreateFace(req); result.setData(CreateFaceResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //删除人脸 public RootResp delface(ApiConfiguration config, String personId, String faceId) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); JSONArray faces = new JSONArray(); faces.add(faceId); paramObj.put("PersonId", config.getPersonIdPre() + personId); paramObj.put("FaceIds", faces); DeleteFaceRequest req = DeleteFaceRequest.fromJsonString(paramObj.toJSONString(), DeleteFaceRequest.class); DeleteFaceResponse resp = client.DeleteFace(req); result.setData(DeleteFaceResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //人脸验证 public RootResp faceVerify(ApiConfiguration config, String personId, String image) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); paramObj.put("PersonId", config.getPersonIdPre() + personId); paramObj.put("Image", image); VerifyFaceRequest req = VerifyFaceRequest.fromJsonString(paramObj.toJSONString(), VerifyFaceRequest.class); VerifyFaceResponse resp = client.VerifyFace(req); result.setData(VerifyFaceResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } //人员搜索按库返回 public RootResp searchPersonsReturnsByGroup(ApiConfiguration config, String image) { RootResp result = new RootResp(); try{ Credential cred = new Credential(config.getSecretId(), config.getSecretKey()); HttpProfile httpProfile = new HttpProfile(); httpProfile.setEndpoint(config.getServerIp()); ClientProfile clientProfile = new ClientProfile(); clientProfile.setHttpProfile(httpProfile); IaiClient client = new IaiClient(cred, config.getArea(), clientProfile); JSONObject paramObj = new JSONObject(); paramObj.put("GroupIds", new String[] {config.getGroupId()}); paramObj.put("Image", image); //最多返回的最相似人员数目 paramObj.put("MaxPersonNumPerGroup", 5); //返回人员具体信息 paramObj.put("NeedPersonInfo", 1); //最多识别的人脸数目 paramObj.put("MaxFaceNum", 1); SearchFacesReturnsByGroupRequest req = SearchFacesReturnsByGroupRequest.fromJsonString(paramObj.toJSONString(), SearchFacesReturnsByGroupRequest.class); SearchFacesReturnsByGroupResponse resp = client.SearchFacesReturnsByGroup(req); result.setData(VerifyFaceResponse.toJsonString(resp)); } catch (TencentCloudSDKException e) { result.setRet(-1); result.setMsg(e.toString()); logger.error(e.toString()); } logger.info(result); return result; } }

4.ApiConfiguration ：封装配置信息（调用腾讯接口需要的部分参数）

import io.swagger.annotations.ApiModel; import io.swagger.annotations.ApiModelProperty; import lombok.Data; import org.springframework.boot.context.properties.ConfigurationProperties; import org.springframework.stereotype.Component; @ConfigurationProperties(value="plateocr") @Component @Data @ApiModel(value = "ApiConfiguration",description = "人脸识别参数描述") public class ApiConfiguration { @ApiModelProperty("人脸识别secretId") private String secretId; @ApiModelProperty("人脸识别secretKey") private String secretKey; // 服务器ip @ApiModelProperty("人脸识别服务器ip") private String serverIp; // 服务器区域 @ApiModelProperty("人脸识别服务器区域") private String area; // 默认分组 @ApiModelProperty("人脸识别默认分组") private String groupId; // 用户id前缀，这个属性在配置文件里面没有 @ApiModelProperty("人脸识别用户id前缀") private String personIdPre; // 随机数 @ApiModelProperty("人脸识别随机数") private String nonceStr; // 是否使用 @ApiModelProperty("人脸识别，是否启用人脸识别功能") private boolean used = false; // 识别准确率 @ApiModelProperty("人脸识别比对准确度，如符合80%就识别通过") private float passPercent; }

 5.表现层代码

@PostMapping("/addPerson") public Result addFace(@RequestBody AddFaceVo personFaceForm){ //1============严谨性判断 Person person = personService.getById(personFaceForm.getPersonId()); if(person==null){ return Result.error("居民不存在"); } if(personFaceForm.getFileBase64()==null||personFaceForm.getFileBase64().equals("")){ return Result.error("请上传base64编码的文件"); } //1.腾讯接口使用的是腾讯优图祖母模型， if(apiConfiguration.isUsed()){ //方法一：调用腾讯api识别。 String faceId = newPerson(personFaceForm, person.getUserName()); String faceBase = personFaceForm.getFileBase64().substring(0, 60); // 方法二：自己模拟判断是不是人脸图片： // String faceId = RandomUtil.getBitRandom(); //如果不是头像(这一行如果不注释就报错) // if(faceBase.equals("iVBORw0KGgoAAAANSUhEUgAAAoAAAAHgCAYAAAA10dzkAAAAAXNSR0IArs4c")) { // return Result.error("人脸识别失败"); // } //2.存到本地的文件夹内 // //存储头像 String filename = faceId + "." + personFaceForm.getExtName(); // String savePath = face + filename; // try { // Base64Util.decoderBase64File(personFaceForm.getFileBase64(), savePath); // } catch (Exception e) { // e.printStackTrace(); // } //这是方法一结束*： //生成头像访问路径 String faceUrl = urlPrefix + "community/upload/face/" + filename; person.setFaceUrl(faceUrl); person.setState(2); person.setFaceBase(faceBase); //3.存到数据库中（包括base64编码存储） //更新人脸识别状态及图片地址 this.personService.updateById(person); return Result.ok(); } return Result.error("未开启人脸识别"); } / * 腾讯api接口相关 * @param vo * @param personName * @return */ private String newPerson(AddFaceVo vo,String personName) { String faceId = null; String faceBase64 = vo.getFileBase64(); String extname = vo.getExtName(); String personId = vo.getPersonId()+""; String savePath = face; if (faceBase64!=null && !faceBase64.equals("")) { FaceApi faceApi = new FaceApi(); RootResp resp = faceApi.newperson(apiConfiguration, personId, personName, faceBase64); if(resp.getRet()==0) { JSONObject data = JSON.parseObject(resp.getData().toString()); faceId = data.getString("FaceId"); if(faceId!=null) { String filename = faceId + "." + extname; savePath += filename; try { //调用自定义工具类，将base64编码文件解码，并报存在指定路径 Base64Util.decoderBase64File(faceBase64, savePath); } catch (Exception e) { e.printStackTrace(); } } } else { return faceId; } } return faceId; }

6.接收前端传递参数的类

import lombok.Data; @Data public class AddFaceVo { private Integer personId; private String extName; private String fileBase64; }

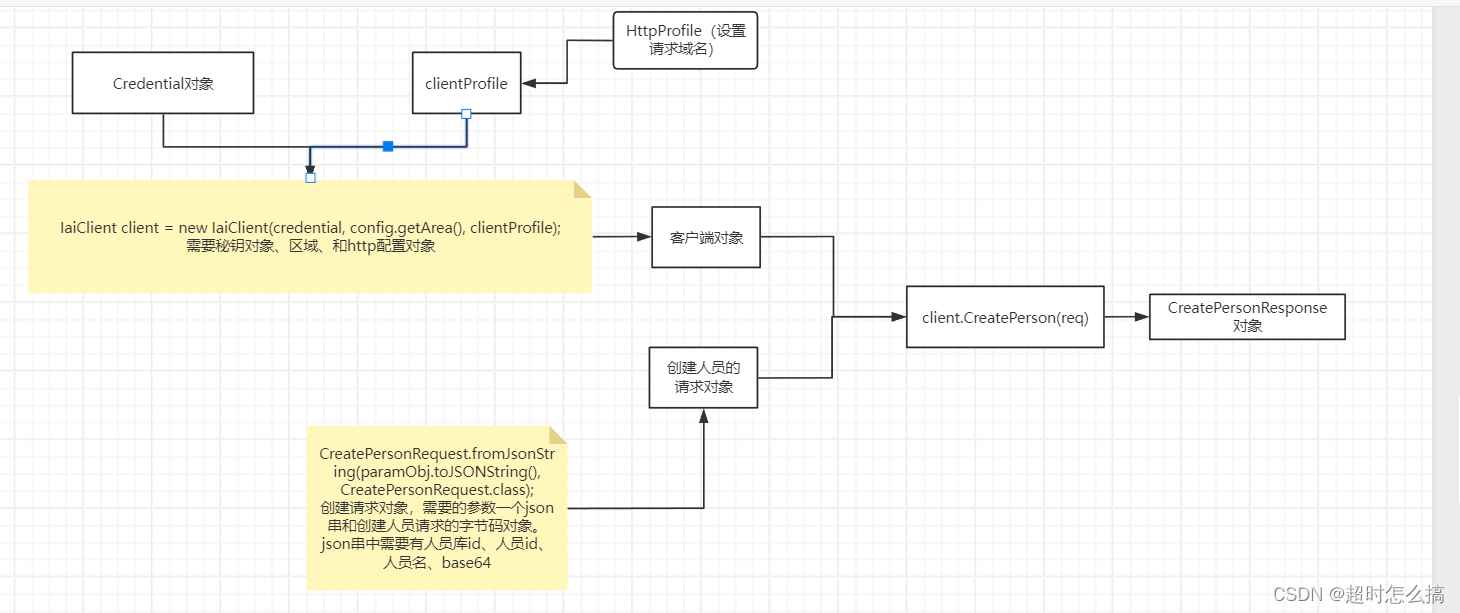

三、录入人脸的流程

1.调用腾讯api

调用api需要的参数有：

配置文件中配置的秘钥、秘钥id、服务器ip、区域、人脸库id、是否开启、精确度、随机数

人员id、人员姓名、图片的base64码

2.如果腾讯接口返回的状态码是0，就说明保存成功，将图片存到本地。

3.更新数据库，存base64编码。

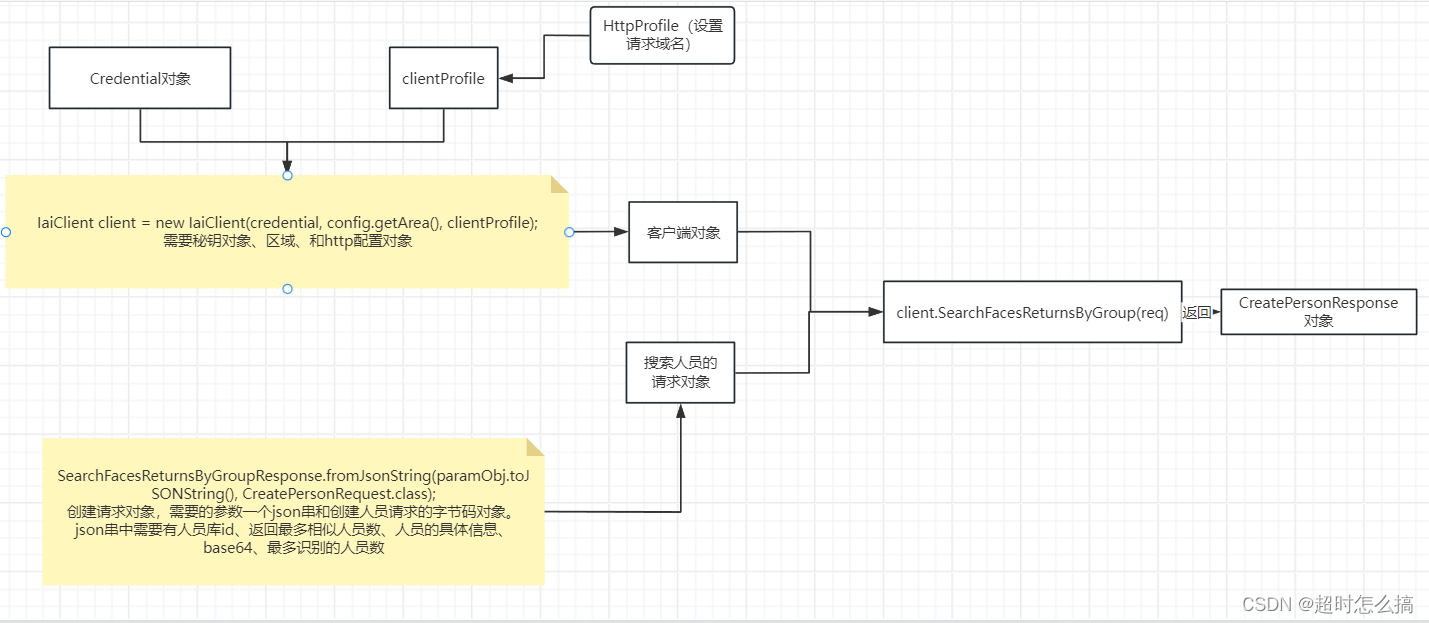

四、人脸识别

1.表现层代码

 //1判断是不是在人员库存在) // （1）调用腾讯AI接口( FaceApi faceApi = new FaceApi(); RootResp resp = faceApi.searchPersonsReturnsByGroup(apiConfiguration, inOutFaceForm.getFileBase64()); String msg = ""; // 封装人员信息的json对象 JSONObject personInfo = null; // （2）根据状态码，如果是0就是在人员库 if(resp.getRet() == 0) { JSONObject object = JSONObject.parseObject(resp.getData().toString()); JSONArray resultsReturnsByGroup = object.getJSONArray("ResultsReturnsByGroup"); JSONObject returnsByGroupJSONObject = resultsReturnsByGroup.getJSONObject(0); JSONArray groupCandidates = returnsByGroupJSONObject.getJSONArray("GroupCandidates"); JSONObject groupCandidatesJSONObject = groupCandidates.getJSONObject(0); JSONArray candidates = groupCandidatesJSONObject.getJSONArray("Candidates"); // （3）拿到全部人员库对象，匹配数据库人员信息 String personId =""; String faceId = ""; String personName = ""; String faceUrl = ""; long pid = 0; Person p = null, p1 = null; for(int i = 0;i < candidates.size();i++) { personInfo= candidates.getJSONObject(i); personId = personInfo.getString("PersonId"); faceId = personInfo.getString("FaceId"); personName = personInfo.getString("PersonName"); personId = personId.substring(4); pid = Integer.parseInt(personId); p = personService.getById(pid); if(p == null) continue; else p1 = p; faceUrl = p.getFaceUrl(); if(faceUrl == null || faceUrl.equals("")){ continue; } faceUrl = faceUrl.substring(faceUrl.lastIndexOf("/")+1,faceUrl.lastIndexOf(".")); if(faceId.equals(faceUrl)) { break; } } // (4) if(p==null) { return Result.ok().put("data","人员信息不存在"); } if(inOutFaceForm.getCommunityId() != p.getCommunityId()) { return Result.ok().put("data","对不起，你不是本小区居民，请与系统管理员联系。"); } // (5)创建出入记录对象，封装 InOutRecord inoutrecord = new InOutRecord(); inoutrecord.setCommunityId(p.getCommunityId()); inoutrecord.setPersonId(p.getPersonId()); try { //保存图片 String newFileName = UUID.randomUUID()+"." + inOutFaceForm.getExtName(); String fileName = face + newFileName; Base64Util.decoderBase64File(inOutFaceForm.getFileBase64(),fileName); String basePath = urlPrefix + "community/upload/face/" + newFileName; //查找系统中是否有该人员的出入场信息 InOutRecord inoutrecord1 = this.inOutRecordMapper.getInOutRecord(inoutrecord); // （6）根据出去等于null来查，如果查不到就新建一个对象，查到了就是出去小区 //进入小区 if(inoutrecord1 == null) { inoutrecord.setInPic(basePath); this.inOutRecordMapper.insert(inoutrecord); return Result.ok().put("status", "success").put("data", "【"+p.getUserName() + "】进入小区"); //离开小区 } else { inoutrecord1.setOutPic(basePath); inoutrecord1.setOutTime(new Date()); this.inOutRecordMapper.updateById(inoutrecord1); return Result.ok().put("status", "success").put("data", "【"+p.getUserName() + "】离开小区"); } } catch (Exception e) { e.printStackTrace(); } }else{ msg = "人脸识别失败,错误码=" + resp.getRet() + "," + resp.getMsg(); } return Result.ok().put("data",msg);

五、人脸识别流程

1.调用腾讯接口进行比对

2.根据状态码，判断是不是存在相似度通过的人脸。如果存在就和根据查找到的人员id来查找数据库中对应的id的人员的姓名。如果姓名也和人员库返回的一致就通过。

3.如需做进出登记，就在进出登记数据表中存入信息。

如果本id下是有“出”是null的就表示改人员是出小区，否则就新建一条记录，表示进小区。
