通过cri-o部署k8s集群环境

大家好，欢迎来到IT知识分享网。

目录

一.基础环境配置（每个节点都做）

1.hosts解析

2.防火墙和selinux

3.安装基本软件并配置时间同步

4.禁用swap分区

5.更改内核参数

6.配置ipvs

7.k8s下载

（1）配置镜像下载相关软件

（2）配置kubelet上的cgroup

二.下载cri-o包（所有节点做）

1.在线下载

2.本地下载

三.配置文件（所有节点做）

1.修改crio配置文件

2.修改kubelet参数（所有节点做）

3.重启crio和kubelet

四.master节点初始化（master节点做）

五.node节点加入（node节点做）

六.添加网络插件（master节点做）

1.应用calico.yaml

2.查看验证

七.配置kubectl命令补全

一.基础环境配置（每个节点都做）

1.hosts解析

[root@master ~]# tail -3 /etc/hosts 192.168.2.190 master 192.168.2.191 node2-191.com 192.168.2.193 node4-193.com

2.防火墙和selinux

[root@master ~]# systemctl status firewalld.service;getenforce ● firewalld.service - firewalld - dynamic firewall daemon   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)   Active: inactive (dead)     Docs: man:firewalld(1) Disabled #临时 systemctl stop firewalld setenforce 0 #禁用 systemctl disable firewalld sed -i '/^SELINUX=/ c SELINUX=disabled' /etc/selinux/config

3.安装基本软件并配置时间同步

[root@master ~]# yum install -y wget tree bash-completion lrzsz psmisc net-tools vim chrony [root@master ~]# vim /etc/chrony.conf :3,6 s/^/#     #注释掉原有行 server ntp1.aliyun.com iburst [root@node1-190 ~]# systemctl restart chronyd [root@node1-190 ~]# chronyc sources 210 Number of sources = 1 MS Name/IP address         Stratum Poll Reach LastRx Last sample               =============================================================================== ^* 120.25.115.20                 2   8   341   431   -357us[ -771us] +/-   20ms

4.禁用swap分区

[root@master ~]# swapoff -a && sed -i 's/.*swap.*/#&/' /etc/fstab && free -m             total       used       free     shared buff/cache   available Mem:         10376         943       8875         11         557       9178 Swap:             0           0           0

5.更改内核参数

[root@node1-190 ~]# cat >> /etc/sysctl.conf << EOF vm.swappiness=0 net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 net.ipv4.ip_forward = 1 EOF [root@node1-190 ~]# modprobe br_netfilter && modprobe overlay && sysctl -p vm.swappiness = 0 net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 net.ipv4.ip_forward = 1

6.配置ipvs

[root@node1-190 ~]# yum install ipset ipvsadm -y [root@node1-190 ~]# cat <<EOF > /etc/sysconfig/modules/ipvs.modules #!/bin/bash modprobe -- ip_vs modprobe -- ip_vs_rr modprobe -- ip_vs_wrr modprobe -- ip_vs_sh modprobe -- nf_conntrack EOF # 为脚本文件添加执行权限并运行，验证是否加载成功 [root@node1-190 ~]# chmod +x /etc/sysconfig/modules/ipvs.modules && /bin/bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack_ipv4 nf_conntrack_ipv4     15053 2 nf_defrag_ipv4         12729 1 nf_conntrack_ipv4 ip_vs_sh               12688 0 ip_vs_wrr             12697 0 ip_vs_rr               12600 0 ip_vs                  6 ip_vs_rr,ip_vs_sh,ip_vs_wrr nf_conntrack          7 ip_vs,nf_nat,nf_nat_ipv4,xt_conntrack,nf_nat_masquerade_ipv4,nf_conntrack_netlink,nf_conntrack_ipv4 libcrc32c             12644 4 xfs,ip_vs,nf_nat,nf_conntrack

7.k8s下载

（1）配置镜像下载相关软件

[root@master ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo [kubernetes] name=Kubernetes baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64 enabled=1 gpgcheck=0 repo_gpgcheck=0 gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg EOF ​ [root@master ~]# yum install -y kubeadm kubelet kubectl [root@master ~]# kubeadm version kubeadm version: &version.Info{Major:"1", Minor:"28", GitVersion:"v1.28.2", GitCommit:"89a4ea3e1e4ddd7f59983e0387b2f", GitTreeState:"clean", BuildDate:"2023-09-13T09:34:32Z", GoVersion:"go1.20.8", Compiler:"gc", Platform:"linux/amd64"}

（2）配置kubelet上的cgroup

[root@master ~]# cat <<EOF > /etc/sysconfig/kubelet KUBELET_EXTRA_ARGS="--cgroup-driver=systemd" KUBE_PROXY_MODE="ipvs" EOF [root@master ~]# systemctl start kubelet [root@master ~]# systemctl enable kubelet Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.

二.下载cri-o包（所有节点做）

1.在线下载

[root@master ~]# VERSION=1.25 [root@master ~]# curl -L -o /etc/yum.repos.d/devel:kubic:libcontainers:stable.repo https://download.opensuse.org/repositories/devel:/kubic:/libcontainers:/stable/CentOS_7/devel:kubic:libcontainers:stable.repo ners:stable:cri-o:${VERSION}.repo https://download.opensuse.org/repositories/devel:kubic:libcontainers:stable:cri-o:${VERSION}/CentOS_7/devel:kubic:libcontainers:stable:cri-o:${VERSION}.repo % Total   % Received % Xferd Average Speed   Time   Time     Time Current                                 Dload Upload   Total   Spent   Left Speed 100   359 100   359   0     0   293     0 0:00:01 0:00:01 --:--:--   293 [root@master ~]# curl -L -o /etc/yum.repos.d/devel:kubic:libcontainers:stable:cri-o:${VERSION}.repo https://download.opensuse.org/repositories/devel:kubic:libcontainers:stable:cri-o:${VERSION}/CentOS_7/devel:kubic:libcontainers:stable:cri-o:${VERSION}.repo % Total   % Received % Xferd Average Speed   Time   Time     Time Current                                 Dload Upload   Total   Spent   Left Speed 100   425 100   425   0     0   353     0 0:00:01 0:00:01 --:--:--   353 100   426 100   426   0     0   185     0 0:00:02 0:00:02 --:--:-- 4840 100   427 100   427   0     0   166     0 0:00:02 0:00:02 --:--:--   166 100   428 100   428   0     0   151     0 0:00:02 0:00:02 --:--:--   151 100   429 100   429   0     0   138     0 0:00:03 0:00:03 --:--:--     0 100   381 100   381   0     0   112     0 0:00:03 0:00:03 --:--:--   112 [root@master ~]# yum install -y cri-o

2.本地下载

链接：百度网盘 请输入提取码 提取码：i7ih

三.配置文件（所有节点做）

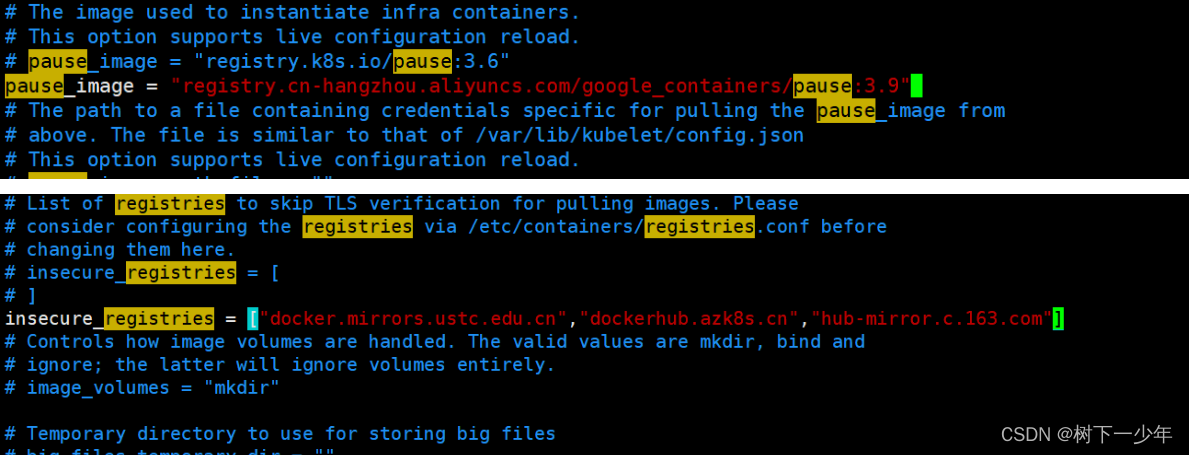

1.修改crio配置文件

找到下面两处位置进行修改

[root@master ~]# vim /etc/crio/crio.conf pause_image = "registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.9" insecure_registries = ["docker.mirrors.ustc.edu.cn","dockerhub.azk8s.cn","hub-mirror.c.163.com"]

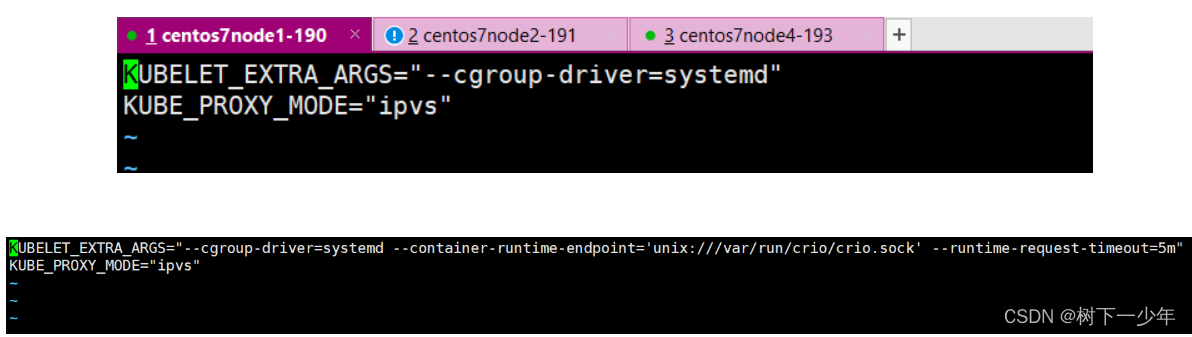

2.修改kubelet参数（所有节点做）

将原有的KUBELET_EXTRA_ARGS修改

[root@master ~]# vim /etc/sysconfig/kubelet KUBELET_EXTRA_ARGS="--cgroup-driver=systemd --container-runtime-endpoint='unix:///var/run/crio/crio.sock' --runtime-request-timeout=5m"

3.重启crio和kubelet

[root@master ~]# systemctl start crio [root@master ~]# systemctl enable crio [root@master ~]# systemctl restart crio kubelet

四.master节点初始化（master节点做）

#若初始化失败，使用这个kubeadm reset命令进行重置 [root@master ~]# kubeadm init --kubernetes-version=v1.28.2 --pod-network-cidr=10.224.0.0/16 \ > --apiserver-advertise-address=192.168.2.190 \       #修改为自己master节点的IP > --service-cidr=10.96.0.0/12 \ > --cri-socket unix:///var/run/crio/crio.sock \ > --image-repository registry.aliyuncs.com/google_containers ...... Your Kubernetes control-plane has initialized successfully! ​ To start using your cluster, you need to run the following as a regular user: ​ mkdir -p $HOME/.kube         #master上是普通用户操作 sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config ​ Alternatively, if you are the root user, you can run: ​ export KUBECONFIG=/etc/kubernetes/admin.conf     #master上是普root用户操作 ​ You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ ​ Then you can join any number of worker nodes by running the following on each as root: ​ kubeadm join 192.168.2.190:6443 --token jxl4ka.4umrziv1a7xf1dpn \ --discovery-token-ca-cert-hash sha256:6903b8d024842b24fd9c25848df5980d93c42d0fcd7838fdc24ef123c5eba794 #node节点使用这行命令加入master [root@master ~]# export KUBECONFIG=/etc/kubernetes/admin.conf

五.node节点加入（node节点做）

#若加入失败，使用这个kubeadm reset命令进行重置 [root@node2-191 ~]# kubeadm join 192.168.2.190:6443 --token jxl4ka.4umrziv1a7xf1dpn \ > --discovery-token-ca-cert-hash sha256:6903b8d024842b24fd9c25848df5980d93c42d0fcd7838fdc24ef123c5eba794 [preflight] Running pre-flight checks [preflight] Reading configuration from the cluster... [preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml' [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Starting the kubelet [kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap... ​ This node has joined the cluster: * Certificate signing request was sent to apiserver and a response was received. * The Kubelet was informed of the new secure connection details. ​ Run 'kubectl get nodes' on the control-plane to see this node join the cluster. ​ [root@master ~]# kubectl get nodes NAME           STATUS   ROLES           AGE   VERSION master         Ready   control-plane   36m   v1.28.2 node2-191.com   Ready   <none>         70s   v1.28.2 node4-193.com   Ready   <none>         16s   v1.28.2

六.添加网络插件（master节点做）

1.应用calico.yaml

[root@master ~]# wget --no-check-certificate https://projectcalico.docs.tigera.io/archive/v3.25/manifests/calico.yaml

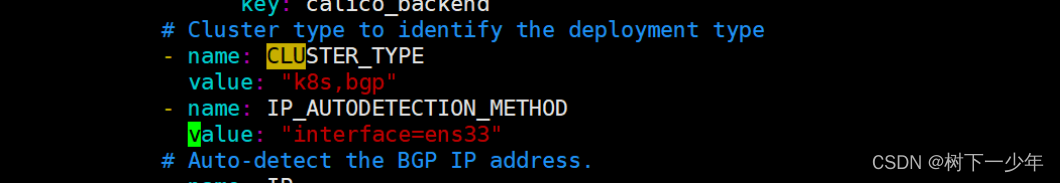

（1）找到这行增加以下内容

[root@master ~]# vim calico.yaml - name: IP_AUTODETECTION_METHOD             value: "interface=ens33"     #ens33处为你的网卡名称 [root@master ~]# kubectl apply -f calico.yaml

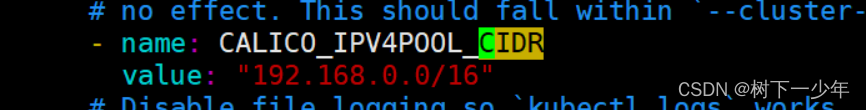

（2） 取消注释这部分并修改地址

- name: CALICO_IPV4POOL_CIDR value: 10.244.0.0/16"

2.查看验证

#等待初始完成即可 [root@master ~]# kubectl get pod -A NAMESPACE     NAME                                       READY   STATUS     RESTARTS   AGE kube-system   calico-kube-controllers-658d97c59c-8ww2m   1/1     Running   0         3m43s kube-system   calico-node-86787                         1/1     Running   0         3m43s kube-system   calico-node-jgz7g                         1/1     Running   0         3m43s kube-system   calico-node-lwxg5                         1/1     Running   0         3m43s kube-system   coredns-66fc-9tvjh                   1/1     Running   0         89m kube-system   coredns-66fc-qzqv9                   1/1     Running   0         89m kube-system   etcd-master                               1/1     Running   0         89m kube-system   kube-apiserver-master                     1/1     Running   0         89m kube-system   kube-controller-manager-master             1/1     Running   0         89m kube-system   kube-proxy-8nf9q                           1/1     Running   0         54m kube-system   kube-proxy-sczts                           1/1     Running   0         89m kube-system   kube-proxy-vrms2                           1/1     Running   0         53m kube-system   kube-scheduler-master                     1/1     Running   0         89m

七.配置kubectl命令补全

[root@master ~]# yum install -y bash-completion [root@master ~]# source /usr/share/bash-completion/bash_completion [root@master ~]# source <(kubectl completion bash) [root@master ~]# echo "source <(kubectl completion bash)" >> ~/.bashrc
