腾讯TNN神经网络推理框架手动实现多设备单算子卷积推理

大家好，欢迎来到IT知识分享网。

前言

  近期调研了一下腾讯的TNN神经网络推理框架，因此这篇博客主要介绍一下TNN的基本架构、模型量化以及手动实现x86和arm设备上单算子卷积推理。

1. 简介

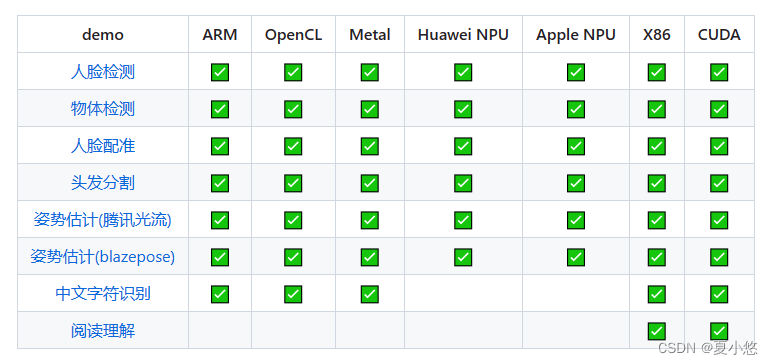

  TNN是由腾讯优图实验室开源的高性能、轻量级神经网络推理框架，同时拥有跨平台、高性能、模型压缩、代码裁剪等众多突出优势。TNN框架在原有Rapidnet、ncnn框架的基础上进一步加强了移动端设备的支持以及性能优化，同时借鉴了业界主流开源框架高性能和良好拓展性的特性，拓展了对于后台X86、NV GPU的支持。手机端TNN已经在手机、微视、P图等众多应用中落地，服务TNN作为腾讯云AI基础加速框架已为众多业务落地提供加速支持。

  TNN开源地址：https://github.com/Tencent/TNN

2. 快速开始

2.1 onnx转tnn

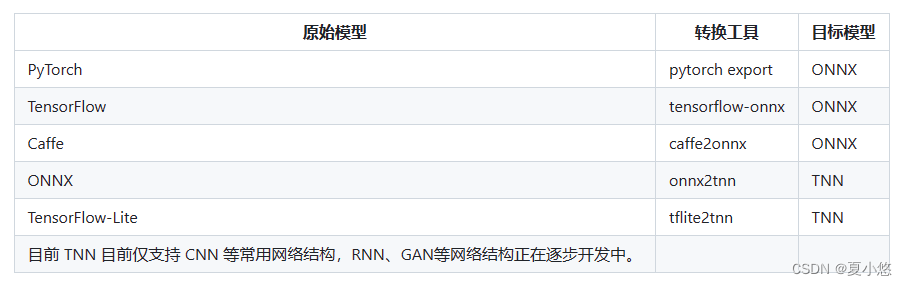

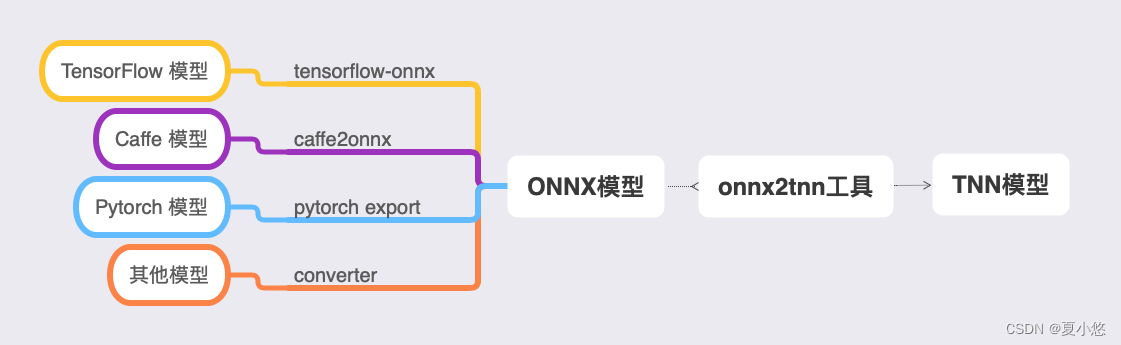

 &emsp目前 TNN 支持业界主流的模型文件格式，包括ONNX、PyTorch、TensorFlow、TesorFlow-Lite 以及 Caffe 等。如上图所示，TNN 将 ONNX 作为中间层，借助于ONNX 开源社区的力量，来支持多种模型文件格式。如果要将PyTorch、TensorFlow 以及 Caffe 等模型文件格式转换为 TNN，首先需要使用对应的模型转换工具，统一将各种模型格式转换成为 ONNX 模型格式，然后将 ONNX 模型转换成 TNN 模型。

  为了简化 convert2tnn转换工具的安装和编译步骤，官方推荐使用docker镜像：

# 建议直接从 docker hub 上拉取镜像 docker pull ccr.ccs.tencentyun.com/qcloud/tnn-convert # 对 docker 镜像进行重命名 docker tag ccr.ccs.tencentyun.com/qcloud/tnn-convert tnn-convert:latest docker rmi ccr.ccs.tencentyun.com/qcloud/tnn-convert # 通过打印 convert2tnn 的帮助信息来验证下 docker 镜像能够正常使用 docker run -it tnn-convert:latest python3 ./converter.py -h

  进一步的，查看下ONNX转TNN工具：

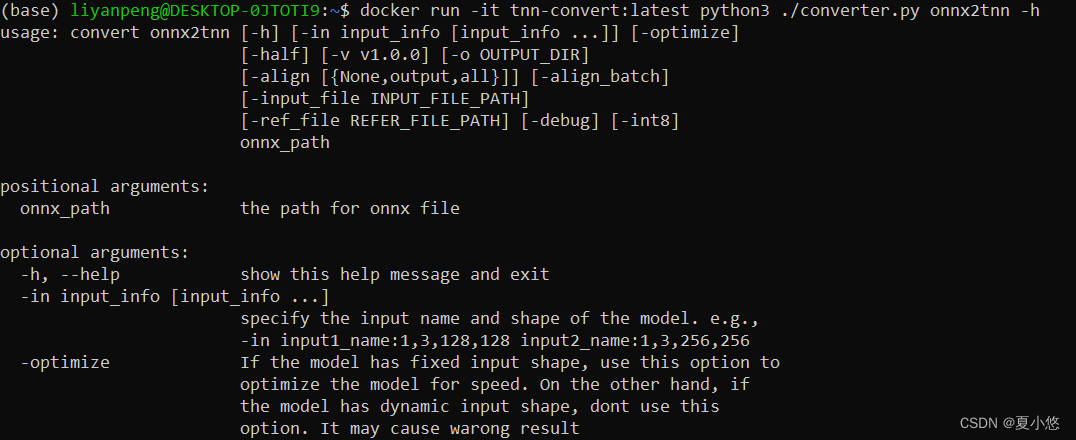

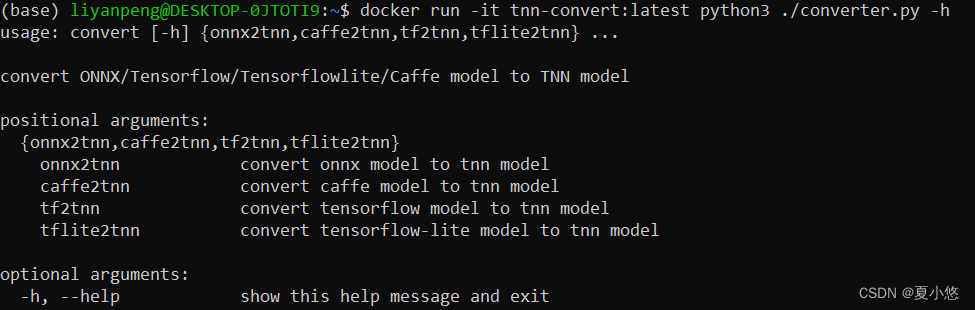

docker run -it tnn-convert:latest python3 ./converter.py onnx2tnn -h

  具体参数不再进行过多详述，可参阅官方文档。

  本例就以Resnet50为例，将其转为tnn格式：

import torch from torchvision.models.resnet import resnet50 if __name__ == '__main__': model = resnet50() model.load_state_dict(torch.load('model/resnet50-0676ba61.pth')) model.eval() input_data = torch.randn(size=(1, 3, 224, 224), dtype=torch.float32) input_names, output_names = ["input"], ["output"] torch.onnx.export(model, input_data, "model/resnet50.onnx", input_names=input_names, output_names=output_names) # 当然，也可以直接使用onnx格式的resnet50，下载链接为：https://github.com/onnx/models/tree/main/vision/classification/resnet/model

# 启动docker docker run -v /home/liyanpeng/tnn_docker:/home/liyanpeng/tnn_docker --rm -it tnn-convert:latest /bin/bash # cd /opt/TNN/tools/convert2tnn(default) # onnx2tnn python3 ./converter.py onnx2tnn /home/liyanpeng/tnn_docker/model/resnet50.onnx -in input:1,3,224,224

2.2 编译目标平台的 TNN 引擎

  编译相关注意事项请参考官方文档。

  arm-linux平台编译：

apt-get install g++-aarch64-linux-gnu gcc-aarch64-linux-gnu apt-get install g++-arm-linux-gnueabihf gcc-arm-linux-gnueabihf # apt-get install vim gdb cd scripts ./build_aarch_linux.sh

  x86-linux平台编译：

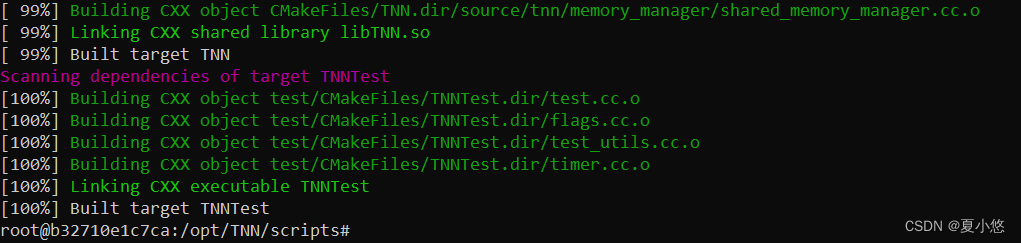

cd scripts ./build_linux_native.sh

2.3 使用编译好的 TNN 引擎进行推理

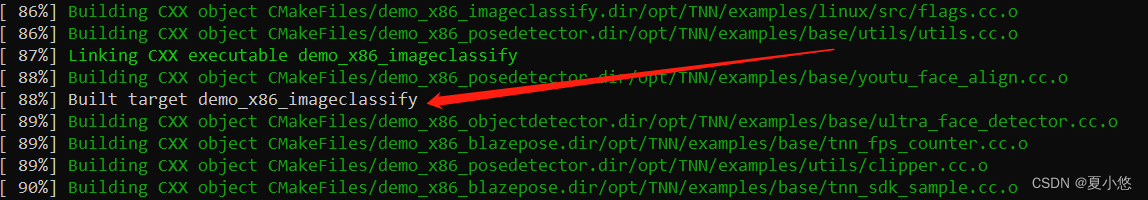

  上面那个没有编译具体的实例，接下来编译x86平台下各任务下的TNN引擎：

# x86平台编译 cd examples/linux/x86 ./build_linux_native.sh # arm-linux交叉编译 # cd examples/linux/cross # ./build_aarch64_linux.sh

  执行图像分类任务：

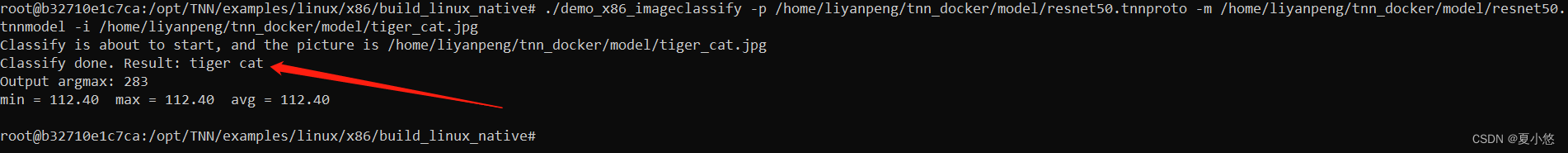

./demo_x86_imageclassify -p /home/liyanpeng/tnn_docker/model/resnet50.tnnproto -m /home/liyanpeng/tnn_docker/model/resnet50. tnnmodel -i /home/liyanpeng/tnn_docker/model/tiger_cat.jpg

  推理结果也是正确的：

  各任务源码位置：examples/linux/src

3. 手动实现单算子卷积推理(浮点)

  TNN框架构建神经网络推理实例需要输入两个文件，一个是模型结构文件.tnnproto，一个是模型权重文件.tnnmodel，这两个文件是必须的。但由于一些特殊的需要，这种文件的方式不太适用，因此我这里提供了一个手动创建模型结构的实例，不用依赖于模型文件。

  仿照examples/linux/src目录下的TNNImageClassify图像分类demo，我在根目录下创建了一个my_cnn_model目录，其中包括my_conv.cpp和CMakeLists.txt两个文件。

  my_conv.cpp文件内容如下：

// Author: xiayouran // Email:  // Datetime: 2023/4/8 15:17 // Filename: my_conv.cpp #include "tnn/core/tnn.h" #include "tnn/interpreter/abstract_model_interpreter.h" #include "tnn/interpreter/tnn/model_interpreter.h" using namespace TNN_NS; int main(int argc, char* argv[]) {
    auto model_type = MODEL_TYPE_TNN; auto device_type = DEVICE_X86;// DEVICE_ARM auto data_type = DATA_TYPE_FLOAT;// DATA_TYPE_INT8 ModelConfig model_config; model_config.model_type = model_type; NetworkConfig net_config; net_config.device_type = device_type; TNN tnn; Status status = tnn.MyInit(model_config); auto instance = tnn.CreateInst(net_config, status); BlobMap input_blobs; status = instance->GetAllInputBlobs(input_blobs); Blob* input_blob = input_blobs.begin()->second; float* data_ptr = static_cast<float*>(input_blob->GetHandle().base); for (int i = 0; i < 1 * 1 * 4 * 4; i++) {
    data_ptr[i] = (float)1.0 + i; } status = instance->Forward(); BlobMap output_blobs; status = instance->GetAllOutputBlobs(output_blobs); Blob* output_blob = output_blobs.begin()->second; float* out_data_ptr = static_cast<float*>(output_blob->GetHandle().base); for (int i = 0; i < 1 * 1 * 2 * 2; i++) {
    std::cout << out_data_ptr[i] << std::endl; } return 0; }

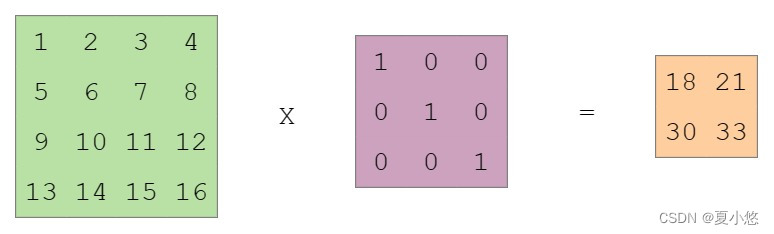

  卷积的输入shape为(1, 1, 4, 4)，卷积的shape为(1, 1, 3, 3)，卷积的输出shape为(1, 1, 2, 2)，具体为：

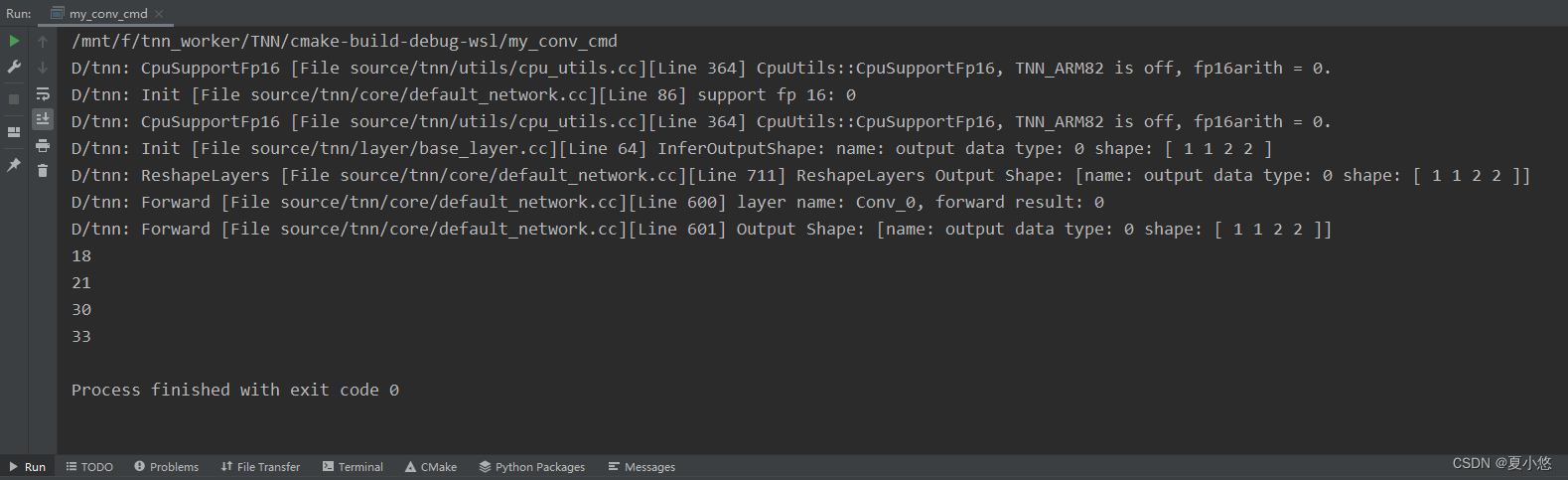

  运行结果如下：

  在CMakeLists.txt文件中除了添加了本示例代码my_conv.cpp，还添加了官方提供的图像分类demo的TNNImageClassify.cc及其依赖，具体内容如下：

file(GLOB MyCNNModel_SRCS my_conv.cpp) file(GLOB ImageClassify_SRCS ${
   CMAKE_CURRENT_SOURCE_DIR}/../examples/linux/src/TNNImageClassify/TNNImageClassify.cc) message(${
   MyCNNModel_SRCS}) message(${
   ImageClassify_SRCS}) #include_directories(../include) #include_directories(../source) include_directories(${
   CMAKE_CURRENT_SOURCE_DIR}/../examples/base) include_directories(${
   CMAKE_CURRENT_SOURCE_DIR}/../examples/base/utils) include_directories(${
   CMAKE_CURRENT_SOURCE_DIR}/../examples/utils) add_subdirectory(${
   CMAKE_CURRENT_SOURCE_DIR}/../third_party/gflags ${
   CMAKE_CURRENT_SOURCE_DIR}/../third_party/gflags) get_target_property(GFLAGS_INCLUDE_DIRS gflags INTERFACE_INCLUDE_DIRECTORIES) include_directories(BEFORE "${GFLAGS_INCLUDE_DIRS}") link_libraries(gflags) file(GLOB FLAG_SRC "${CMAKE_CURRENT_SOURCE_DIR}/../examples/linux/src/*.cc") file(GLOB_RECURSE BASE_SRC "${CMAKE_CURRENT_SOURCE_DIR}/../examples/base/*.cc" "${CMAKE_CURRENT_SOURCE_DIR}/../examples/base/utils/*.cc") file(GLOB_RECURSE UTIL_SRC "${CMAKE_CURRENT_SOURCE_DIR}/../examples/utils/*.cc") include_directories(${
   CMAKE_CURRENT_SOURCE_DIR}/../source/tnn/interpreter/tnn) include_directories(${
   CMAKE_CURRENT_SOURCE_DIR}/../third_party/stb) add_executable(my_conv_cmd ${
   MyCNNModel_SRCS}) add_executable(demo_x86_imageclassify_cmd ${
   ImageClassify_SRCS} ${
   BASE_SRC} ${
   UTIL_SRC} ${
   FLAG_SRC}) target_link_libraries(my_conv_cmd TNN) target_link_libraries(demo_x86_imageclassify_cmd TNN) set_target_properties(my_conv_cmd PROPERTIES RUNTIME_OUTPUT_DIRECTORY ${
   PROJECT_BINARY_DIR}) set_target_properties(demo_x86_imageclassify_cmd PROPERTIES RUNTIME_OUTPUT_DIRECTORY ${
   PROJECT_BINARY_DIR})

4. 代码解析

  按照官方提供的API说明，运行一个神经网络需要五个步骤：

# Step1. 模型解析 model_config.params.push_back(proto_buffer);# proto文件内容存入proto_buffer model_config.params.push_back(model_buffer);# model文件内容存入model_buffer Status ret = tnn.Init(model_config); # Step2. 网络构建 auto net_instance = tnn.CreateInst(config, status); # Step3. 输入设定 auto status = net_instance->SetInputMat(input_mat, input_cvt_param); # Step4. 网络运行 auto status = net_instance->Forward(); # Step5. 输出获取 auto status = instance->GetOutputMat(output_mat);

  在第一步模型解析中涉及到文件操作，理论上只要按照其他模型转tnn的格式写模型文件是不需要修改源码的，这里没有阅读这部分源码，因此就直接修改了源码。
  经过源码分析，手动构建一个模型主要需要构建神经网络模型的各层layer并完成参数的初始化、模型解释器及tnn的初始化的构建，具体如下：

4.1 构建模型(单卷积层)

  在source/tnn/interpreter/tnn/model_interpreter.cc文件中新增了ModelInterpreter::MyInterpret()函数，区别于官方的ModelInterpreter::Interpret(std::vector<std::string> &params)函数，本函数不需要从文件中去解析模型的结构和权重：

// Interpret the proto and model without file. Status ModelInterpreter::MyInterpret() {
    Status status = TNN_OK; /初始化卷积层参数/ NetStructure *structure = GetNetStructure(); structure->source_model_type = MODEL_TYPE_TNN; DimsVector &input_shape = structure->inputs_shape_map["input"]; input_shape.push_back(1); input_shape.push_back(1); input_shape.push_back(4); input_shape.push_back(4); DataType data_type = DATA_TYPE_FLOAT;// DATA_TYPE_FLOAT structure->input_data_type_map["input"] = data_type; structure->outputs.insert("output"); auto cur_layer = std::make_shared<LayerInfo>(); std::string type_str = "Convolution"; type_str = Transfer(type_str); LayerType type = GlobalConvertLayerType(type_str); cur_layer->type = type; cur_layer->type_str = type_str; cur_layer->name = Transfer("Conv_0"); cur_layer->inputs.clear(); cur_layer->outputs.clear(); cur_layer->inputs.push_back("input"); structure->blobs.insert("input"); cur_layer->outputs.push_back("output"); structure->blobs.insert("output"); LayerParam *layer_param = NULL; LayerParam** param = &layer_param; auto p = CreateLayerParam<ConvLayerParam>(param); p->input_channel = 1; p->output_channel = 1; p->kernels = {
   3, 3}; p->strides = {
   1, 1}; p->pads = {
   0, 0, 0, 0}; p->dialations = {
   1, 1}; p->bias = 0; p->pad_type = -1; p->group = 1; p->activation_type = 0; layer_param->type = cur_layer->type_str; layer_param->name = cur_layer->name; if (data_type == DATA_TYPE_INT8) {
    layer_param->quantized = true; } cur_layer->param = shared_ptr<LayerParam>(layer_param); structure->layers.push_back(cur_layer); /卷积层参数初始化结束/ /初始化卷积层权重/ NetResource *net_resource = GetNetResource(); LayerResource *layer_resource = NULL; LayerResource** resource = &layer_resource; auto layer_res = CreateLayerRes<ConvLayerResource>(resource); layer_res->filter_format = OIHW; // weight RawBuffer weight_buf; DimsVector weight_dims = {
   1, 1, 3, 3}; weight_buf = TNN_NS::RawBuffer(1*1*3*3*4); weight_buf.SetDataType(data_type); weight_buf.SetBufferDims(weight_dims); float weight_data[1][1][3][3] = {
   {
   {
   {
   1.0, 0.0, 0.0}, {
   0.0, 1.0, 0.0}, {
   0.0, 0.0, 1.0}}}}; memcpy(weight_buf.force_to<float*>(), weight_data, 1*1*3*3*4); layer_res->filter_handle = weight_buf; // bias RawBuffer bias_buf; DimsVector bias_dims = {
   1}; bias_buf = TNN_NS::RawBuffer(4); bias_buf.SetDataType(data_type); bias_buf.SetBufferDims(bias_dims); float bias_data[1] = {
   0.0}; memcpy(bias_buf.force_to<float*>(), bias_data, 1*4); layer_res->bias_handle = bias_buf; /以下操作浮点推理非必须/ // scale RawBuffer scale_buf; DimsVector scale_dims = {
   1}; scale_buf = TNN_NS::RawBuffer(4); scale_buf.SetDataType(DATA_TYPE_FLOAT); scale_buf.SetBufferDims(scale_dims); float scale_data[1] = {
   1.0}; memcpy(scale_buf.force_to<float*>(), scale_data, 1*4); layer_res->scale_handle = scale_buf; // zero_point RawBuffer zero_point_buf; DimsVector zero_point_dims = {
   1}; zero_point_buf = TNN_NS::RawBuffer(1); zero_point_buf.SetDataType(DATA_TYPE_INT8); zero_point_buf.SetBufferDims(zero_point_dims); int8_t zero_point_data[1] = {
   0}; memcpy(zero_point_buf.force_to<int8_t*>(), zero_point_data, 1*1); layer_res->zero_point_handle = zero_point_buf; /以上操作浮点推理非必须/ net_resource->resource_map["Conv_0"] = std::shared_ptr<LayerResource>(layer_resource); // 不用解析constant_map /卷积层权重初始化结束/ return status; }

  相应的，需要在source/tnn/interpreter/tnn/model_interpreter.h、source/tnn/interpreter/abstract_model_interpreter.h和source/tnn/interpreter/ncnn/ncnn_model_interpreter.h三个文件中添加本函数的声明：

// model_interpreter.h文件中的ModelInterpreter virtual Status MyInterpret(); // abstract_model_interpreter.h文件中的AbstractModelInterpreter virtual Status MyInterpret() = 0; // ncnn_model_interpreter.h文件中的NCNNModelInterpreter virtual Status MyInterpret();

4.2 构建解释器

  在source/tnn/core/tnn_impl_default.cc文件中新增了TNNImplDefault::MyInit(ModelConfig& config)函数，函数实现大体与官方的TNNImplDefault::Init(ModelConfig& config)函数一样，只不过这里构建解释器时使用了MyInterpret()函数：

Status TNNImplDefault::MyInit(ModelConfig& config) {
    auto status = TNNImpl::MyInit(config); if (status != TNN_OK) {
    return status; } auto interpreter = CreateModelInterpreter(config.model_type); if (!interpreter) {
    return Status(TNNERR_NET_ERR, "interpreter is nil"); } interpreter_ = std::shared_ptr<AbstractModelInterpreter>(interpreter); return interpreter_->MyInterpret(); }

  TNNImpl::MyInit(config)函数的实现在在source/tnn/core/tnn_impl.cc文件中：

Status TNNImpl::MyInit(ModelConfig &config) {
    model_config_.model_type = config.model_type; return TNN_OK; }

  相应的，需要在source/tnn/core/tnn_impl_default.h和source/tnn/core/tnn_impl.h两个文件中添加本函数的声明：

// tnn_impl_default.h文件中的MyInit virtual Status MyInit(ModelConfig& config); // tnn_impl.h文件中的MyInit virtual Status MyInit(ModelConfig& config);

4.3 初始化tnn

  为了使tnn能够正确按照我们的方法进行初始化，需要添加TNN::MyInit(ModelConfig& config)函数以代替官方的TNN::Init(ModelConfig& config)函数进行初始化，具体在source/tnn/core/tnn.cc文件中：

Status TNN::MyInit(ModelConfig& config) {
    impl_ = TNNImplManager::GetTNNImpl(config.model_type); if (!impl_) {
    LOGE("Error: not support mode type: %d. If TNN is a static library, link it with option -Wl,--whole-archive tnn -Wl,--no-whole-archive on android or add -force_load on iOS\n", config.model_type); return Status(TNNERR_NET_ERR, "unsupported mode type, If TNN is a static library, link it with option -Wl,--whole-archive tnn -Wl,--no-whole-archive on android or add -force_load on iOS"); } return impl_->MyInit(config); }

  相应的，需要在include/tnn/core/tnn.h文件中添加本函数的声明：

// tnn.h文件中的MyInit Status MyInit(ModelConfig& config);

  至此，手动构建单算子卷积推理所需的要素已经构建完毕，在根目录下的CMakeLists.txt文件中添加本示例的代码目录进行编译即可：

add_subdirectory(my_cnn_model)

5. 模型量化

5.1 编译量化工具

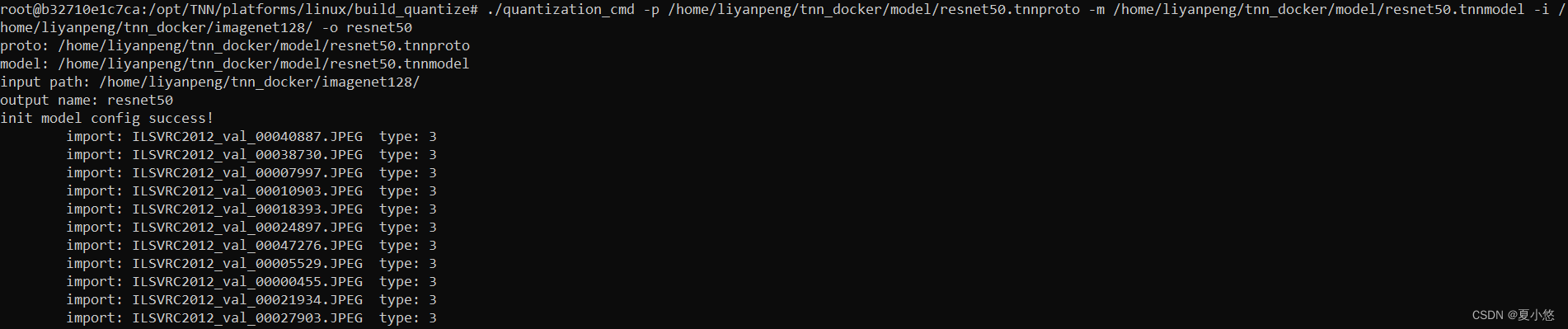

# 编译 cd platforms/linux/ ./build_quanttool.sh -c # 执行量化 cd build_quantize/ ./quantization_cmd -p /home/liyanpeng/tnn_docker/model/resnet50.tnnproto -m /home/liyanpeng/tnn_docker/model/resnet50.tnnmodel -i /home/liyanpeng/tnn_docker/imagenet128/ -o resnet50

  浮点模型大小为98M，量化后的定点模型为26M：

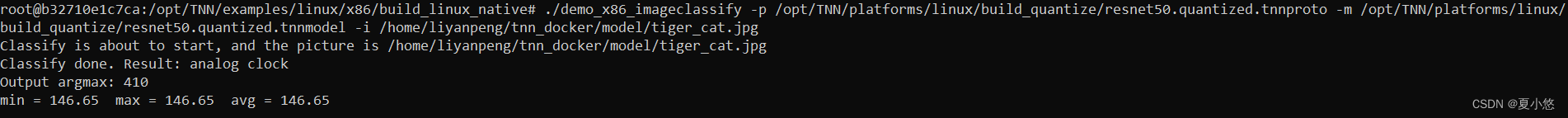

  使用量化模型进行推理：

./demo_x86_imageclassify -p /opt/TNN/platforms/linux/build_quantize/resnet50.quantized.tnnproto -m /opt/TNN/platforms/linux/build_quantize/resnet50.quantized.tnnmodel -i /home/liyanpeng/tnn_docker/model/tiger_cat.jpg

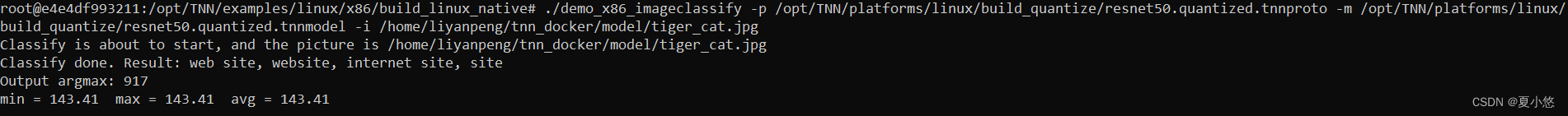

  这里只是用128张图片进行的量化，所以精度损失较大，推理结果不大对：

  更改了1000张图片进行的量化，feature map的量化方式采用KL，weight的方式采用MIN_MAX/ADMM，也更换了测试图片，推理结果都不行：

5.2 量化流程

  TNN默认采用Min-Max量化方式，除此之外，feature map支持KL量化方法，weight支持ADMM量化方法，具体的量化流程如下：

calibration.Init(net_config, model_config) /*根据输入shape，计算出每个网络层的输出shape*/ calibration.SetCalibrationParams(cali_params) /*设置量化方式为MIN_MAX*/ calibration.RunCalibration(dataset) /*scale计算和量化*/ CalBlobScale(dataset);// Compute Feature Scale InitFeatureMap();// Init Feature map(在此之前进行了reshape)，初始化每个feature map的range_per_channel_等参数 UpdateBlobRange(dataset);// Collect the Range of Feature map，更新range_per_channel_ UpdateRange() UpdateBlobDistribute(dataset);// Calculate Distribute of Feature map ResetDistribute()// 根据range_per_channel_计算valid_channel_和interval_per_channel_，并初始化distribute_per_channel_ UpdateDistribute()//  CalculateScale(scale_vec, zero_point_vec);// Compute Scale of Feature map and save to resource map QuantizeParams();// Quantize params MergeBlobScale();// Merge Blob Scale of some layers calibration.Serialize(output_name + ".quantized.tnnproto", output_name + ".quantized.tnnmodel") /*保存量化模型*/

  其中range_per_channel_表示每个channel中的最大最小值：first(min)，second(max)。

  量化源码位置在：tools/quantization。

5.3 feature map量化

5.3.1 range_per_channel_的计算

  按per_channel的方式对所有feature map(包括input/output)的channel计算最大最小值：

// tools/quantization/scale_calculator.cc --> ScaleCalculator::UpdateRange() // Collect the Range of Feature map // 在这里也叫 blob int batch = origin_blob_->GetBlobDesc().dims[0];// 1 int channel = origin_blob_->GetBlobDesc().dims[1];// 3 int hxw = DimsVectorUtils::Count(origin_blob_->GetBlobDesc().dims, 2);// 224*224 float* data_ptr = reinterpret_cast<float*>(static_cast<char*>(origin_blob_->GetHandle().base) + origin_blob_->GetHandle().bytes_offset); for (int b = 0; b < batch; ++b) {
    for (int c = 0; c < channel; ++c) {
    int channel_idx = c; if (merge_channel_) {
    channel_idx = 0; } float* p = data_ptr + b * channel * hxw + c * hxw; for (int i = 0; i < hxw; ++i) {
    float val = p[i]; if (val < range_per_channel_[channel_idx].first) {
    range_per_channel_[channel_idx].first = val;//first记录当前channel中的最小值 } if (val > range_per_channel_[channel_idx].second) {
    range_per_channel_[channel_idx].second = val;//second记录当前channel中的最大值 } } } }

5.3.2 interval_per_channel_的计算

// tools/quantization/scale_calculator.cc --> ScaleCalculator::ResetDistribute() for (unsigned int i = 0; i < interval_per_channel_.size(); ++i) {
    float max_val = std::max(std::abs(range_per_channel_[i].first), std::abs(range_per_channel_[i].second)); valid_channel_[i] = max_val > 0.00001; if (valid_channel_[i]) {
    // bin_nums_ 默认值为 2048 interval_per_channel_[i] = (float)bin_nums_ / max_val; } }

5.3.3 distribute_per_channel_的计算

  这里涉及到feature map的MIN_MAX和KL_DIVERGENCE两种量化策略，目的都是为了寻找一个合适的阈值threshold。
  MIN_MAX量化策略：

// tools/quantization/scale_calculator.cc --> ScaleCalculator::CalculateScalePerDis const int target_bin_nums = 128; int threshold = target_bin_nums; threshold = bin_nums_ - 1;// 2047 output = ((float)threshold + 0.5) / interval / 127.0;

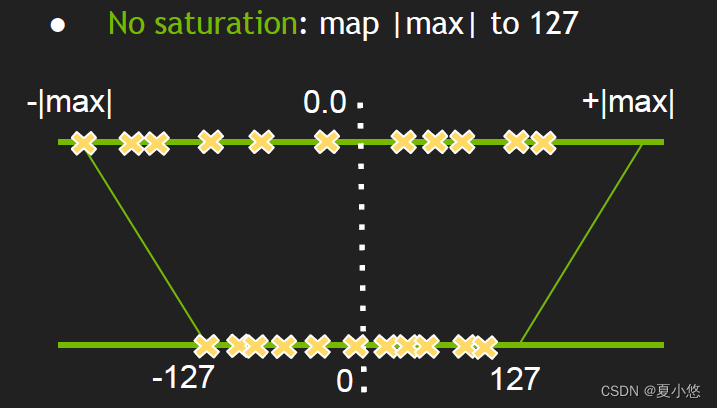

  总结起来就是：scale = max[abs(r_min), abs(r_max)] / 127.0，同NVIDIA报告中给出的一致，如下图所示：

  KL_DIVERGENCE量化策略：

// tools/quantization/scale_calculator.cc --> ScaleCalculator::CalculateScalePerDis const int target_bin_nums = 128; int threshold = target_bin_nums; // normalize float sum = 0; std::for_each(distribute.begin(), distribute.end(), [&](float n) {
    sum += n; }); std::for_each(distribute.begin(), distribute.end(), [sum](float& n) {
    n /= sum; }); float kl_val_min = 1e6; float sum_after_threshold = 0.0f; std::for_each(distribute.begin() + target_bin_nums, distribute.end(), [&](float n) {
    sum_after_threshold += n; }); for (int i = target_bin_nums; i < bin_nums_; ++i) {
    // 1. get referenced distribute std::vector<float> distribute_ref(i); std::copy(distribute.begin(), distribute.begin() + i, distribute_ref.begin()); distribute_ref[i - 1] += sum_after_threshold; sum_after_threshold -= distribute[i]; // for next loop // 2. quantize the distribute within threshold scope as target bins std::vector<float> distribute_quantized(target_bin_nums); const float bin_interval = (float)i / (float)target_bin_nums; for (int j = 0; j < target_bin_nums; ++j) {
    const float start = j * bin_interval; const float end = start + bin_interval; const int left_upper = static_cast<int>(std::ceil(start)); if (left_upper > start) {
    const float left_scale = left_upper - start; distribute_quantized[j] += left_scale * distribute[left_upper - 1]; } const int right_lower = static_cast<int>(std::floor(end)); if (right_lower < end) {
    const float right_scale = end - right_lower; distribute_quantized[j] += right_scale * distribute[right_lower]; } std::for_each(distribute.begin() + left_upper, distribute.begin() + right_lower, [&](float n) {
    distribute_quantized[j] += n; }); } // 3. expand target bins to i bins to calculate kl std::vector<float> distribute_expanded(i); for (int j = 0; j < target_bin_nums; ++j) {
    const float start = j * bin_interval; const float end = start + bin_interval; float count = 0; const int left_upper = static_cast<int>(std::ceil(start)); float left_scale = 0.0f; if (left_upper > start) {
    left_scale = left_upper - start; if (distribute[left_upper - 1] != 0) {
    count += left_scale; } } const int right_lower = static_cast<int>(std::floor(end)); float right_scale = 0.0f; if (right_lower < end) {
    right_scale = end - right_lower; if (distribute[right_lower] != 0) {
    count += right_scale; } } std::for_each(distribute.begin() + left_upper, distribute.begin() + right_lower, [&](float n) {
    if (n != 0) {
    count += 1; } }); if (count == 0) {
    continue; } const float to_expand_val = distribute_quantized[j] / count; if (left_upper > start && distribute[left_upper - 1] != 0) {
    distribute_expanded[left_upper - 1] += to_expand_val * left_scale; } if (right_lower < end && distribute[right_lower] != 0) {
    distribute_expanded[right_lower] += to_expand_val * right_scale; } for (int k = left_upper; k < right_lower; ++k) {
    if (distribute[k] != 0) {
    distribute_expanded[k] += to_expand_val; } } } // 4. calculate kl val const float kl_val_cur = KlDivergence(distribute_ref, distribute_expanded); // 5. get the threshold of min kl val if (kl_val_cur < kl_val_min) {
    kl_val_min = kl_val_cur; threshold = i; } } output = ((float)threshold + 0.5) / interval / 127.0;

5.3.4 scale的计算与存储

  feature map的scale相关信息也会存储在LayerResource对象中，相较于卷积层的LayerResource来说，这里是blob数据，对应resource_map中的名字为xxx_scale_data_，具体为：

val.resize(valid_channel_.size()); std::fill(val.begin(), val.end(), 0.0f); for (unsigned int c = 0; c < range_per_channel_.size(); ++c) {
    int ret = -1; ret = CalculateScalePerDis(distribute_per_channel_[c], interval_per_channel_[c], val[c]); } // val存储的就是CalculateScalePerDis计算出的output，也即是feature map的scale // tools/quantization/calibration.cc --> Calibration::CalBlobScale() // 将scale_vec和zero_point_vec写入net_resource->resource_map中 LayerResource* blob_scale_res; blob_scale_res = CreateIntScale(scale_vec, zero_point_vec); net_resource->resource_map[input_scale_name] = std::shared_ptr<LayerResource>(blob_scale_res); // input_scale_name: xxx_scale_data_ // tools/quantization/calibration.cc --> Calibration::CreateIntScale() IntScaleResource* int8scale = new IntScaleResource(); // scale RawBuffer scale(scale_vec.size() * sizeof(float)); float* k_data = scale.force_to<float*>(); memcpy(k_data, scale_vec.data(), scale_vec.size() * sizeof(float)); int8scale->scale_handle = scale; // zero_point RawBuffer zero_point(zero_point_vec.size() * sizeof(char)); zero_point.SetDataType(DATA_TYPE_INT8); int8_t* sb_data = zero_point.force_to<int8_t*>(); memcpy(sb_data, zero_point_vec.data(), zero_point_vec.size() * sizeof(char)); int8scale->zero_point_handle = zero_point; // bias RawBuffer bias(scale_vec.size() * sizeof(int32_t)); bias.SetDataType(DATA_TYPE_INT32); int32_t* b_data = bias.force_to<int32_t*>(); memset(b_data, 0, scale_vec.size() * sizeof(int32_t)); int8scale->bias_handle = bias;

5.4 weight量化

5.4.1 前处理

  在权重量化之前，先将weight乘以输入feature map的scale，具体为：

// tools/quantization/calibration.cc --> Calibration::QuantizeConvParams() std::vector<float> weight_multiby_inputscale(size); // multi weights by input_scale // input_scale就是上面feature map的scale float* input_scale_data = input_scale->scale_handle.force_to<float*>(); auto filter_handle = resource->filter_handle; float* weight_data = filter_handle.force_to<float*>(); // conv(32, 3, 3, 3) for (int group_idx = 0; group_idx < group; group_idx++) {
    // 1 for (int oc = 0; oc < output_channel_per_group; ++oc) {
    // 32 for (int ic = 0; ic < input_channel_per_group; ++ic) {
    // 3 int s_idx = ic + group_idx * input_channel_per_group; for (int i = 0; i < kernel_size; ++i) {
    // 3*3 int idx = (group_idx * output_channel_per_group + oc) * oc_stride + ic * kernel_size + i; if (is_depthwise) {
    weight_multiby_inputscale[idx] = weight_data[idx]; } else {
    weight_multiby_inputscale[idx] = weight_data[idx] * input_scale_data[s_idx]; } } } } }

5.4.2 weight量化策略

  TNN中的卷积量化有两种：MIN_MAX量化策略和ADMM量化策略。
  MIN_MAX量化策略：

// tools/quantization/calibration.cc --> Calibration::CalQuantizedWeights() // MIN_MAX int weight_scale_count = merge_channel ? 1 : output_channel; int s_size = size / weight_scale_count;// 32*3*3*3 / 32 for (int s_idx = 0; s_idx < weight_scale_count; ++s_idx) {
    const float* weight_start = weights + s_idx * s_size; int8_t* weight_q_start = quantized_weights + s_idx * s_size; auto minmax = std::minmax_element(weight_start, weight_start + s_size); float max_val_abs = std::max(std::abs(*minmax.first), std::abs(*minmax.second)); weight_scale[s_idx] = max_val_abs / 127.0f; float scale_float2int8 = 1.0f; if (max_val_abs != 0) scale_float2int8 = 1 / weight_scale[s_idx]; // quantize weights for (int i = 0; i < s_size; ++i) {
    int value = static_cast<int>(std::round(weight_start[i] * scale_float2int8)); weight_q_start[i] = std::min(127, std::max(-127, value)); } }

  MIN_MAX量化策略总结起来就是：weight_int8 = (weight_float * input_scale) / max_val_abs * 127，得到的weight_int8 的取值范围为[-127, 127]。
  ADMM量化策略如下：

// tools/quantization/calibration.cc --> Calibration::CalQuantizedWeights() // ADMM int weight_scale_count = merge_channel ? 1 : output_channel; int s_size = size / weight_scale_count; const int quantize_bits = 8; InitWeightScaleADMM(weights, size, output_channel, merge_channel, weight_scale, quantize_bits); int iter = 0; float pre_sum = 0; float cur_sum = 0; const int max_iter = 1000; for (int i = 0; i < size; i++) {
    pre_sum += std::fabs(weights[i]); } // update weights quan while (iter < max_iter) {
    UpdateQuantizedWeightsADMM(weights, size, output_channel, merge_channel, weight_scale, quantize_bits, quantized_weights); UpdateAlphaADMM(weights, size, output_channel, merge_channel, weight_scale, quantized_weights); iter++; } for (int i = 0; i < size; i++) {
    cur_sum += std::fabs(quantized_weights[i] * weight_scale[i / s_size]); }

5.4.3 scale存储

  对量化后的卷积weight，scale和zero_point保存到当前layer的resource中：

// weight_quantized 对应上述的 quantized_weights(weight_quantized_data) int8_t // weight_scale 对应上述的 weight_scale(weight_scale_data) float // weight_zero_point 对应上述的 weight_zero_point(weight_zero_point_data) int8_t resource->filter_handle = weight_quantized; resource->scale_handle = weight_scale; resource->zero_point_handle = weight_zero_point;

5.5 bias量化

  bias的量化结果为浮点bias除以weight的scale：

// tools/quantization/calibration.cc auto fp32_bias_handle = ConvertHalfHandle(resource->bias_handle); float* bias_data = fp32_bias_handle.force_to<float*>(); RawBuffer bias_quantized(output_channel * sizeof(int32_t)); bias_quantized.SetDataType(DATA_TYPE_INT32); int32_t* bias_quantized_data = bias_quantized.force_to<int32_t*>(); for (int oc = 0; oc < output_channel; ++oc) {
    if (weight_scale_data[oc] == 0) {
    bias_quantized_data[oc] = 0; } else {
    int weight_scale_idx = oc; bias_quantized_data[oc] = static_cast<int32_t>(bias_data[oc] / weight_scale_data[weight_scale_idx]); } } resource->bias_handle = bias_quantized;

5.6 8bit推理过程

  假设当前一个卷积层的信息为：

# input: (1, 3, 224, 224) # conv: (32, 3, 3, 3) # output: (1, 32, 222, 222)

  结合x86和arm上8bit卷积推理，做了以下总结：

const float *w_scale = conv_res->scale_handle.force_to<float *>(); const float *o_scale = reinterpret_cast<BlobInt8 *>(outputs[0])->GetIntResource()->scale_handle.force_to<float *>(); RawBuffer temp_buffer(total_byte_size);// 32个数 128字节 float *temp_ptr = temp_buffer.force_to<float *>(); for (int i = 0; i < dims_output[1]; i++) {
    int scale_idx_w = scale_len_w == 1 ? 0 : i; int scale_idx_o = scale_len_o == 1 ? 0 : i; temp_ptr[i] = w_scale[scale_idx_w] / o_scale[scale_idx_o]; } // source/tnn/device/arm/acc/compute/compute_int8.cc // ARM dstTemp[j] += (int32_t)src_z[i] * (int32_t)weight_j[i]; auto res = static_cast<float>(dstTemp[j] + bias[j]) * scale[j]; dst_x[j] = float2int8(res);

  总结起来就是 (input_data_int32 * weight_data_int32 + bias) * weight_scale可以得到卷积的浮点输出，浮点输出 / output_scale(也就是下一个layer的input_scale)得到卷积的量化输出，再将其限制在[-128. 127]。

6. im2col实现卷积计算

  根据硬件具体实现，大部分卷积的计算都会转换为矩阵乘法(GEMM)，最常用的方法就是im2col，下面给出一些im2col实现卷积计算的示例图，结合这篇博客一起食用效果更佳！

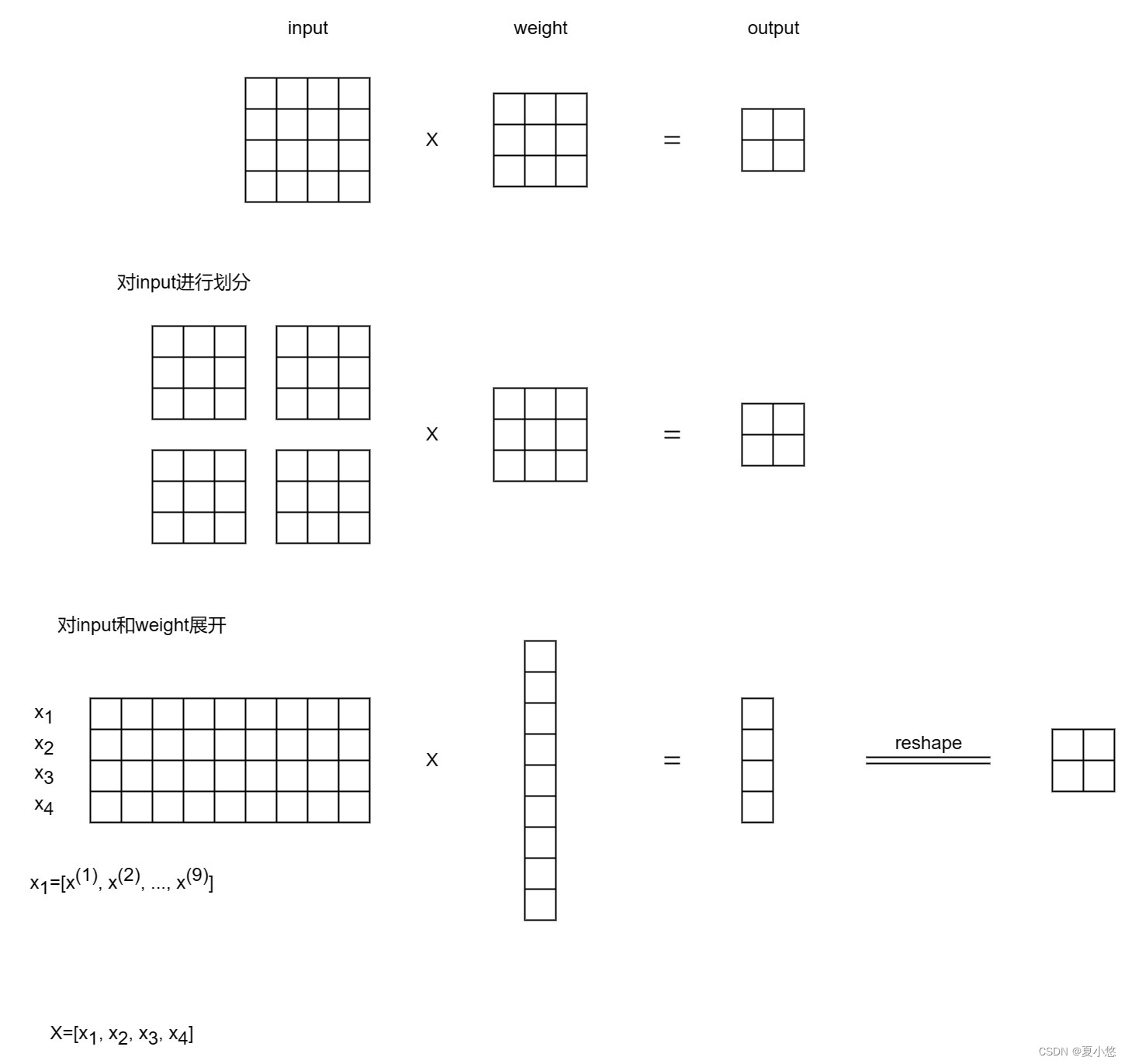

6.1 input为单通道，weight为单通道(输出)

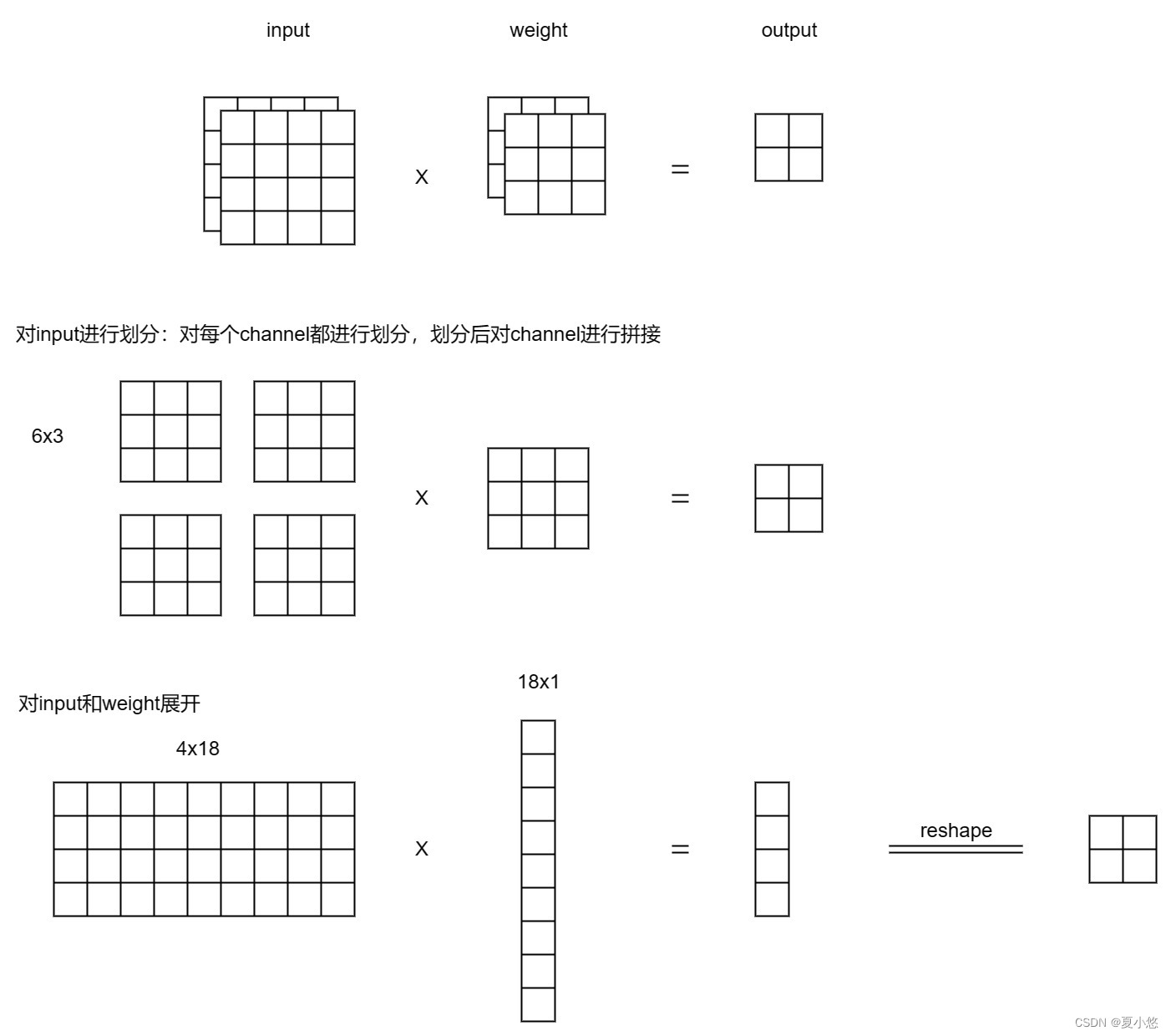

6.2 input为多通道，weight为单通道(输出)

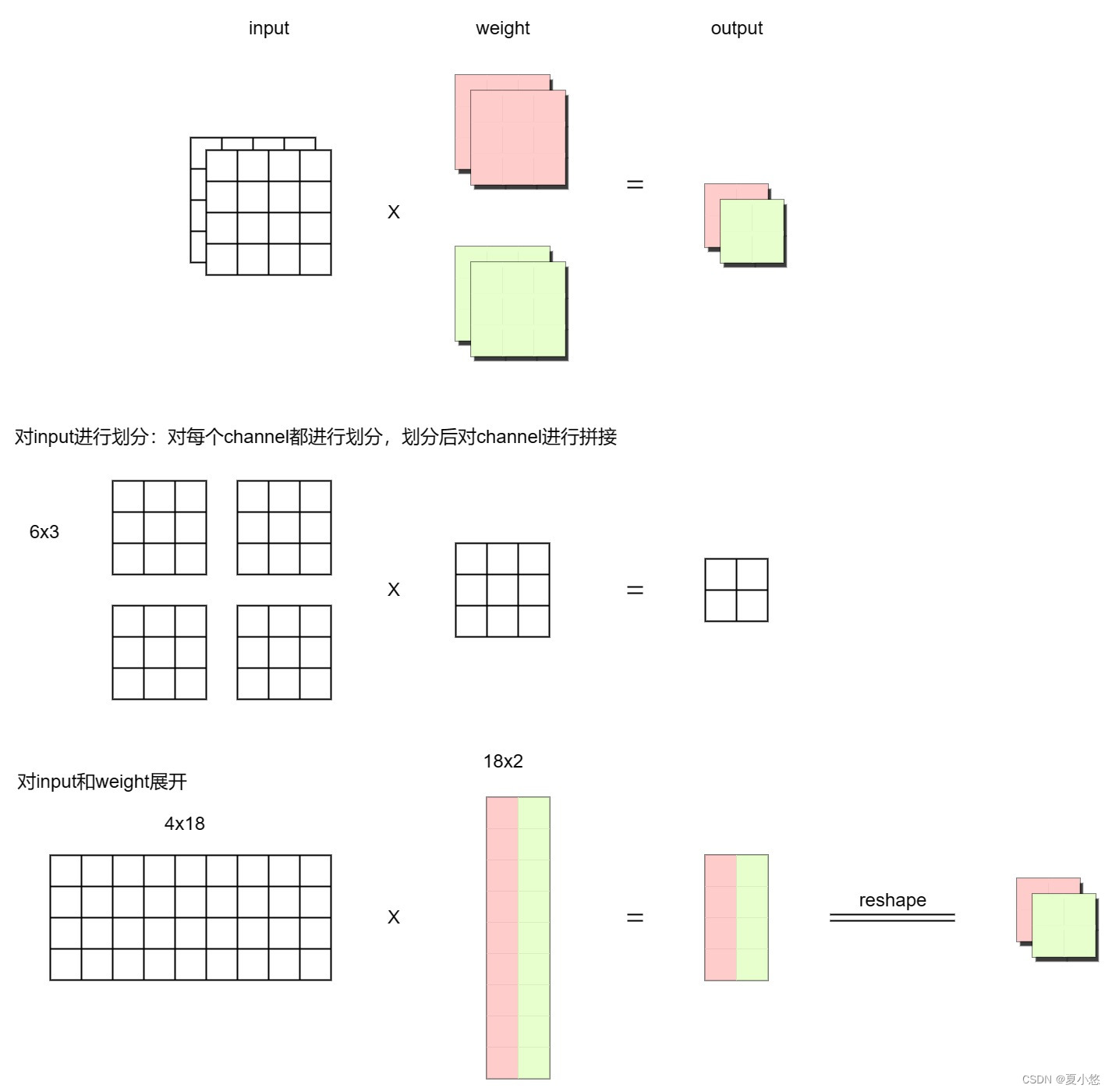

6.3 input为多通道，weight为多通道(输出)

结束语

  本篇博客主要介绍了TNN的基本使用、量化工具的使用以及手动实现单算子卷积推理，除了浮点卷积推理外，8bit定点卷积推理也有实现，不过目前的结果还没有对上，后续再进行补充8bit定点卷积推理的实现代码。
